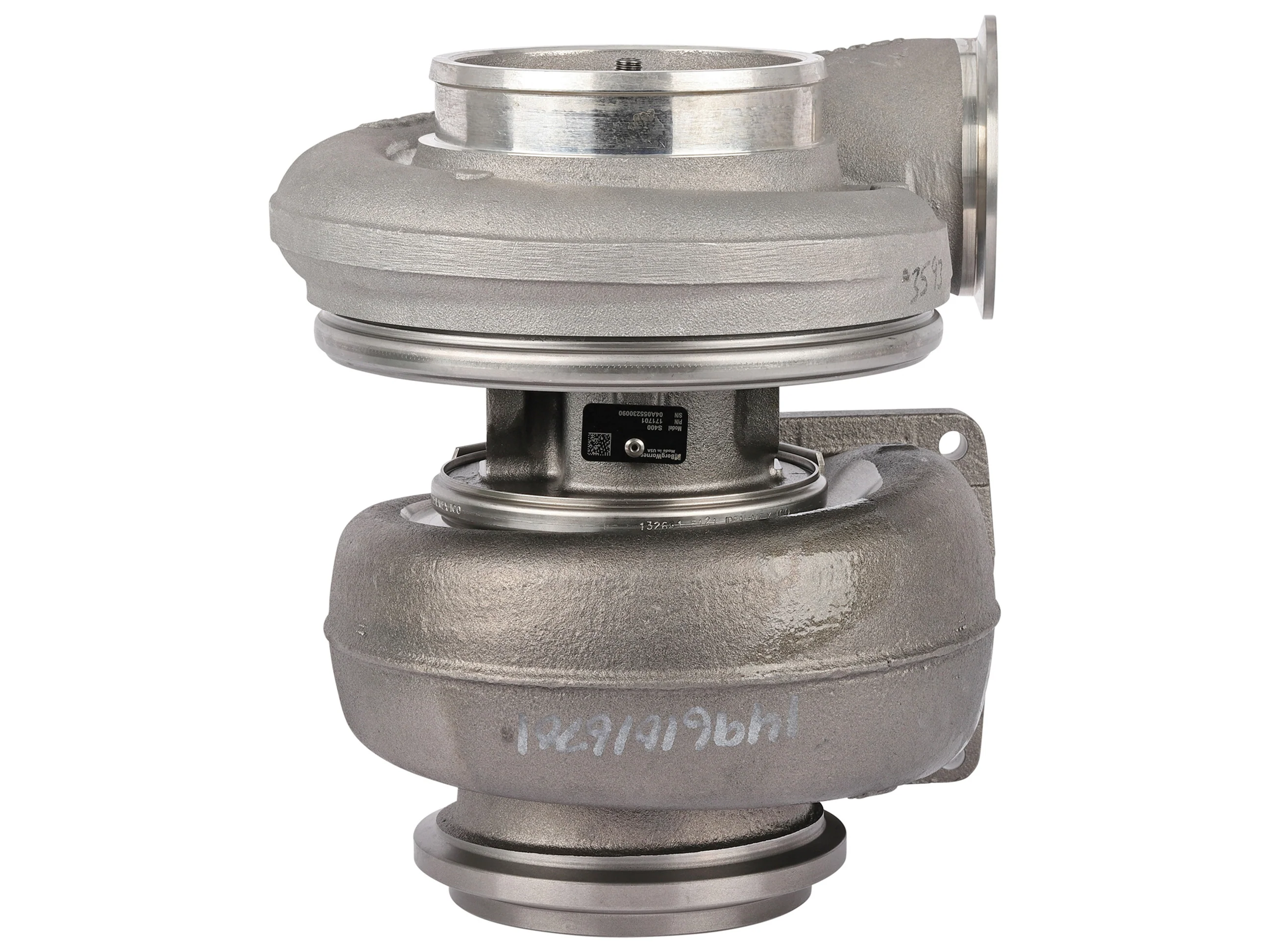

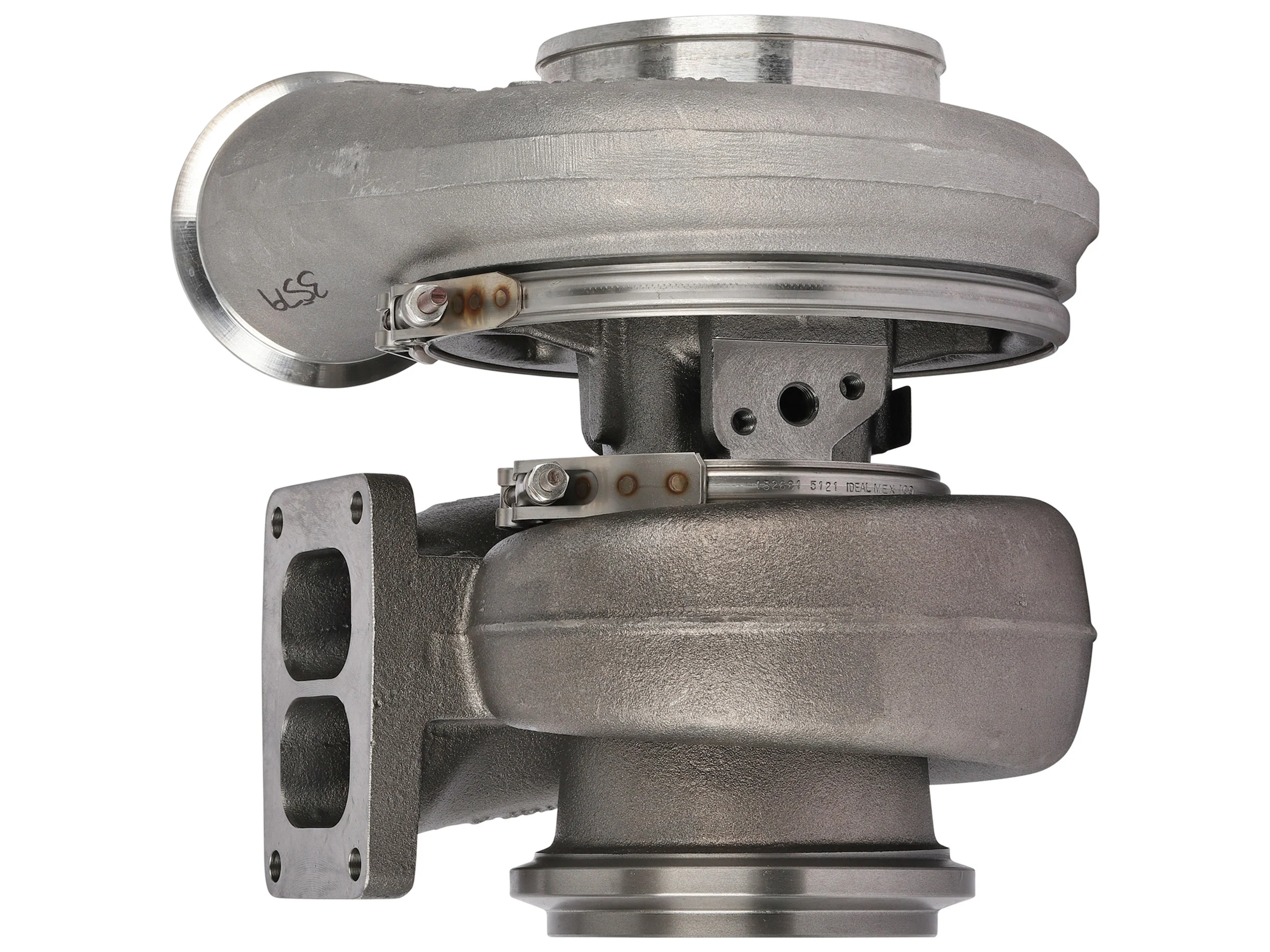

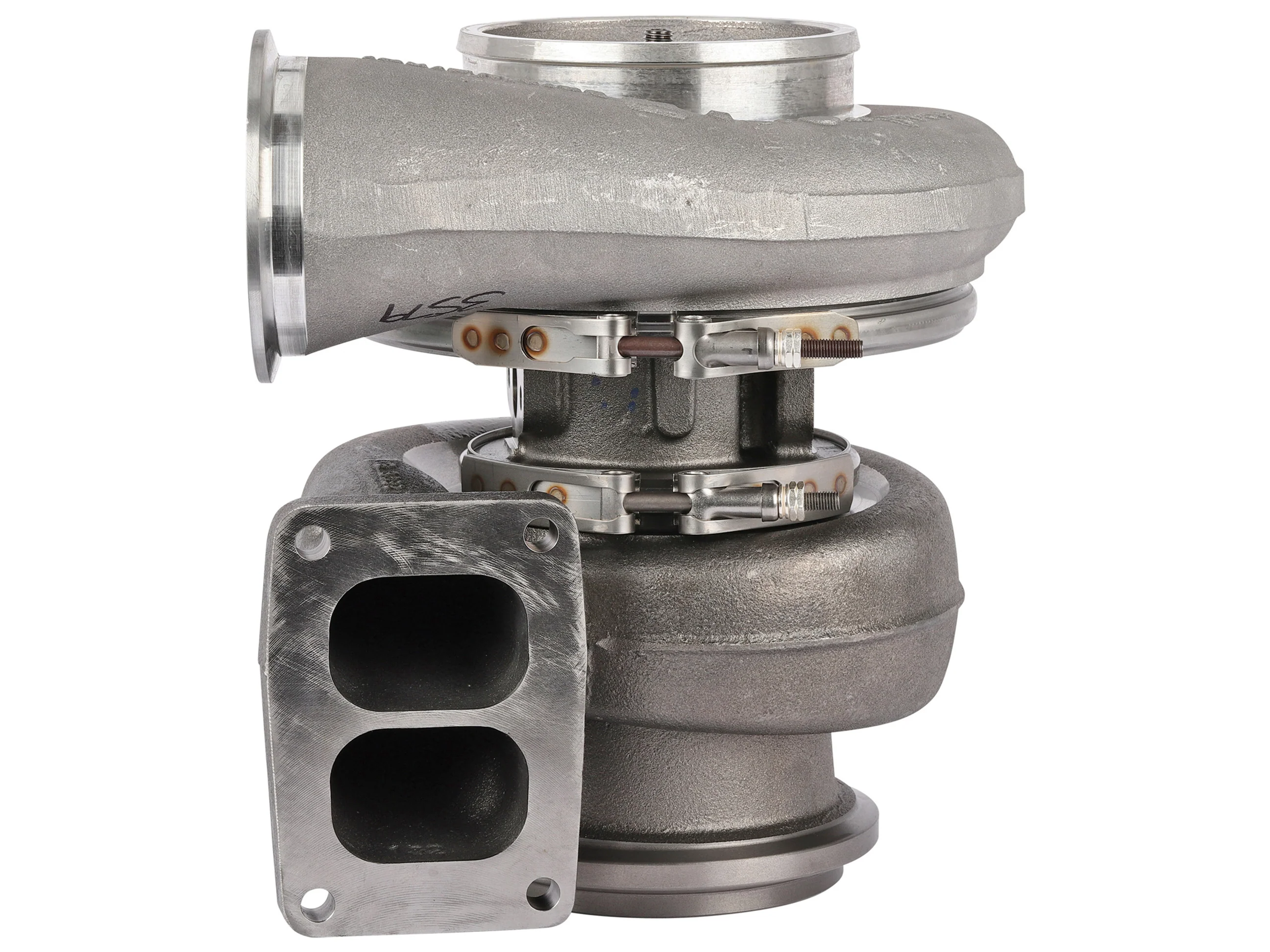

BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 171701
Interchangeable Number: 171701R, 466713-0001, 466713-5001, 466713-5001S, 466713-0002, 466713-5002, 466713-5002S, 466713-0003, 466713-5003, 466713-5003S, 471701
OEM Number: 098TC24136000, 1080008R, 23515635, 23515636, 23516431, 2585837C91, E23515636, R23515635, R23515636, R23516431
Turbo Model: S400S061, S400SX4
Manufacturer: BorgWarner - 3K - Schwitzer

Year: 2000-08
Engine: Series 60
Engine Manufacturer: DDC-MTU, Detroit Diesel
Displacement: 12.7L, 12700 ccm
Fuel: Diesel
Power: 350/354 kW, 470/475 HP
Speed: 2100 RPM

Back Plate: 167783
Bearing Housing: 171695 (Oil Cooled)(1900011493)
CHRA: 171699 (176652, 171699R)
Compressor Housing: 171688
Compressor Wheel (Hipped): 171692
Compressor Wheel Inducer: 2.80 in (71.08 mm)
Compressor Wheel Outside Diameter: 3.94 in (100.17 mm)
Gasket Kit: 318417
Heat Shield: 167789 (2030016012)
Service Kit (360° Thrust Bearing): 14007110003 (1400-711-0003)
Service Kit (Standard): 176391 (318397)(1253400750, 5000030020)
Turbine A/R: 1.32
Turbine Housing Flange: T6 Inlet
Turbine Housing Inlet Configuration: Volute, Twin Flow
Turbine Housing: 171698
Turbine Wheel Exducer: 3.47 in (88.05 mm)
Turbine Wheel Outside Diameter: 3.77 in (95.70 mm)
Turbine Wheel: 171689

PRODUCT FEATURES:

- Twin hydrodynamic journal bearings.
- Extended tip technology compressor wheel.
- Twin scroll turbine housing.
- Adjustable compressor and turbine housing orientation.
- Compressor cover recirculation grooves.

NOTE:

- Complete replacement turbo.
- Internal parts not interchangeable.

Application:
2000-08 Industrial with Detroit Diesel Series 60 Engine
2000-08 Navistar, International Harvester Truck with DDC-MTU Series 60 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
