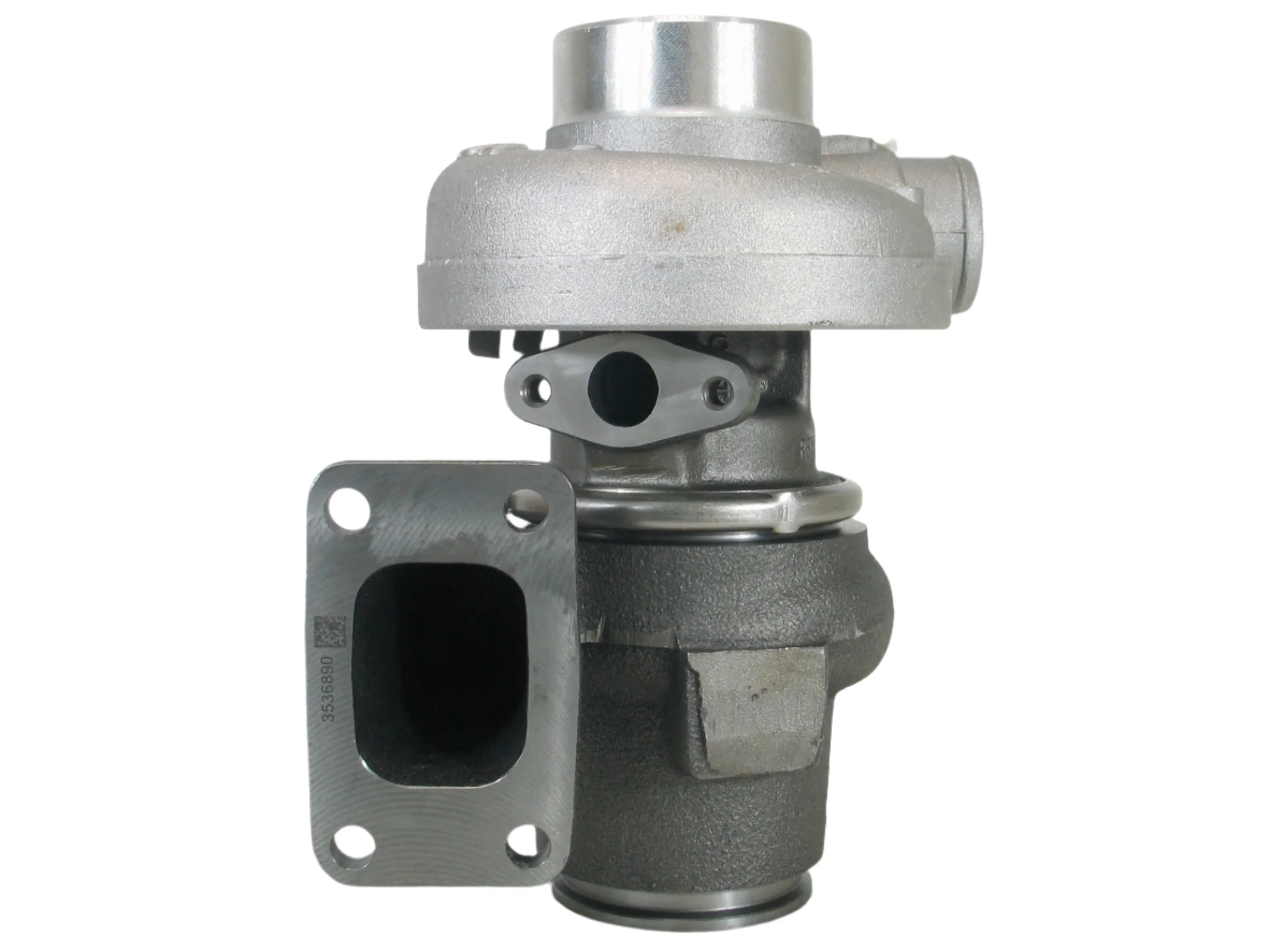

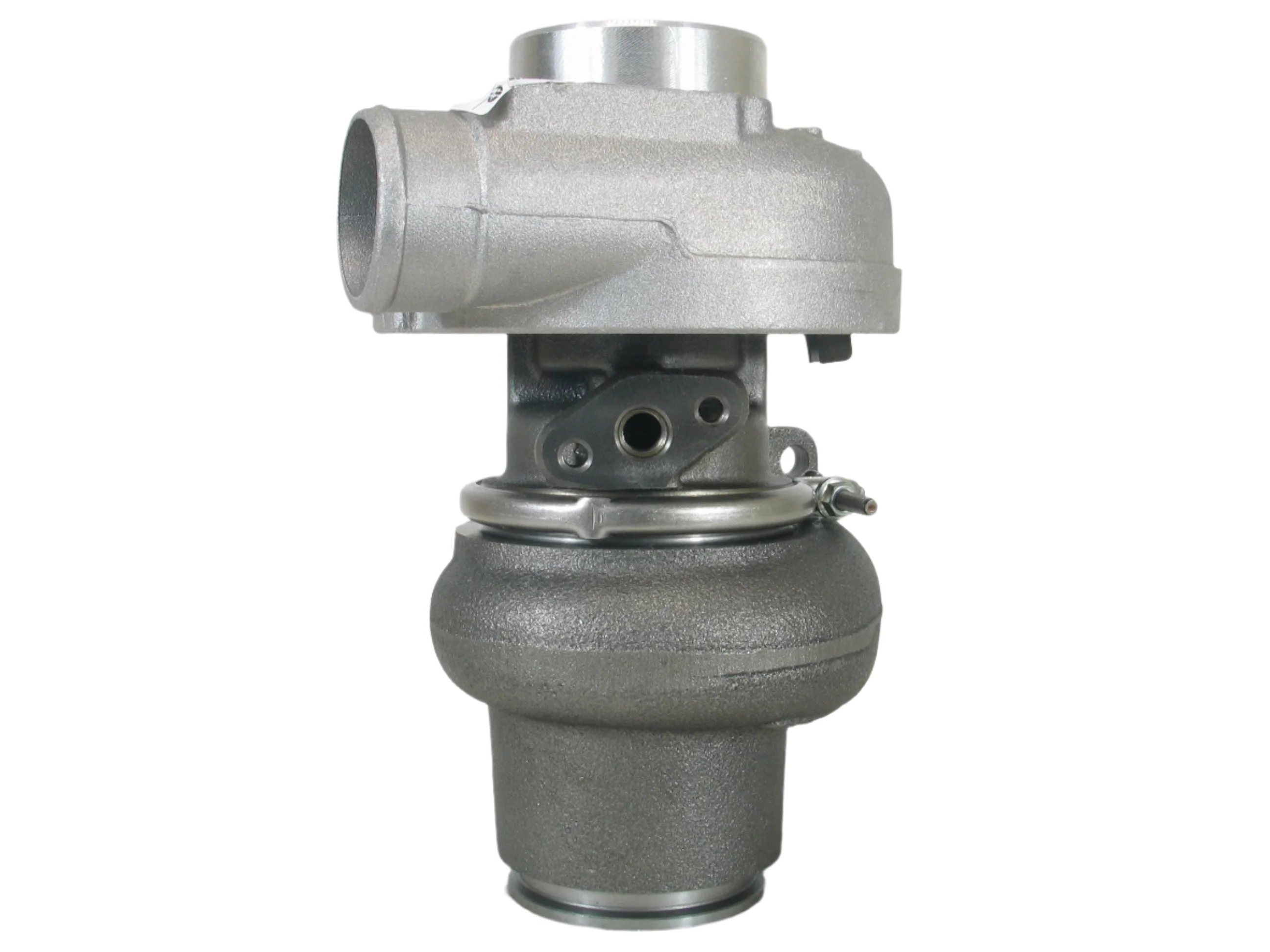

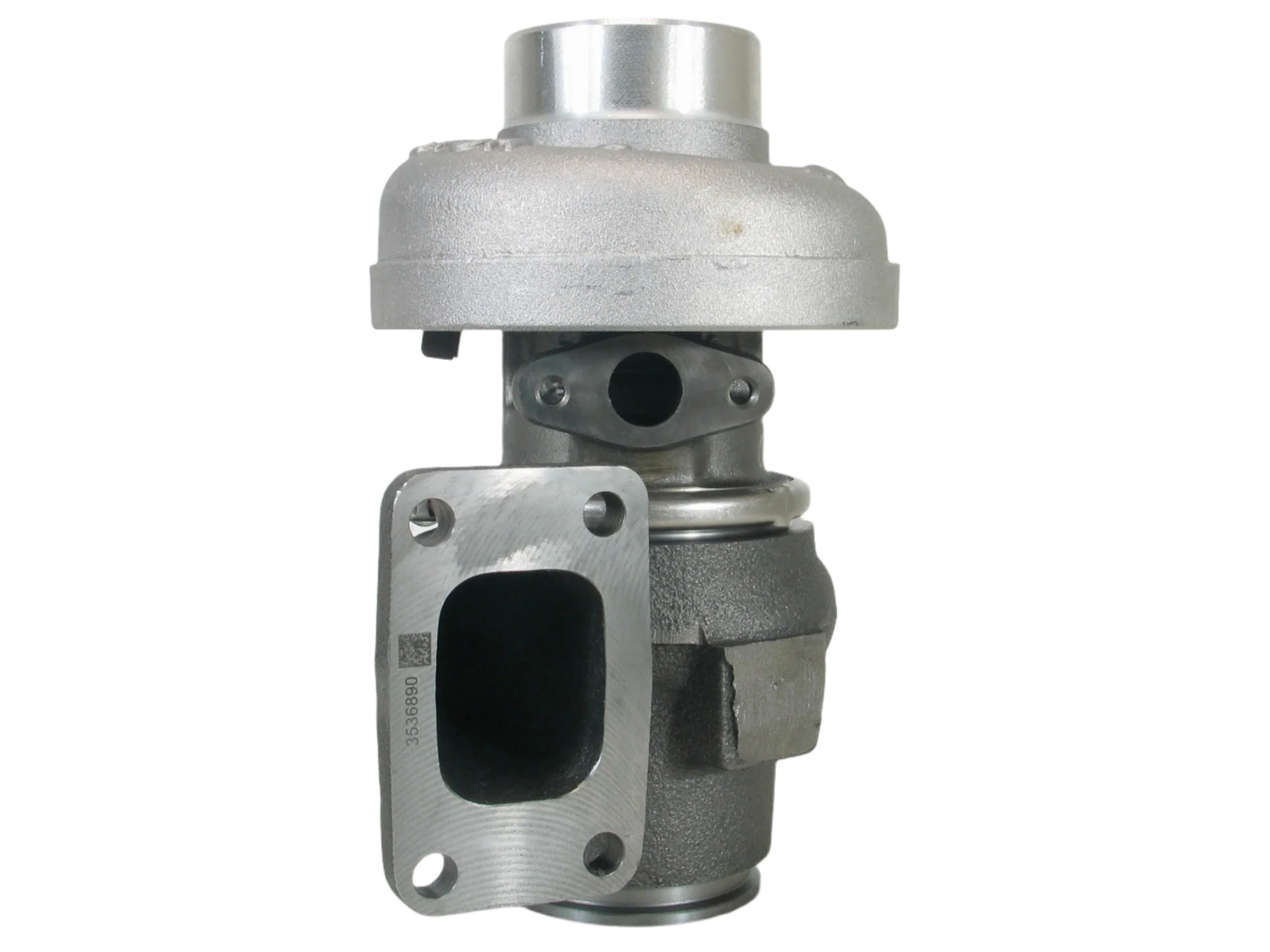

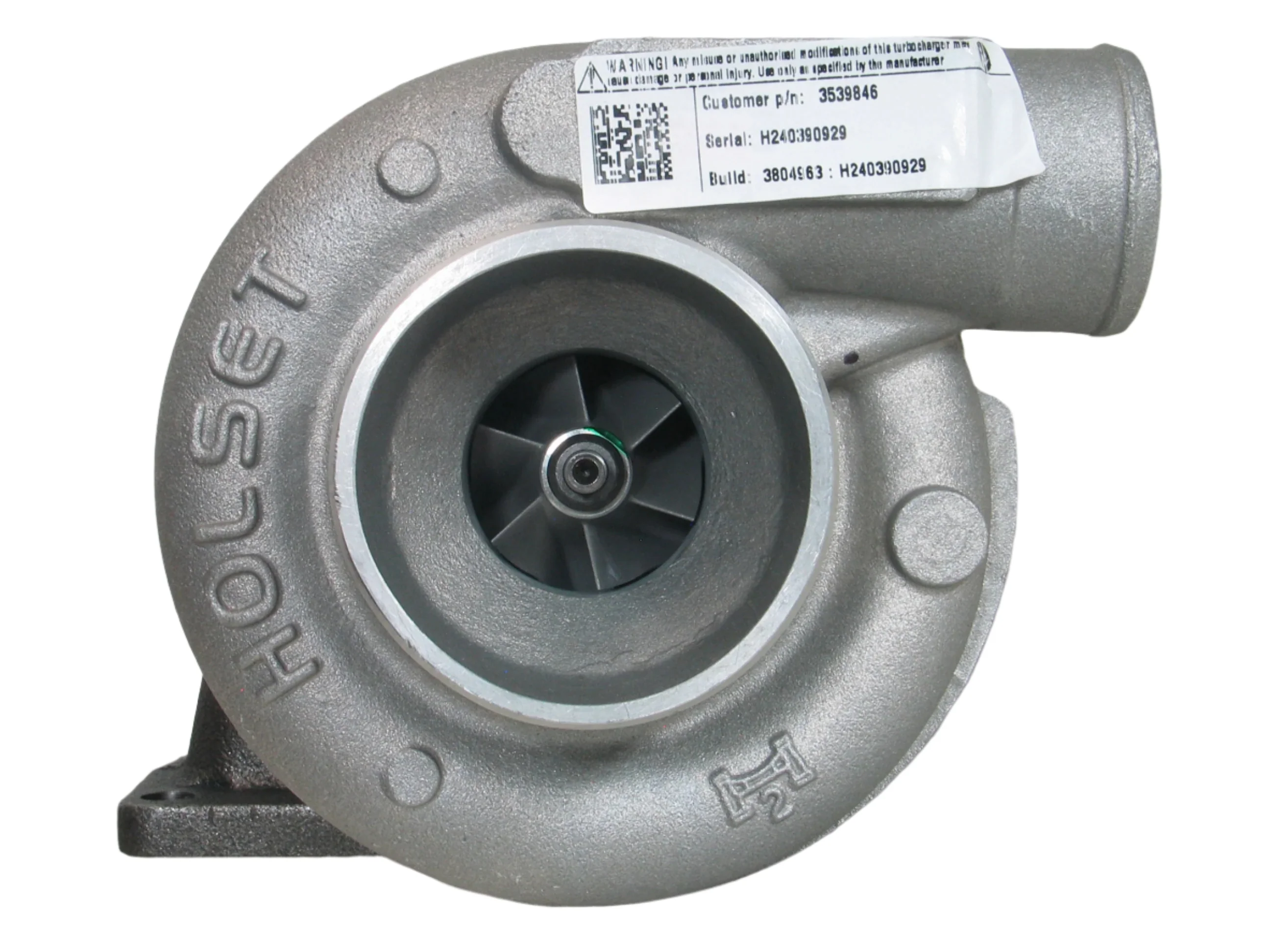

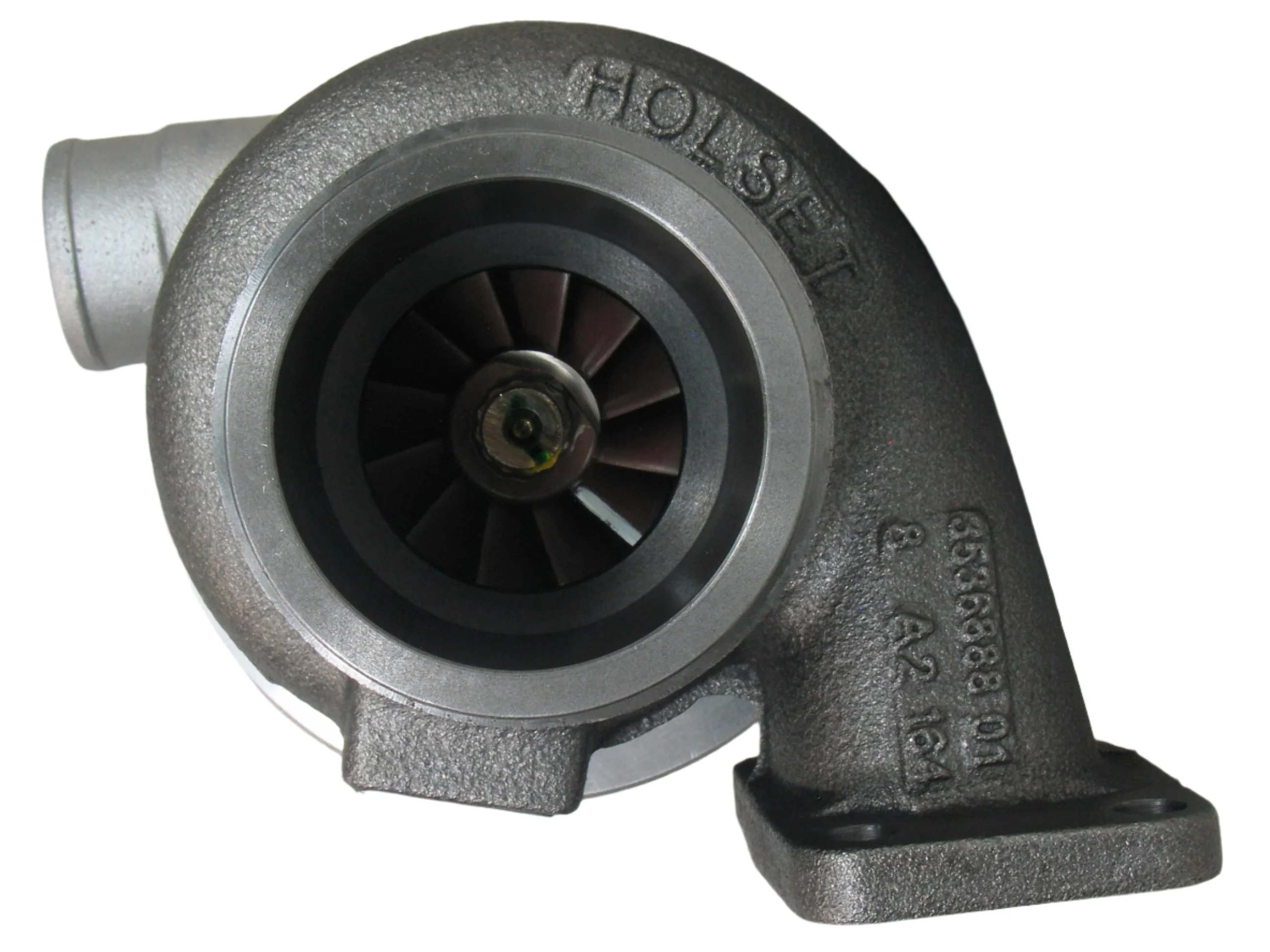

NEW Holset HX30 Turbo Komatsu PC120-6 Excavator S4D102 Industrial 4BT 3539846
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3539803
Interchangeable Number: 3539846H
OEM Number: 3539846, 3590022, 3804963, 6732-81-8052, 6732818052, 6732-81-8102, 6732818102
Turbo Model: HX30, HX30-Q6819A/B08JX33N
Manufacturer: Holset
Year: 1997-
Engine: 4BT, 4BT-110, S40102-4BT110, S4D102
Engine Manufacturer: Cummins
Displacement: 3.9L, 3900 ccm
Fuel: Diesel
Power: 110 HP
Angle α (Compressor Housing): 201/340°
Angle β (Turbine Housing): 20/360°
Back Plate: 3530923 (1154351300)
Bearing Housing: 3539898 (4030801)
CHRA: 4027483 (3580573, 3580573H)
Compressor Housing: 3539806 (3539806H)
Compressor Wheel: 3592013 (Ind. 44 mm, Exd. 73 mm, Trim 36, 6+6 Blades, Super Back)
Gasket (Oil Drain): 3519805H
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket Kit: 3545575 (3545575H, 1900100057)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit (Major): 3575205 (3575205H, 4027485)(1153030750)
Repair Kit (Minor): 5451881H
Turbine Housing: 3536890 (3536890H)
Turbine Wheel: 3539805 (Ind. 40.1 mm, Exd. 67.97 mm, 12 Blades)(1153035436)
Turbocharger Kit: 3539846H
V-Band Kit: 5451882H
Application:
1997- Komatsu Industrial with Cummins 4BT, 4BT-110 Engine
1997- Komatsu PC120-6 Hydraulic Excavator with S4D102 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
