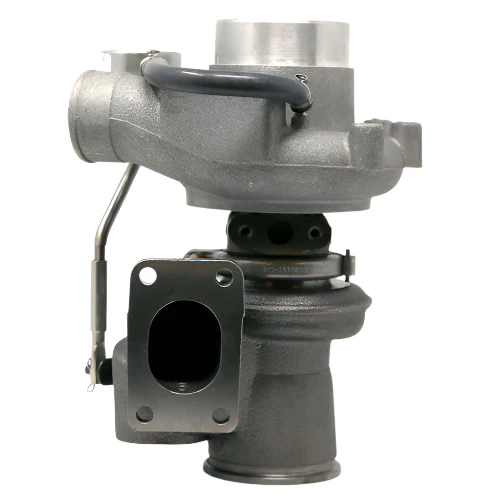

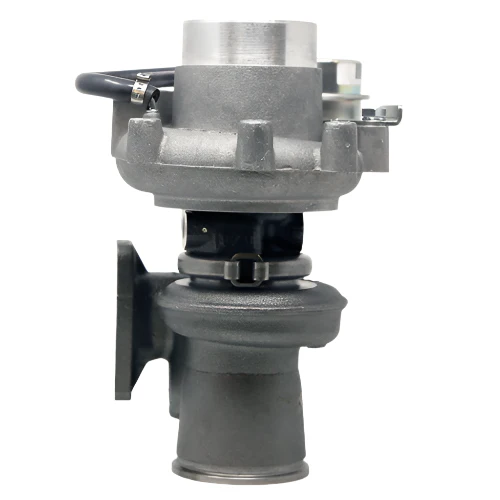

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 3596586
Interchangeable Number: 3538834, 3538993, 3596596H
OEM Number: 3596596, 3806298, 380629800
Turbo Model: HX25W
Manufacturer: Holset

Year: 1997-01
Engine: 4BTA
Engine Manufacturer: Cummins
Displacement: 3.9L, 3900 ccm
Fuel: Diesel
Power: 116 HP

Angle α (Compressor Housing): 201°
Angle β (Turbine Housing): 360°
Actuator: 4039025
Back Plate: 49135-00044 (1153025300)(S/Back)
Bearing Housing: 49189-26400 (1153025450)(Oil Cooled)
CHRA: 3539071 (1153025901)
Compressor Wheel: (Ind. 38.76 mm, Exd. 55.88 mm, 6+6 Blades, Super Back)(1153025400)
Gasket (Oil Outlet): 210243 (Gasket Paper)
Gasket (Turbine Inlet): 210218 (Stainless Steel)
Gasket (Turbine Outlet): 210889 (Stainless Steel)
Heat Shield: 49183-19300 (11530253408)
Repair Kit: (1153025751)
Turbine Wheel: 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1153025435)

Application:
1997-01 J. I. Case Agricultural with Cummins 4BTA Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
