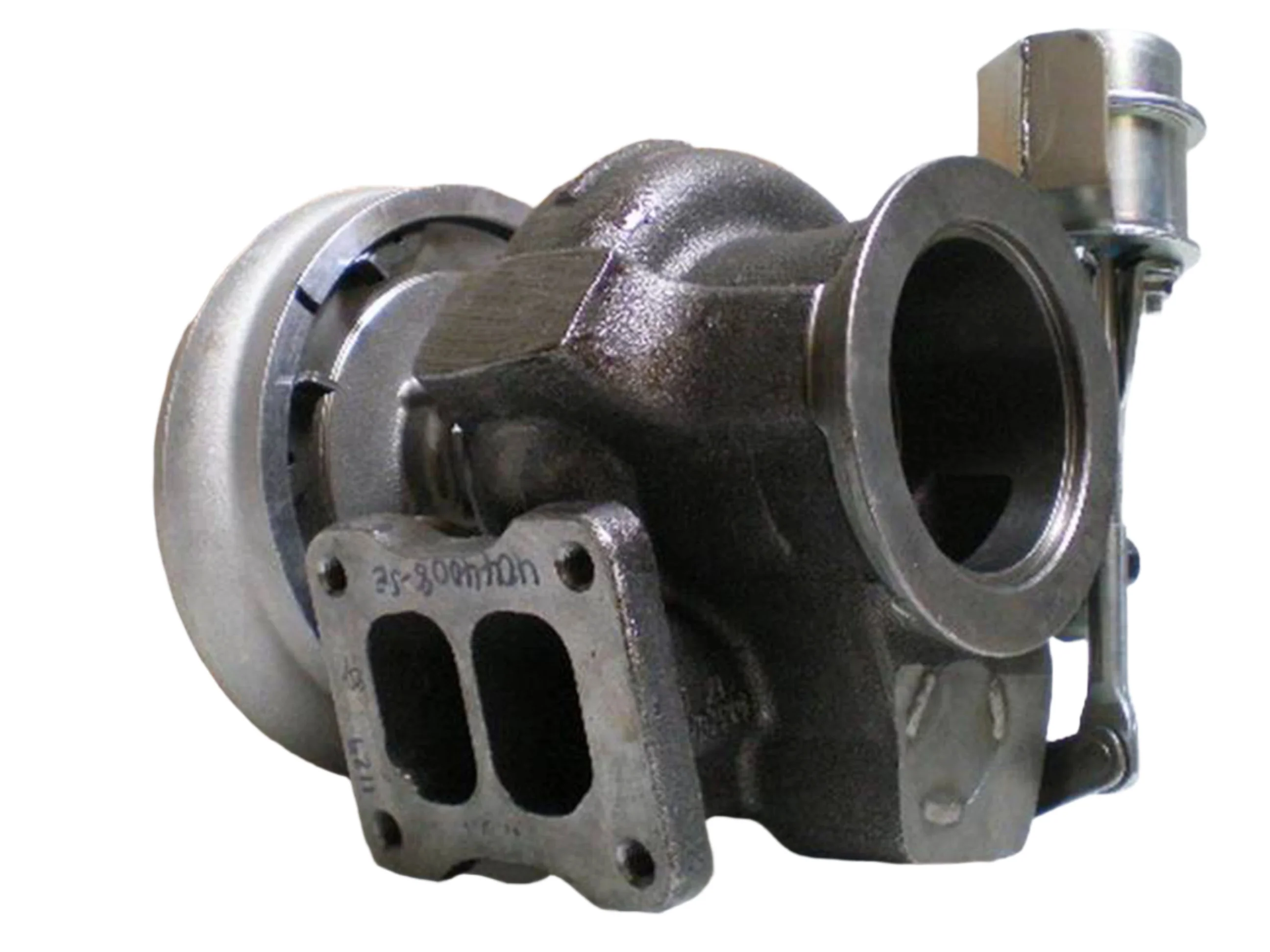

NEW OEM Holset HX40W Turbo Volvo Construction Equipment Truck MD9 Diesel 4031130
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 4043806
Interchangeable Number: 403113000, 4031130H, 4031130HX
OEM Number: 11129541, 11129601, 4031130, 4034101, 4043808, 5553198, 9011129541, 9011129601, E9011129541, E9011129601, VOE11129601
Turbo Model: HX40W
Manufacturer: Holset
Engine: MD9
Engine Manufacturer: Volvo
Fuel: Diesel
Angle α (Compressor Housing): 86°
Angle β (Turbine Housing): 224°
Actuator Kit (Pneumatic): 4030861 (4030861H)
Back Plate: 3530923 (1154351300, 1800016009)
Bearing Housing: 4030886 (3537112, 3593878, 4038197)(Oil Cooled)
CHRA: 4030874 (4030874H, 4032651, 4031325, 4032695, 4027949)
Compressor Wheel: 4035380 (4035879, 4035380H, 4044562)(Ind. 60 mm, Exd. 84.9 mm, Trim 5.84, 7+7 Blades, Super Back)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 129120, 201048, 3500682, 3709738, 3519763, 9738, 9988, 1S4810, 210060-0000, 51914, 148062, 311585, 210018-0000)(1900000025)
Gasket (Top Turbine Cover): 3537960
Gasket (Turbine Inlet): 409039-0000 (210022-0000)
Gasket Kit: 3545575 (3800196H, 1900100057)
Heat Shield: 3519304 (3519302)(1152301340, 2030016031)
Repair Kit (Major): 4027448H (4027448, 3575169, 4032051)(1153035751, 5000020021)
Turbine Housing: 4044008H
Turbine Wheel: 4039489 (3596226, 4050572)(Ind. 76 mm, Exd. 64 mm, Trim 10.16, 10 Blades)
Turbocharger Kit: 4031130H/4031130HX
Application:
Volvo Construction Equipment, Truck with MD9 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
