BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gasket.

Fits the following:

Part Number: 4042735
Interchangeable Number: 3531038H, 3531696, 3531810H, 3532210, 3538881, 3538883, 3593675, 3596629, 3596633H, 3596980, 3598897, 3599479, 3802233RX, 3802391RX, 380288200, 3802882NX, 3802882RX, 4033074H, 4033076H, 4033174H, 4033386H, 4033671H, 4038211H, 4038598, 4039043, 4039044H, 4039331H, 4039504, 4039631, 4039632, 4043956, 4043957H, 4045700H, 466575-0001, 466575-5001, 466575-5001S, 4955158NX, 4955158RX, 5452087, 3769130, 3775808, 3769129, 4033861H

OEM Number: 3531038, 3531810, 3538882, 3538884, 3539009, 3539010, 3539464, 3592202, 3593676, 3596632, 3596633, 3596990, 3596993, 3599480, 3802233, 3802391, 3802881, 3802882, 4025153, 4025327, 4033074, 4033386, 4033671, 4035037, 4035038, 4035297, 4035883, 4036550, 4036812, 4038211, 4039044, 4039331, 4039332, 4039333, 4039503, 4041427, 4043245, 4043888, 4043957, 4045700, 4048404, 4089465, 4955158, 4955172, 4955694, 504388532, 5801471392

Turbo Model: HX35W
Brand: Holset

Engine: 6BT, 6BTA, ISB6, ISB6, QSB, NEF 6CYL 14V
Engine Manufacturer: Cummins, Iveco
Displacement: 5.9L (6BT, 6BTA, ISB6, ISB6 Euro 4), 6.7L (QSB)
Fuel: Diesel

Angle α (Compressor Housing): 320°
Angle β (Turbine Housing): 180°
Actuator Kit (Pneumatic): 4032046H
Actuator: 3593568
Back Plate: 3596448
Bearing Housing: 4031430 (403143000)
CHRA: 4034166H
Compressor Housing: 3595195H
Compressor Wheel: 3599649 (3599693)(Ind. 53.97 mm, Exd. 78 mm, 7+7 Blades, Super Back)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 210060 (Paper)(311585, 148062)

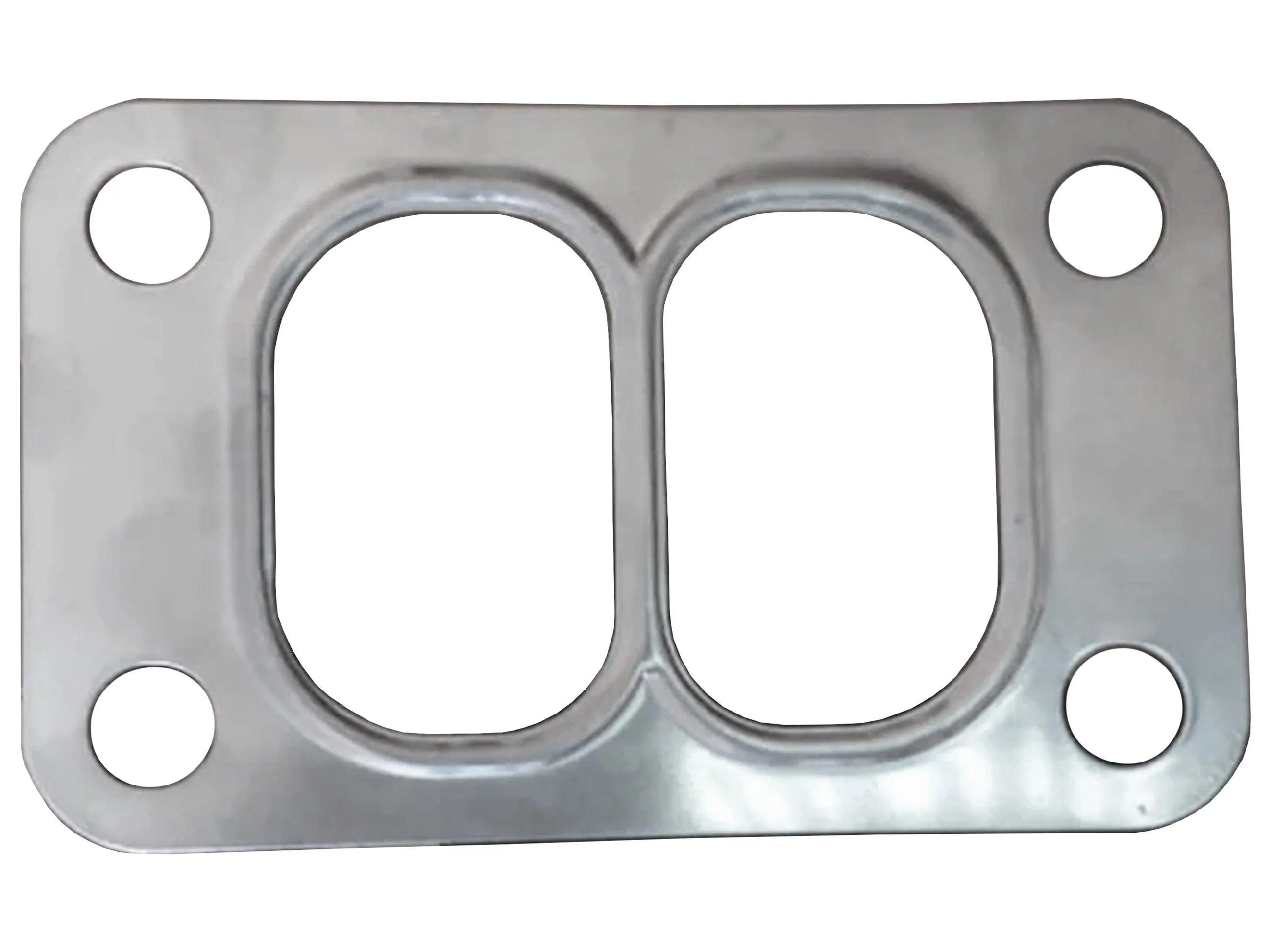

Gasket (Turbine Inlet): 210662 (Inox Steel)
Gasket (Turbine Outlet): 210245 (3535001H)(Inox Steel)
Gasket Kit: 4032409H/3545575 (1900100057)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit (Major): 4027448H
Retaining Ring: 3533163H
Turbine Housing Wastegate: 4030598/3532299
Turbine Wheel: 3595832 (Ind. 70 mm, Exd. 60 mm, 12 Blades)(1153035435)
Turbocharger Kit: 4033174H

Application:
1992-97 Dodge Ram with 5.9L Cummins Engine (Upgrade for Non-Wastegated Turbo)
1998-00 Dodge Ram with Cummins ISB6 Engine
2002-03 Freightliner FL60, FL70 with Cummins ISB Engine
2002-05 Freightliner Motor Home with Cummins ISB Engine
2005-12 Truck with Cummins ISB6 Engine
Chrysler with Cummins 6BT Engine
DAF Truck with Cummins ISB6 Engine
Dodge with Cummins 6BT Engine
Industrial with Cummins 6BTA, QSB Engine

FIAT Wheel Loader GENSET with IVECO NEF 6CYL 14V engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
