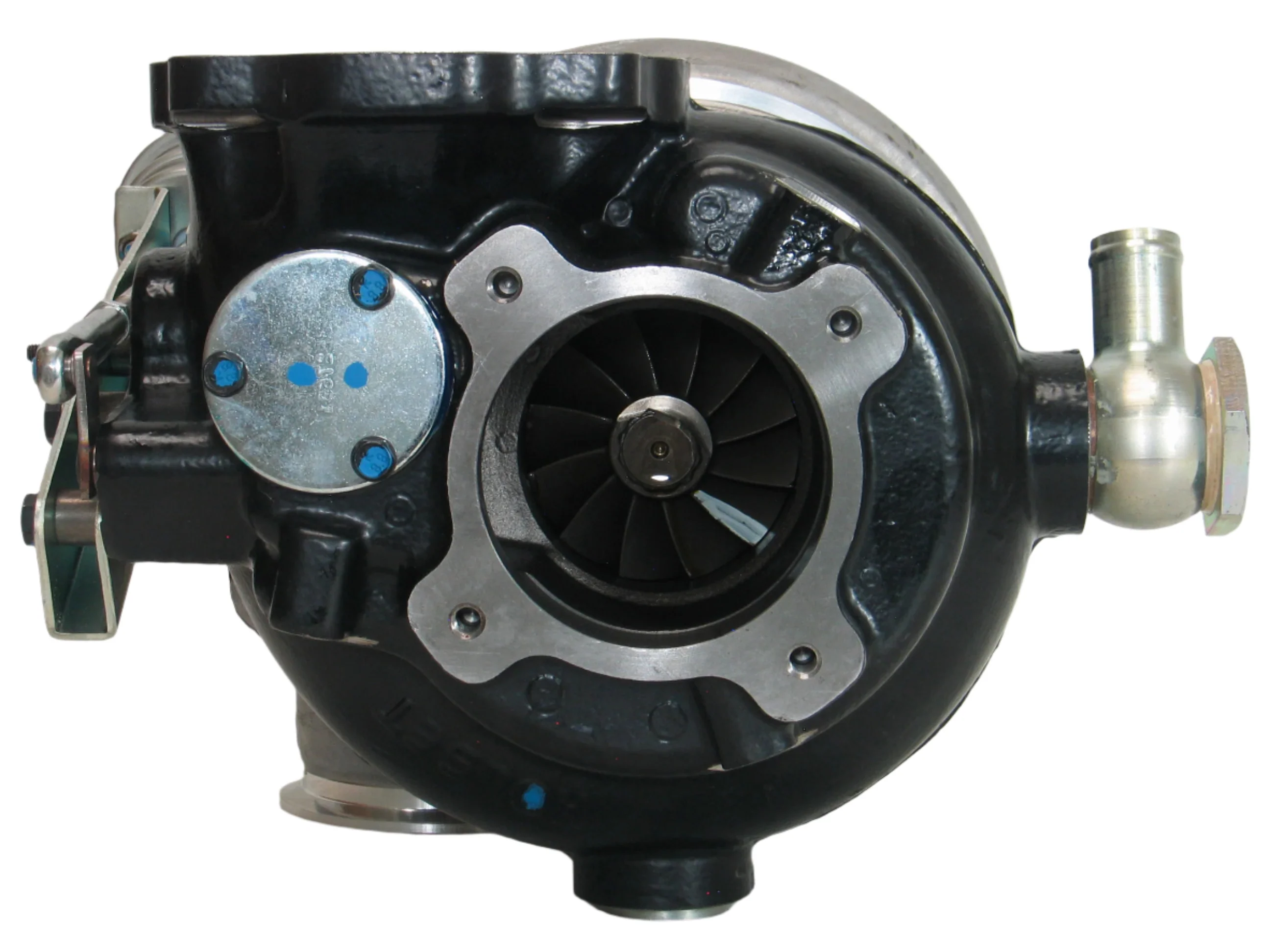

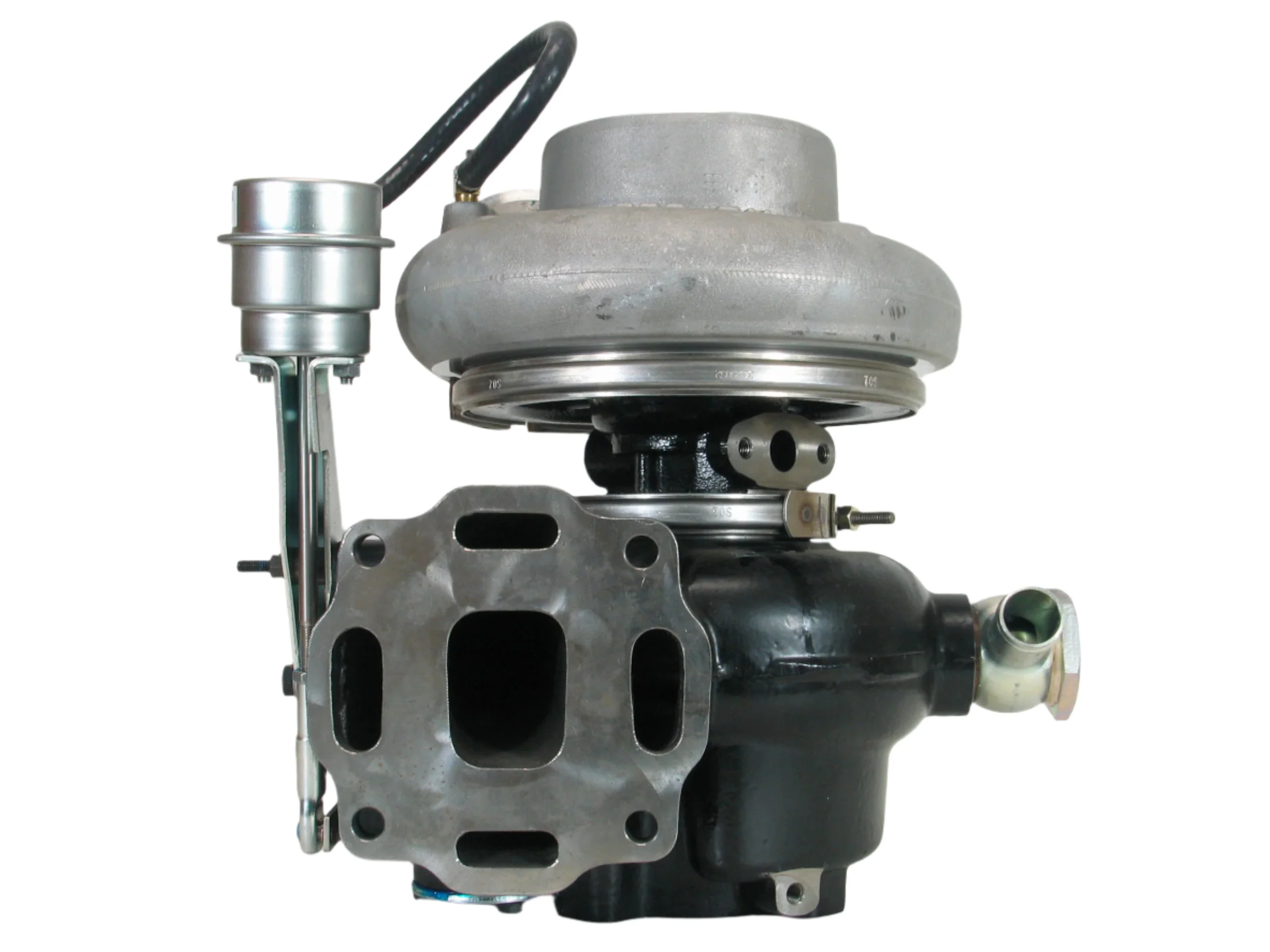

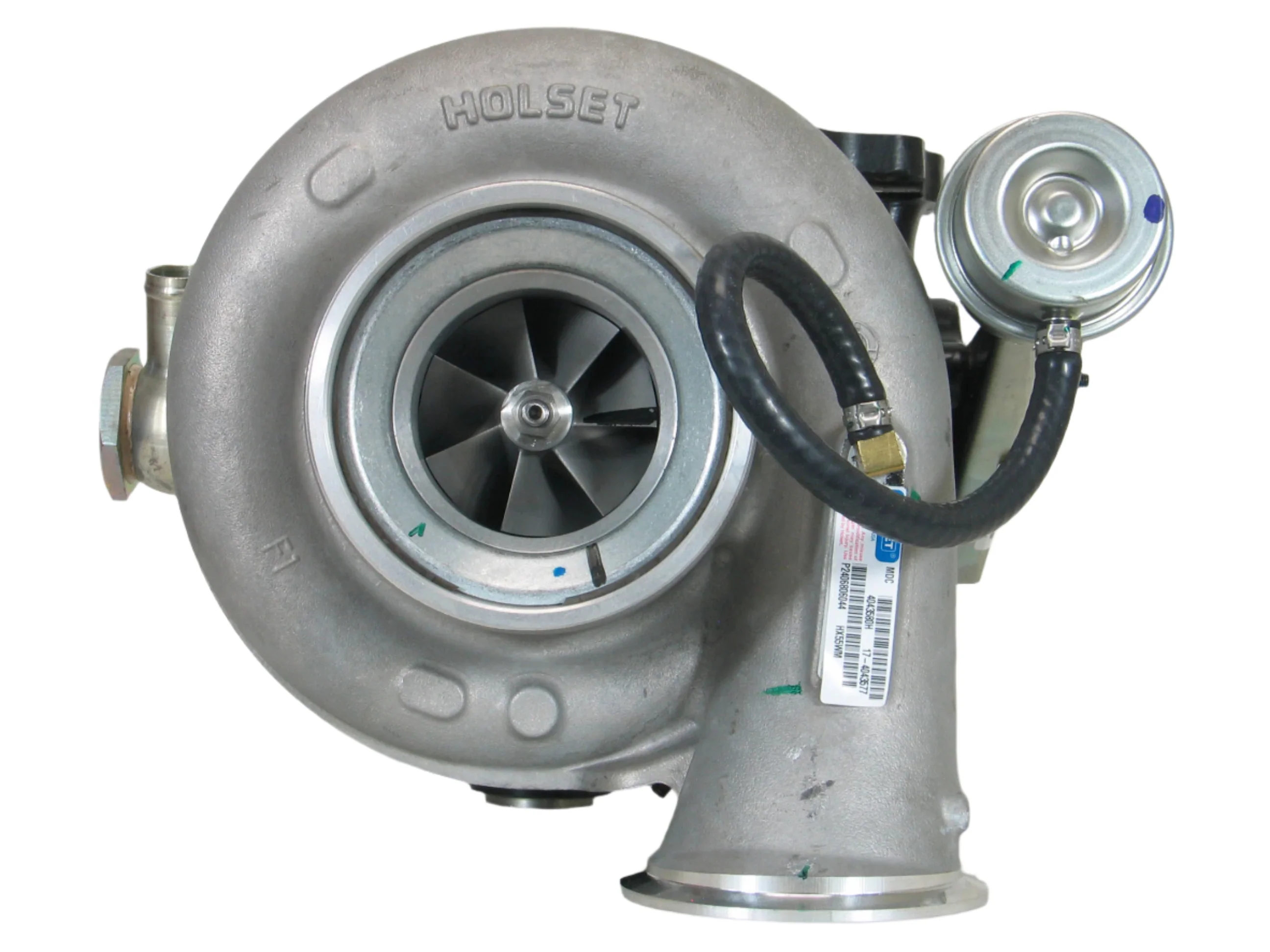

NEW OEM Holset HX55WM Turbo Marlin Marine Cummins Pegasus QSC8.3 4043580 4043577
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4043577
Interchangeable Number: 4043580H, 495550000
OEM Number: 4043580, 4955500
Turbo Model: HX55WM
Manufacturer: Holset
Year: 2006-
Engine: Pegasus, QSC8.3
Engine Manufacturer: Cummins
Displacement: 8.3L
Fuel: Diesel
Angle α (Compressor Housing): 310°
Angle β (Turbine Housing): 320°
Back Plate: 3528096 (352809600)(1153055300, 1800016024)
Bearing Housing: 3590231 (4039258, 3598984)(Oil Cooled)
CHRA: 4030929 (4030929H, 4030929HX)
Compressor Wheel: 3592939 (3592939H)(Ind. 70.24 mm, Exd. 101.39 mm, Trim 7+7 Blades, Super Back)
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545575H
Heat Shield: 3533038 (3529846, 353303800, 352984600)(1153055340)
Repair Kit (Major): 3580762 (3580762H, 3575181, 358076200, 357518100)(1153055750, 5000020023)
Split Ring Seal (Compressor): 3758848H
Turbine Housing: Water Cooled

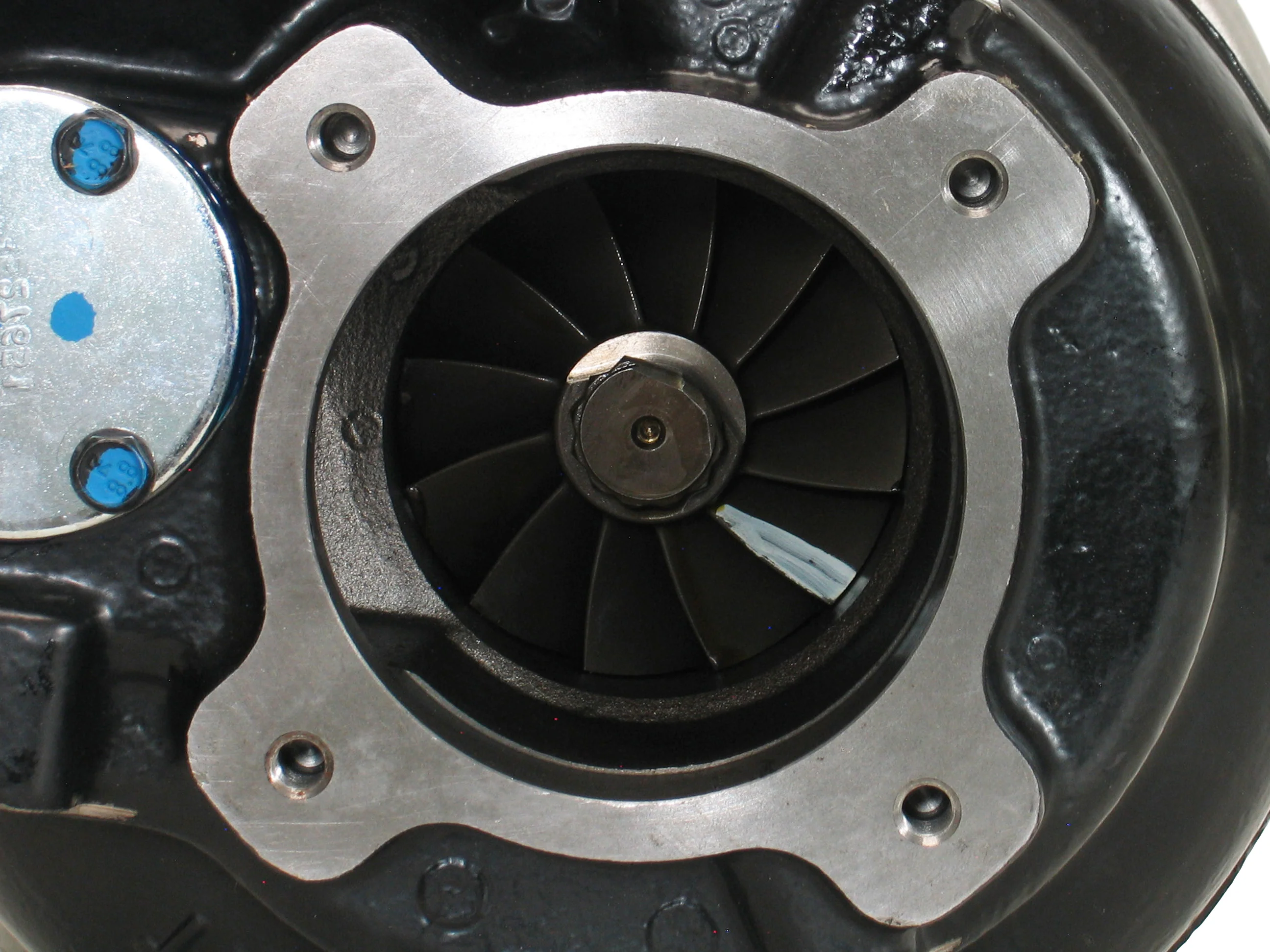

Turbine Wheel: 3535983 (3535983H, 353598300)(Ind. 85.8 mm, Exd. 76.95 mm, Trim 12.85, 12 Blades)(1153055436)
Turbocharger Kit: 4043580H
Application:
2006- Marlin Marine with Cummins Pegasus, QSC8.3 Engine

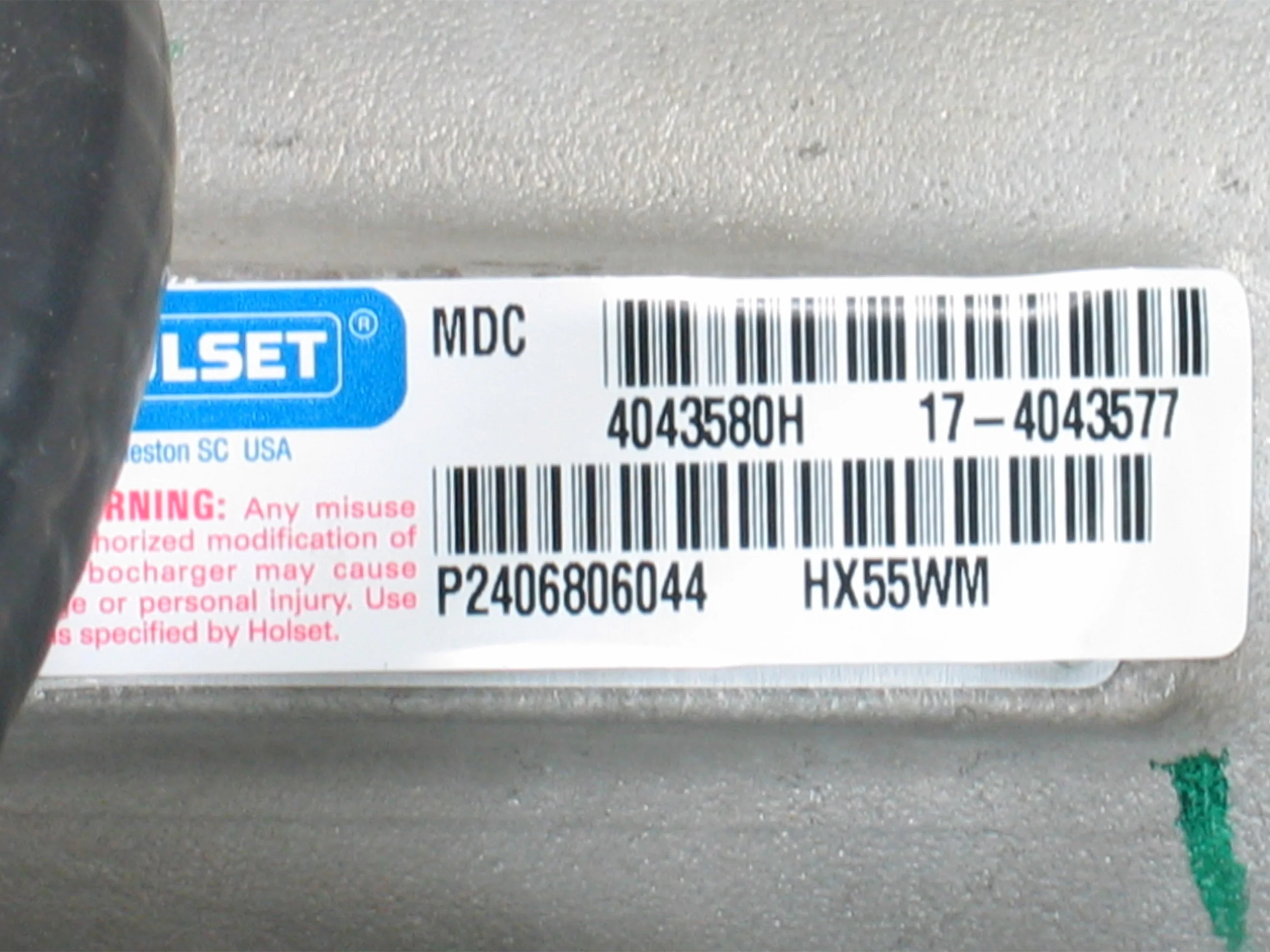

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4043577
Interchangeable Number: 4043580H, 495550000
OEM Number: 4043580, 4955500
Turbo Model: HX55WM
Manufacturer: Holset
Year: 2006-
Engine: Pegasus, QSC8.3
Engine Manufacturer: Cummins
Displacement: 8.3L
Fuel: Diesel
Angle α (Compressor Housing): 310°
Angle β (Turbine Housing): 320°
Back Plate: 3528096 (352809600)(1153055300, 1800016024)
Bearing Housing: 3590231 (4039258, 3598984)(Oil Cooled)
CHRA: 4030929 (4030929H, 4030929HX)
Compressor Wheel: 3592939 (3592939H)(Ind. 70.24 mm, Exd. 101.39 mm, Trim 7+7 Blades, Super Back)
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545575H
Heat Shield: 3533038 (3529846, 353303800, 352984600)(1153055340)
Repair Kit (Major): 3580762 (3580762H, 3575181, 358076200, 357518100)(1153055750, 5000020023)
Split Ring Seal (Compressor): 3758848H
Turbine Housing: Water Cooled
Turbine Wheel: 3535983 (3535983H, 353598300)(Ind. 85.8 mm, Exd. 76.95 mm, Trim 12.85, 12 Blades)(1153055436)
Turbocharger Kit: 4043580H
Application:
2006- Marlin Marine with Cummins Pegasus, QSC8.3 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
