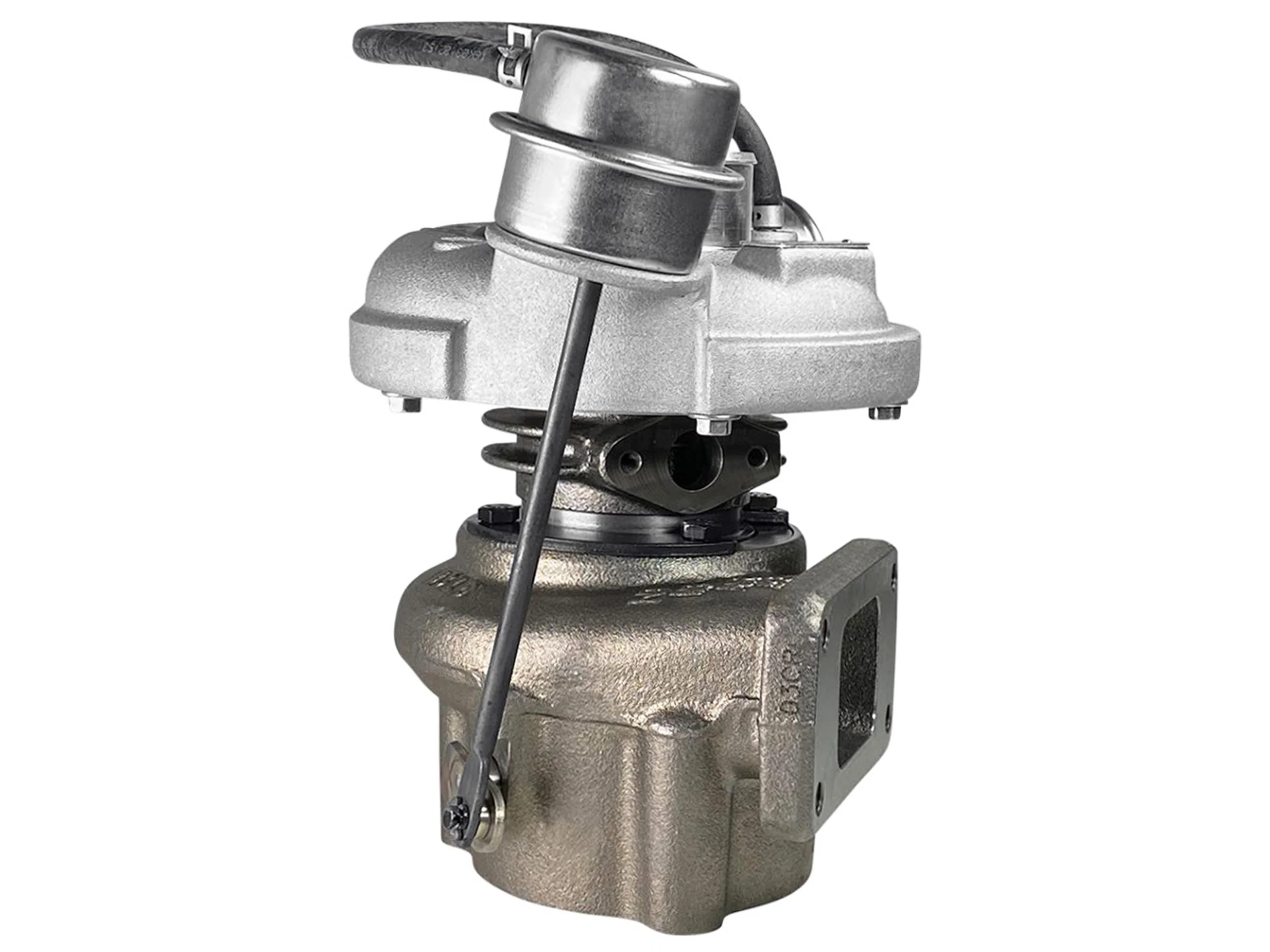

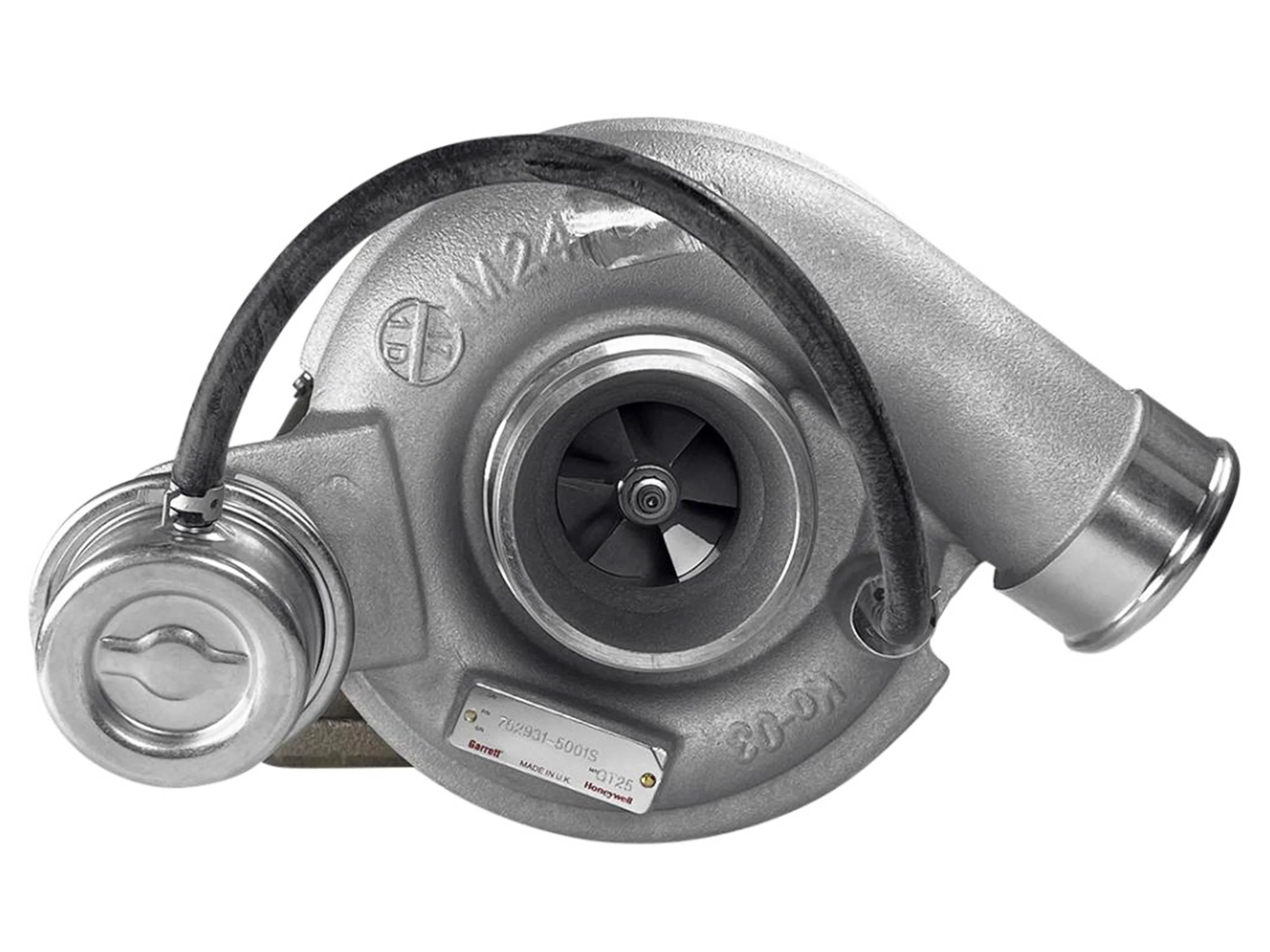

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 762931-5001
Interchangeable Number: 762931-0001, 762931-5001S, 762931-0002, 762931-5002, 762931-5002S, 762931-0003, 762931-5003, 762931-5003S, 762931-0004, 762931-5004, 762931-5004S, 762931-0005, 762931-5005, 762931-5005S, 762931-0006, 762931-5006, 762931-5006S, 762931-0009, 762931-5009, 762931-5009S, 762931-0010, 762931-5010, 762931-5010S, 762931-0011, 762931-5011, 762931-5011S, 762931-0015, 762931-5015, 762931-5015S
OEM Number: 32006047, 32006079, 32006081, 32006082, 32006083, 32006084, 32006085, 32006094, 32006157, 32006159, 32006160, 32006161, 170-025-1551, 1700251551, 320-06047, 320/06047, 32006047
Turbo Model: GT2556S, GT2256S
Manufacturer: Honeywell-Garrett

Year: 2005-
Engine: Scout 4.4, Dieselmax, Dieselmax Euro 2 EPA Tier 2
Engine Manufacturer: JBC
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Emission Standard: Tier 2 Emissions
Fuel: Diesel
Power: 91/99 HP
Speed: 2200 RPM

Angle α (Compressor Housing): 317.5°
Angle β (Turbine Housing): 327.5/163.5°
Actuator: 436806-0028
Back Plate: (1300016026)
Bearing Housing: (Oil Cooled)(1900011151)
CHRA: 433289-0284 (433289-5284S)(1102025903, 1000010565)
Compressor Cover: 762930-0002 (434613-0001)
Compressor Housing + Actuator: 762930-0001 (762930-0008)
Compressor Wheel: (Ind. 37.6 mm, Exd. 56 mm, 6+6 Blades, Super Back)(1200016223)
Gasket (Oil Outlet): 210553 (Paper Gasket)
Gasket (Turbine Inlet): 210852 (Inox Steel)
Gasket (Turbine Outlet): 210853 (Stainless Steel)
Heat Shield: 434686-0001
Repair Kit: 732252-0001 (5000010098B)
Turbine Housing A/R: 0.45
Turbine Housing: 760428-0005 (760428-0004)
Turbine Wheel: (Ind. 50.3 mm, Exd. 42.7 mm, 9 Blades)(1100016061B)
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.766-0.814/1.370-1.450 bar

Application:
2005-11 JCB Backhoe Loader, Various with Dieselmax Euro 2 Engine
2005-11 Perkins Backhoe Loader with Scout 4.4, Dieselmax Engine
2006- JCB Backhoe, Loadall with Dieselmax Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
