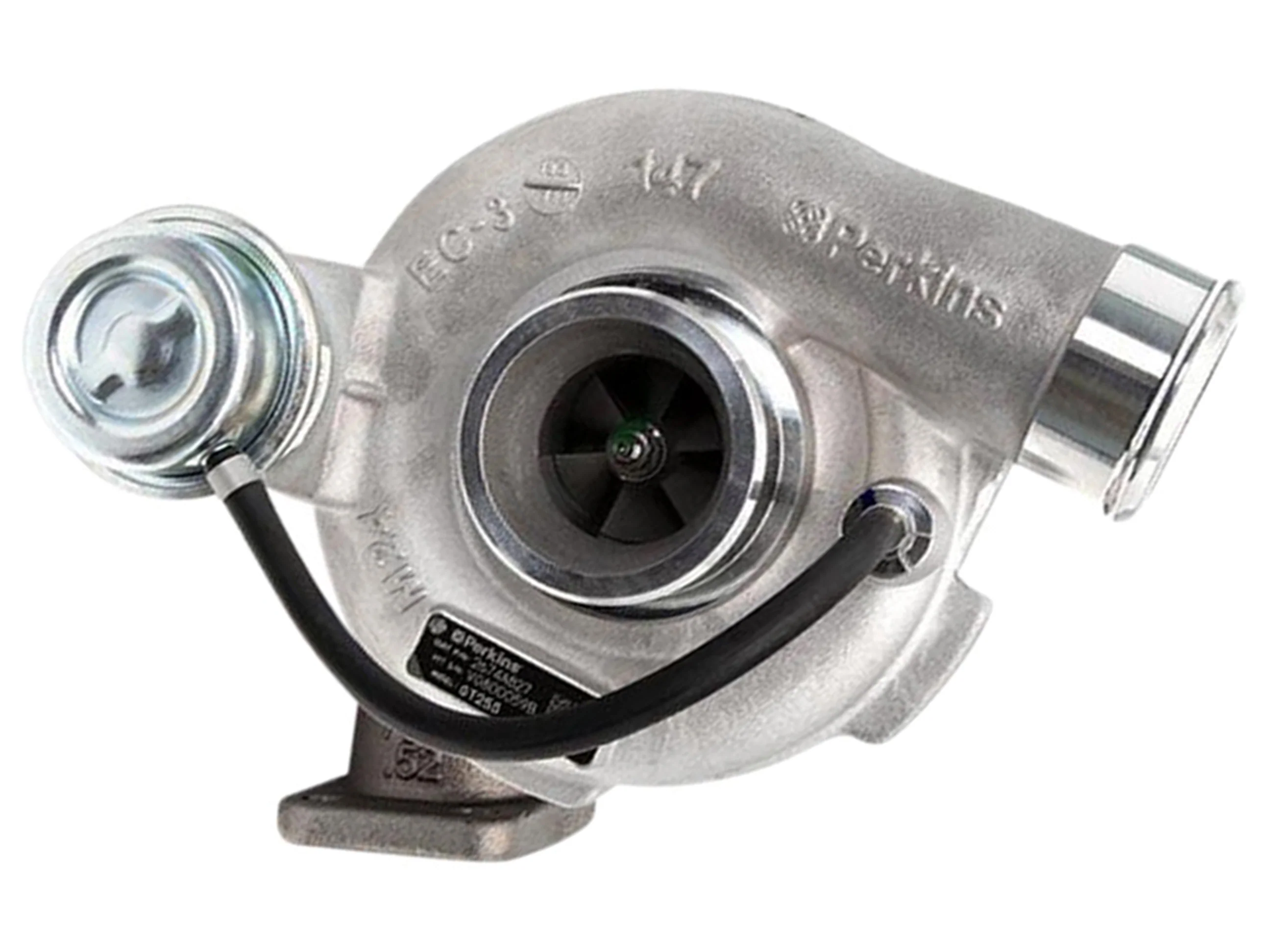

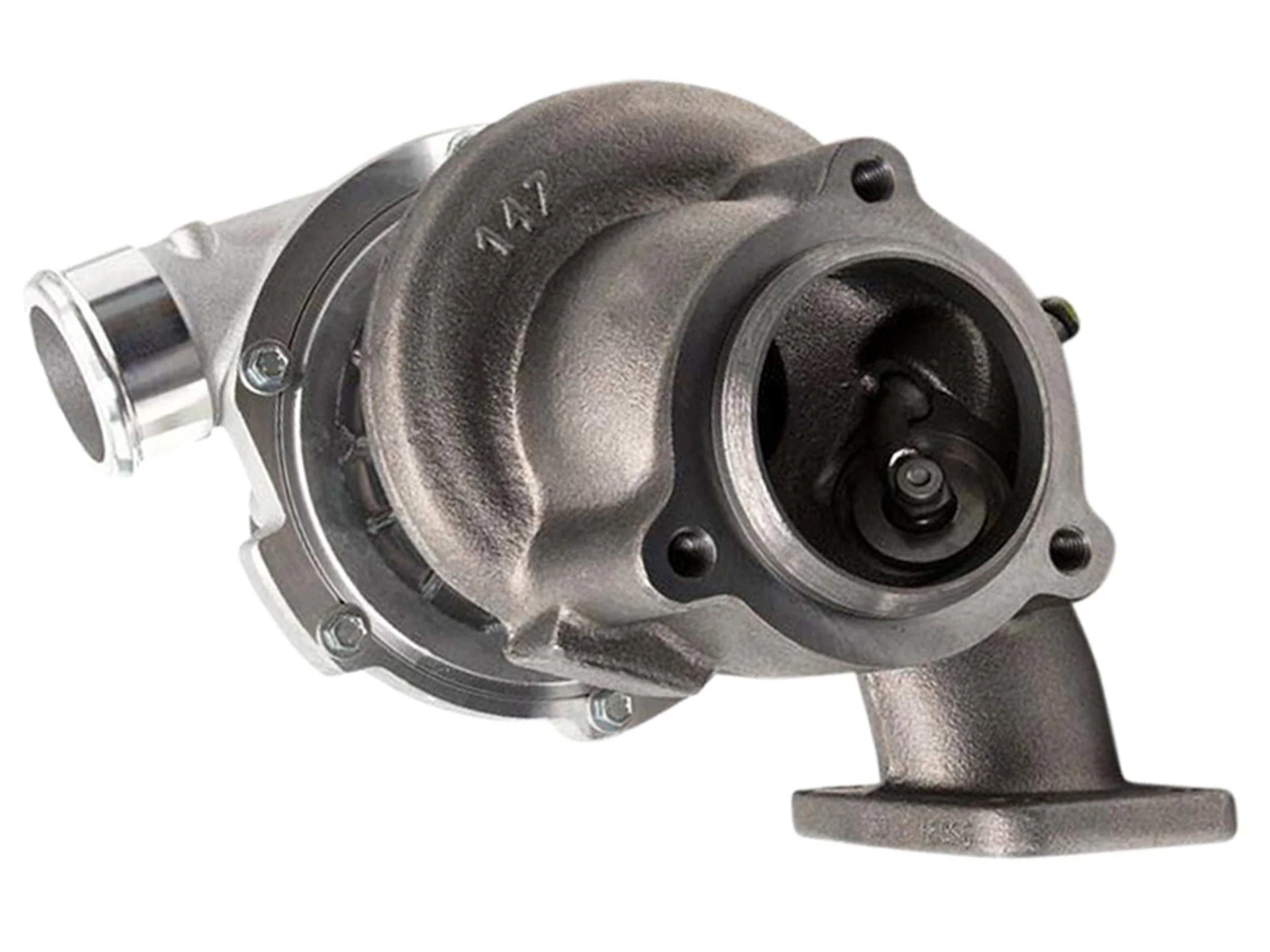

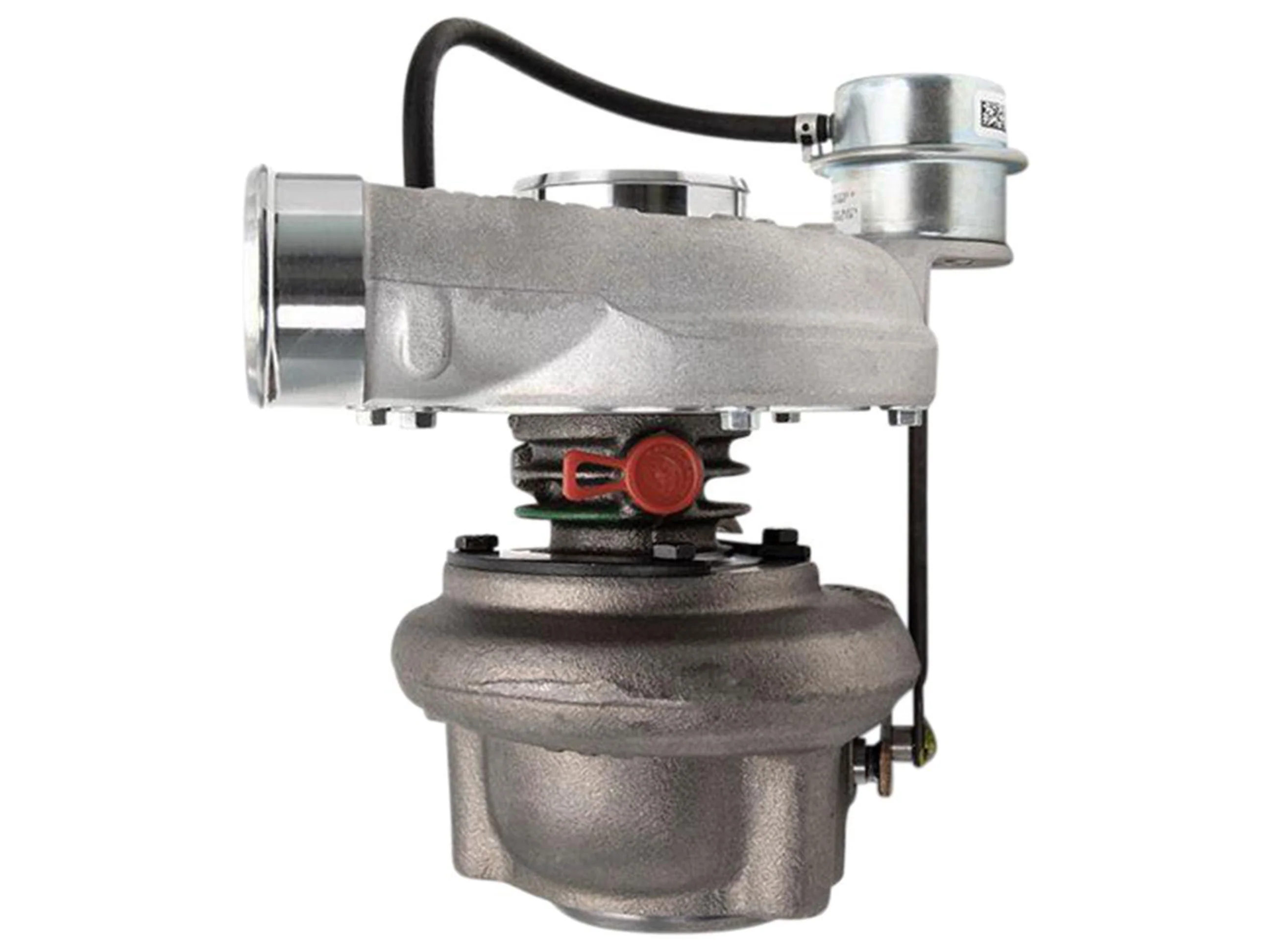

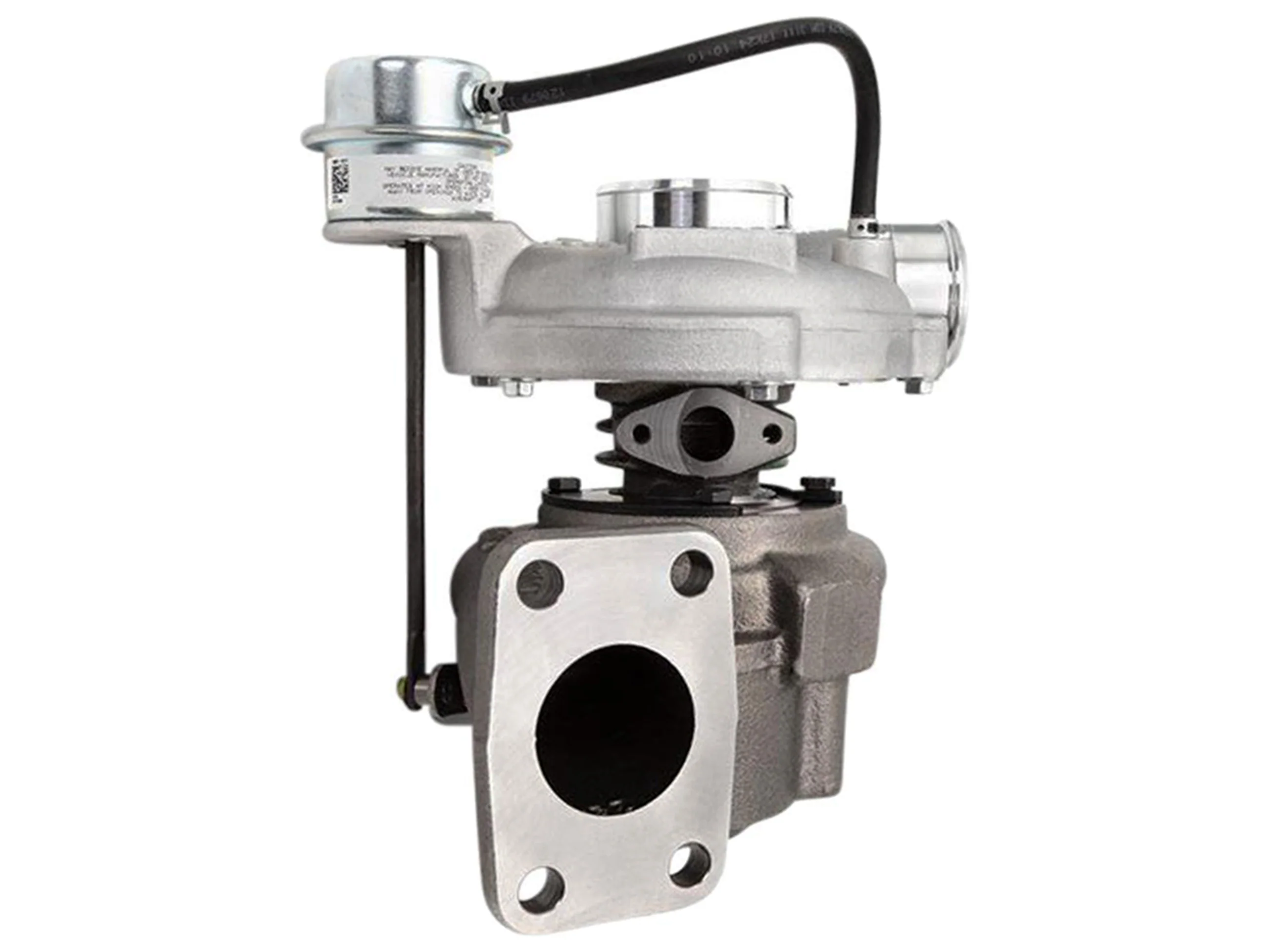

NEW Garrett GT2556S Turbo Perkins EPA Tier 3 Mechanical Fueling 4.4L 785827-5025
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785827-5025
Interchangeable Number: 785827-0025, 785827-5025S, 768524-0025, 768524-5025, 768524-5025S
OEM Number: 2674A827, 315-9721, 3159721, 450-1871, 4501871
Turbo Model: GT2556S
Manufacturer: Honeywell-Garrett
Year: 2007-
Engine: C4.4, EPA Tier 3 Mechanical Fueling, Vista 1104
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Emission Standard: EPA Tier 3
Fuel: Diesel
Power: 56 HP
Angle α (Compressor Housing): 336°
Angle β (Turbine Housing): 338°
Actuation: Pressure
Back Plate: 703682-0189
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(1102015450)(Oil Cooled)
CHRA: 433289-0425 (433289-5425S)(1102025902)
Compressor Cover: 768981-0022
Compressor Wheel: 436563-0010 (436563-0003)(Ind. 37.61 mm, Exd. 56.03 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket Kit: 215024
Heat Shield: 434686-0001
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0049 (434717-0013)(Ind. 54 mm, Exd. 45.72 mm, 12 Blades)
Turbo Technology: Wastegated
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.970-1.030 bar
Application:
2007- Perkins Various with EPA Tier 3 Mechanical Fueling Engine
Caterpillar 416E, 422E, 428E, 432E, 432F, 434E, 442E Backhoe Loader with C4.4 Engine
Caterpillar AP-300D Asphalt Paver with C4.4 Engine
Caterpillar Industrial with C4.4 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785827-5025
Interchangeable Number: 785827-0025, 785827-5025S, 768524-0025, 768524-5025, 768524-5025S
OEM Number: 2674A827, 315-9721, 3159721, 450-1871, 4501871
Turbo Model: GT2556S
Manufacturer: Honeywell-Garrett
Year: 2007-
Engine: C4.4, EPA Tier 3 Mechanical Fueling, Vista 1104
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Emission Standard: EPA Tier 3
Fuel: Diesel
Power: 56 HP
Angle α (Compressor Housing): 336°
Angle β (Turbine Housing): 338°
Actuation: Pressure
Back Plate: 703682-0189
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(1102015450)(Oil Cooled)
CHRA: 433289-0425 (433289-5425S)(1102025902)
Compressor Cover: 768981-0022
Compressor Wheel: 436563-0010 (436563-0003)(Ind. 37.61 mm, Exd. 56.03 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket Kit: 215024
Heat Shield: 434686-0001
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0049 (434717-0013)(Ind. 54 mm, Exd. 45.72 mm, 12 Blades)
Turbo Technology: Wastegated
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.970-1.030 bar
Application:
2007- Perkins Various with EPA Tier 3 Mechanical Fueling Engine
Caterpillar 416E, 422E, 428E, 432E, 432F, 434E, 442E Backhoe Loader with C4.4 Engine
Caterpillar AP-300D Asphalt Paver with C4.4 Engine
Caterpillar Industrial with C4.4 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785827-5025
Interchangeable Number: 785827-0025, 785827-5025S, 768524-0025, 768524-5025, 768524-5025S
OEM Number: 2674A827, 315-9721, 3159721, 450-1871, 4501871
Turbo Model: GT2556S
Manufacturer: Honeywell-Garrett
Year: 2007-
Engine: C4.4, EPA Tier 3 Mechanical Fueling, Vista 1104
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Emission Standard: EPA Tier 3
Fuel: Diesel
Power: 56 HP
Angle α (Compressor Housing): 336°
Angle β (Turbine Housing): 338°
Actuation: Pressure
Back Plate: 703682-0189
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(1102015450)(Oil Cooled)
CHRA: 433289-0425 (433289-5425S)(1102025902)
Compressor Cover: 768981-0022
Compressor Wheel: 436563-0010 (436563-0003)(Ind. 37.61 mm, Exd. 56.03 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket Kit: 215024
Heat Shield: 434686-0001
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0049 (434717-0013)(Ind. 54 mm, Exd. 45.72 mm, 12 Blades)
Turbo Technology: Wastegated
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.970-1.030 bar
Application:
2007- Perkins Various with EPA Tier 3 Mechanical Fueling Engine
Caterpillar 416E, 422E, 428E, 432E, 432F, 434E, 442E Backhoe Loader with C4.4 Engine
Caterpillar AP-300D Asphalt Paver with C4.4 Engine
Caterpillar Industrial with C4.4 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785827-5025
Interchangeable Number: 785827-0025, 785827-5025S, 768524-0025, 768524-5025, 768524-5025S
OEM Number: 2674A827, 315-9721, 3159721, 450-1871, 4501871
Turbo Model: GT2556S
Manufacturer: Honeywell-Garrett
Year: 2007-
Engine: C4.4, EPA Tier 3 Mechanical Fueling, Vista 1104
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Emission Standard: EPA Tier 3
Fuel: Diesel
Power: 56 HP
Angle α (Compressor Housing): 336°
Angle β (Turbine Housing): 338°
Actuation: Pressure
Back Plate: 703682-0189
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(1102015450)(Oil Cooled)
CHRA: 433289-0425 (433289-5425S)(1102025902)
Compressor Cover: 768981-0022
Compressor Wheel: 436563-0010 (436563-0003)(Ind. 37.61 mm, Exd. 56.03 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket Kit: 215024
Heat Shield: 434686-0001
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0049 (434717-0013)(Ind. 54 mm, Exd. 45.72 mm, 12 Blades)
Turbo Technology: Wastegated
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.970-1.030 bar
Application:
2007- Perkins Various with EPA Tier 3 Mechanical Fueling Engine
Caterpillar 416E, 422E, 428E, 432E, 432F, 434E, 442E Backhoe Loader with C4.4 Engine
Caterpillar AP-300D Asphalt Paver with C4.4 Engine
Caterpillar Industrial with C4.4 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
$949.00
NEW Garrett GT2556S Turbo Perkins EPA Tier 3 Mechanical Fueling 4.4L 785827-5025—
$949.00
Description
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785827-5025
Interchangeable Number: 785827-0025, 785827-5025S, 768524-0025, 768524-5025, 768524-5025S
OEM Number: 2674A827, 315-9721, 3159721, 450-1871, 4501871
Turbo Model: GT2556S
Manufacturer: Honeywell-Garrett
Year: 2007-
Engine: C4.4, EPA Tier 3 Mechanical Fueling, Vista 1104
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Emission Standard: EPA Tier 3
Fuel: Diesel
Power: 56 HP
Angle α (Compressor Housing): 336°
Angle β (Turbine Housing): 338°
Actuation: Pressure
Back Plate: 703682-0189
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(1102015450)(Oil Cooled)
CHRA: 433289-0425 (433289-5425S)(1102025902)
Compressor Cover: 768981-0022
Compressor Wheel: 436563-0010 (436563-0003)(Ind. 37.61 mm, Exd. 56.03 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket Kit: 215024
Heat Shield: 434686-0001
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0049 (434717-0013)(Ind. 54 mm, Exd. 45.72 mm, 12 Blades)
Turbo Technology: Wastegated
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.970-1.030 bar
Application:
2007- Perkins Various with EPA Tier 3 Mechanical Fueling Engine
Caterpillar 416E, 422E, 428E, 432E, 432F, 434E, 442E Backhoe Loader with C4.4 Engine
Caterpillar AP-300D Asphalt Paver with C4.4 Engine
Caterpillar Industrial with C4.4 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785827-5025
Interchangeable Number: 785827-0025, 785827-5025S, 768524-0025, 768524-5025, 768524-5025S
OEM Number: 2674A827, 315-9721, 3159721, 450-1871, 4501871
Turbo Model: GT2556S
Manufacturer: Honeywell-Garrett
Year: 2007-
Engine: C4.4, EPA Tier 3 Mechanical Fueling, Vista 1104
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Emission Standard: EPA Tier 3
Fuel: Diesel
Power: 56 HP
Angle α (Compressor Housing): 336°
Angle β (Turbine Housing): 338°
Actuation: Pressure
Back Plate: 703682-0189
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(1102015450)(Oil Cooled)
CHRA: 433289-0425 (433289-5425S)(1102025902)
Compressor Cover: 768981-0022
Compressor Wheel: 436563-0010 (436563-0003)(Ind. 37.61 mm, Exd. 56.03 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket Kit: 215024
Heat Shield: 434686-0001
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0049 (434717-0013)(Ind. 54 mm, Exd. 45.72 mm, 12 Blades)
Turbo Technology: Wastegated
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.970-1.030 bar
Application:
2007- Perkins Various with EPA Tier 3 Mechanical Fueling Engine
Caterpillar 416E, 422E, 428E, 432E, 432F, 434E, 442E Backhoe Loader with C4.4 Engine
Caterpillar AP-300D Asphalt Paver with C4.4 Engine
Caterpillar Industrial with C4.4 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
