BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 785828-5005
Interchangeable Number: 785828-0005, 785828-5005S, 768525-0005, 768525-5005, 768525-5005S, 768525-0010, 785828-5010, 785828-5010S
OEM Number: 2674A806, U2674A806
Turbo Model: GT2560S
Manufacturer: Honeywell-Garrett

Year: 2006-
Engine: EPA Tier 3 Electronic Fueling
Displacement: 4.0L, 4000 ccm, 4 Cylinders
Emission Standard: EPA Tier 3
Fuel: Diesel
Power: 141 HP
Speed: 2400 RPM

Angle α (Compressor Housing): 185°
Angle β (Turbine Housing): 105°
Actuation: Pressure
Back Plate: 703682-0202
Bearing Housing: 713782-0010/433275-0002/713782-0002 (1102015450)(Oil Cooled)
CHRA: 433289-0426 (433289-5426S)
Compressor Wheel: 720915-0006 (Ind. 42.2 mm, Exd. 60 mm, Trim 50, 5+5 Blades, Super Back)(1102122400)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket Kit: 215024
Heat Shield: 434686-0001
Repair Kit: 732252-0001 (1102015756)

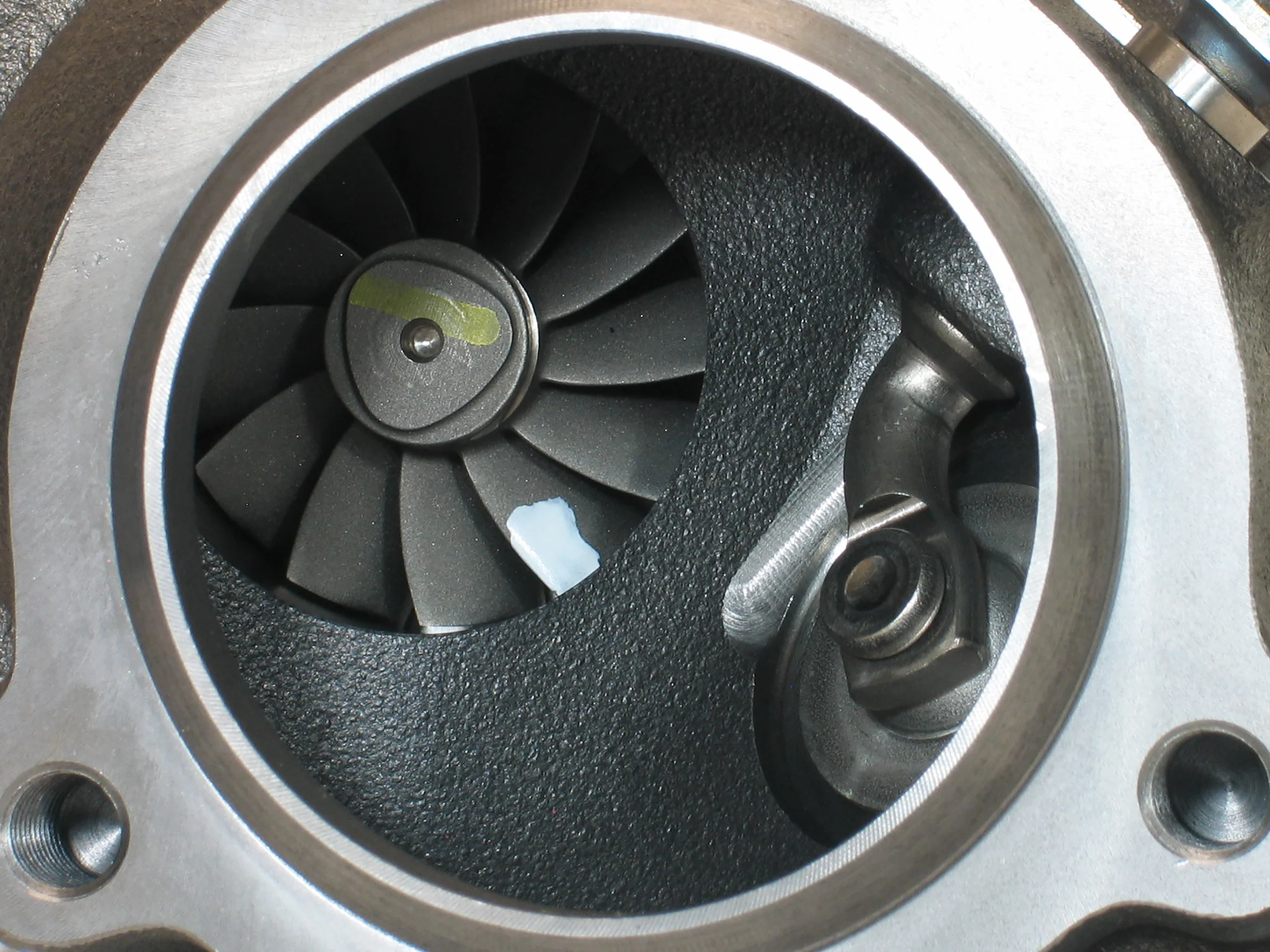

Turbine Wheel: 434717-0049 (Exd. 45.82 mm, 12 Blades)
Turbo Technology: Wastegate
Wastegate Settings (Lift Rod): 1.00 mm
Wastegate Settings (Pressure): 1.09-1.15 bar

Application:
2006- Perkins Construction Equipment, Various with EPA Tier 3 Electronic Fueling Engine

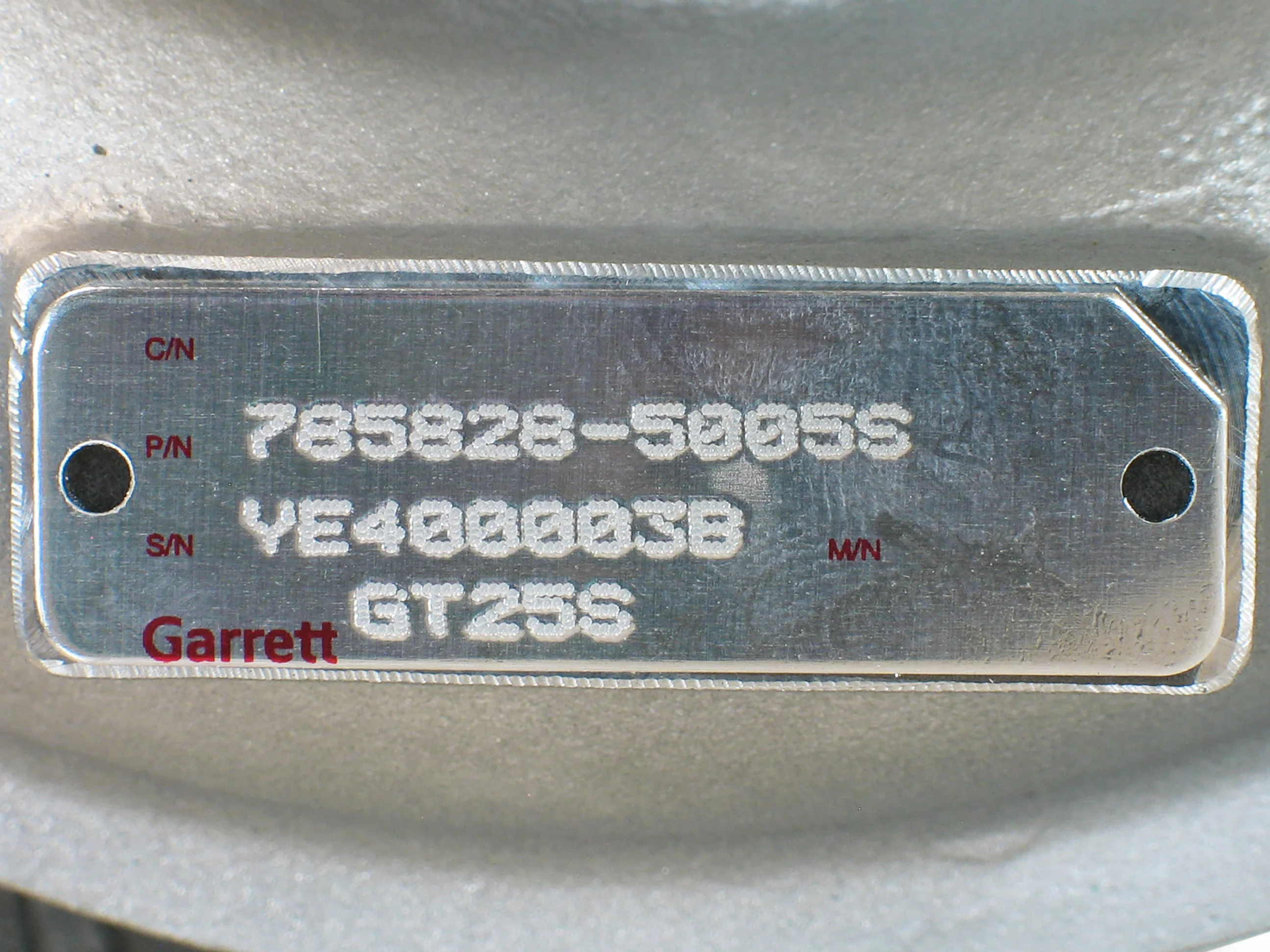

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
