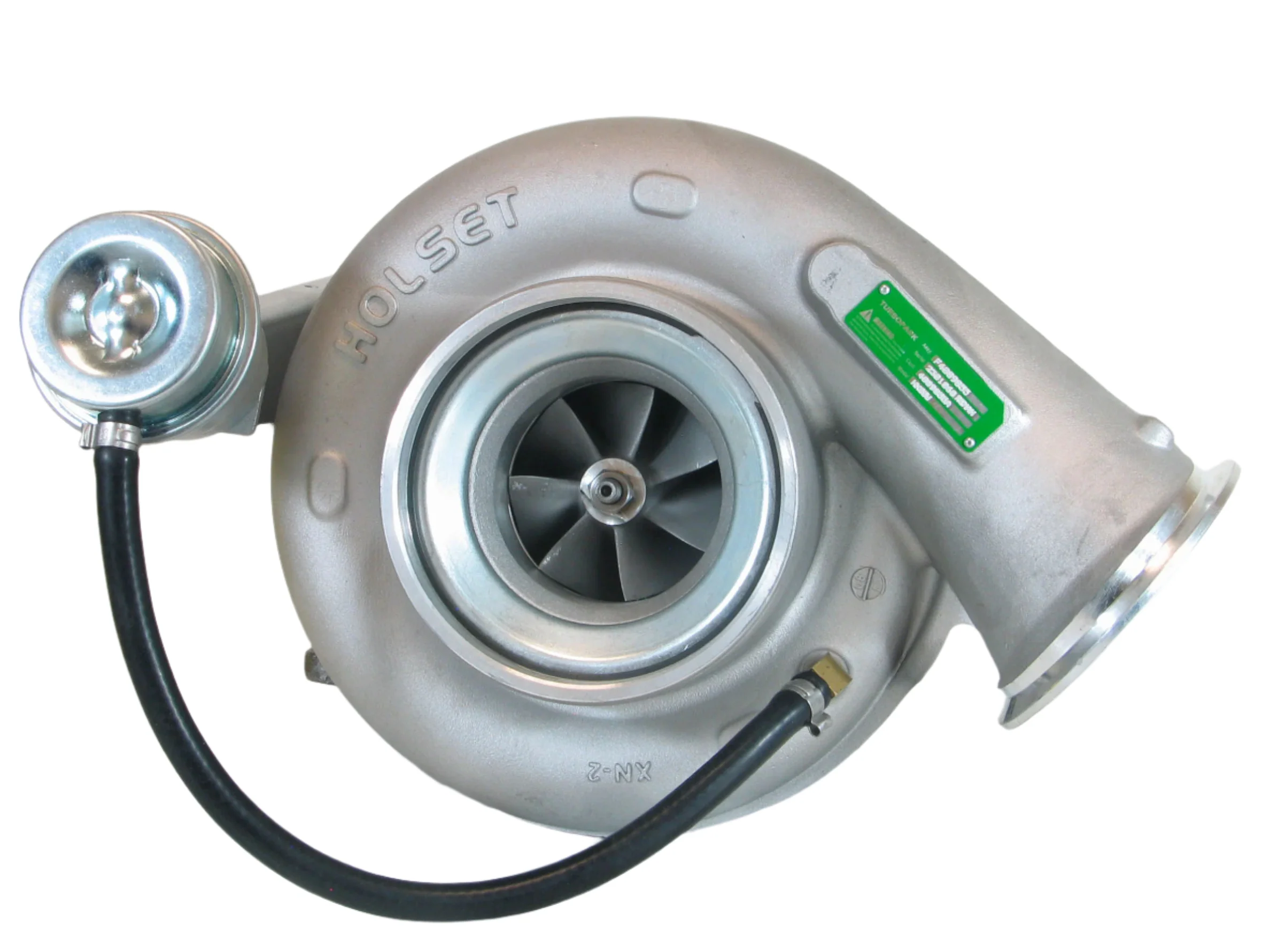

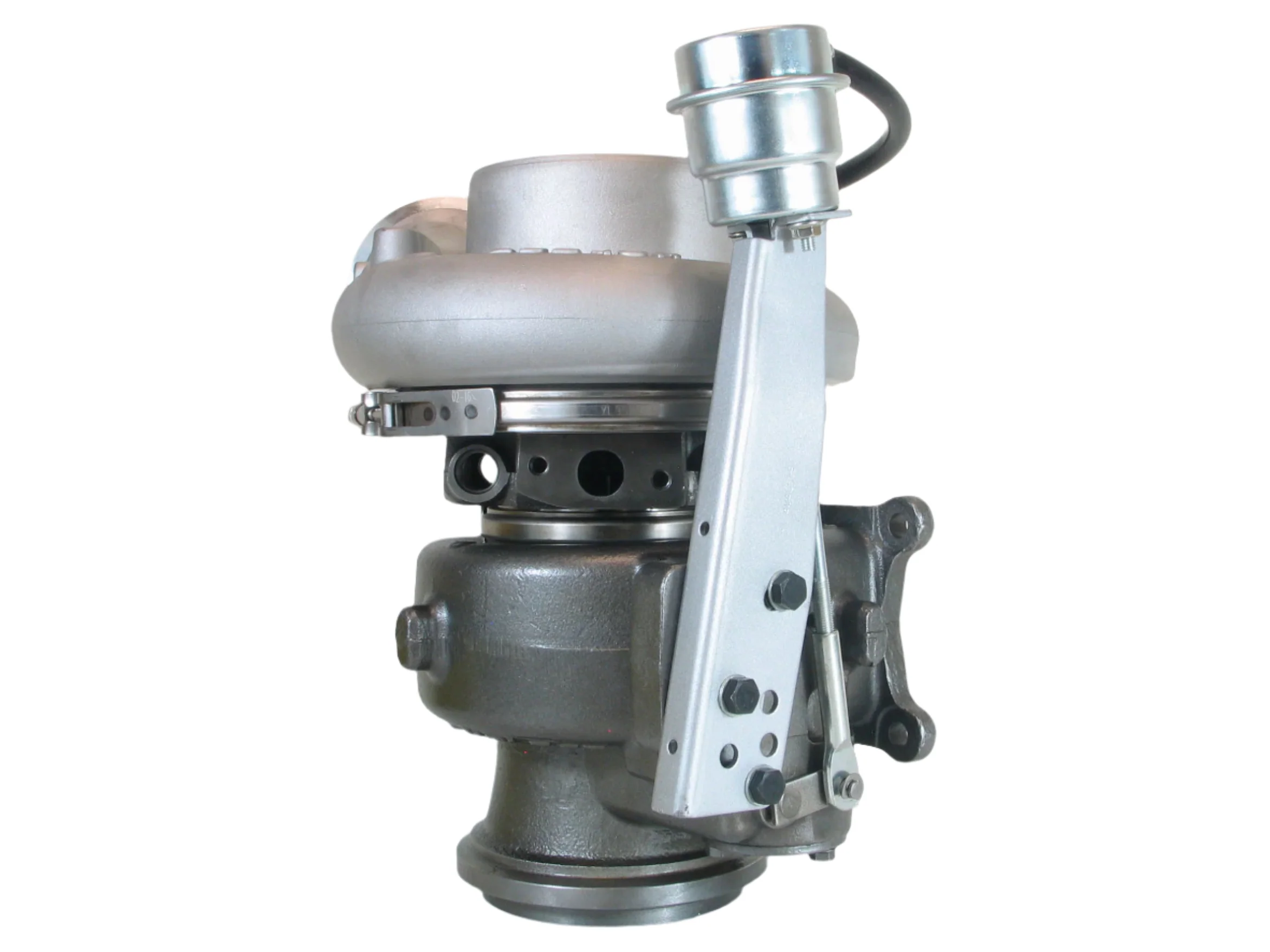

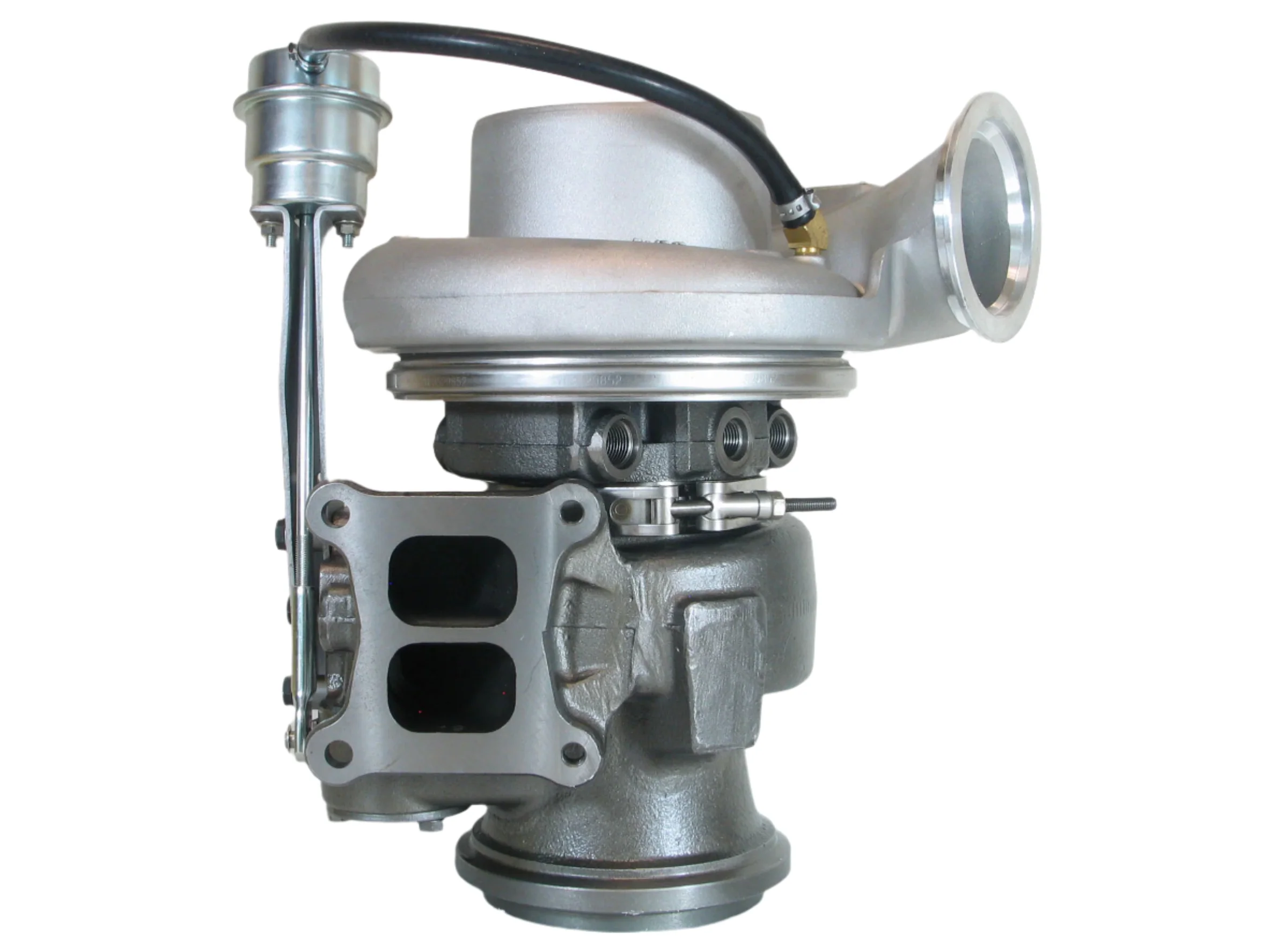

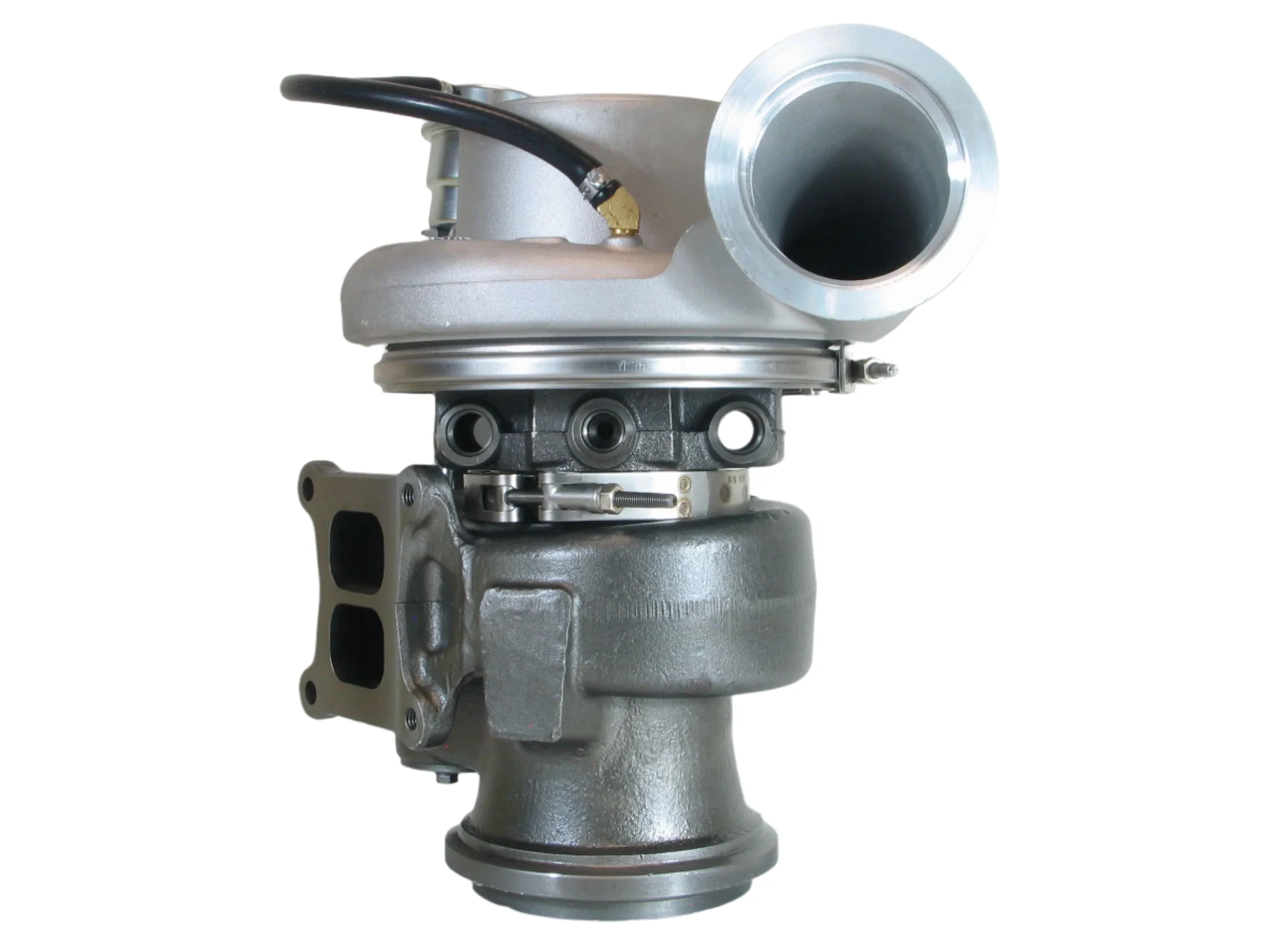

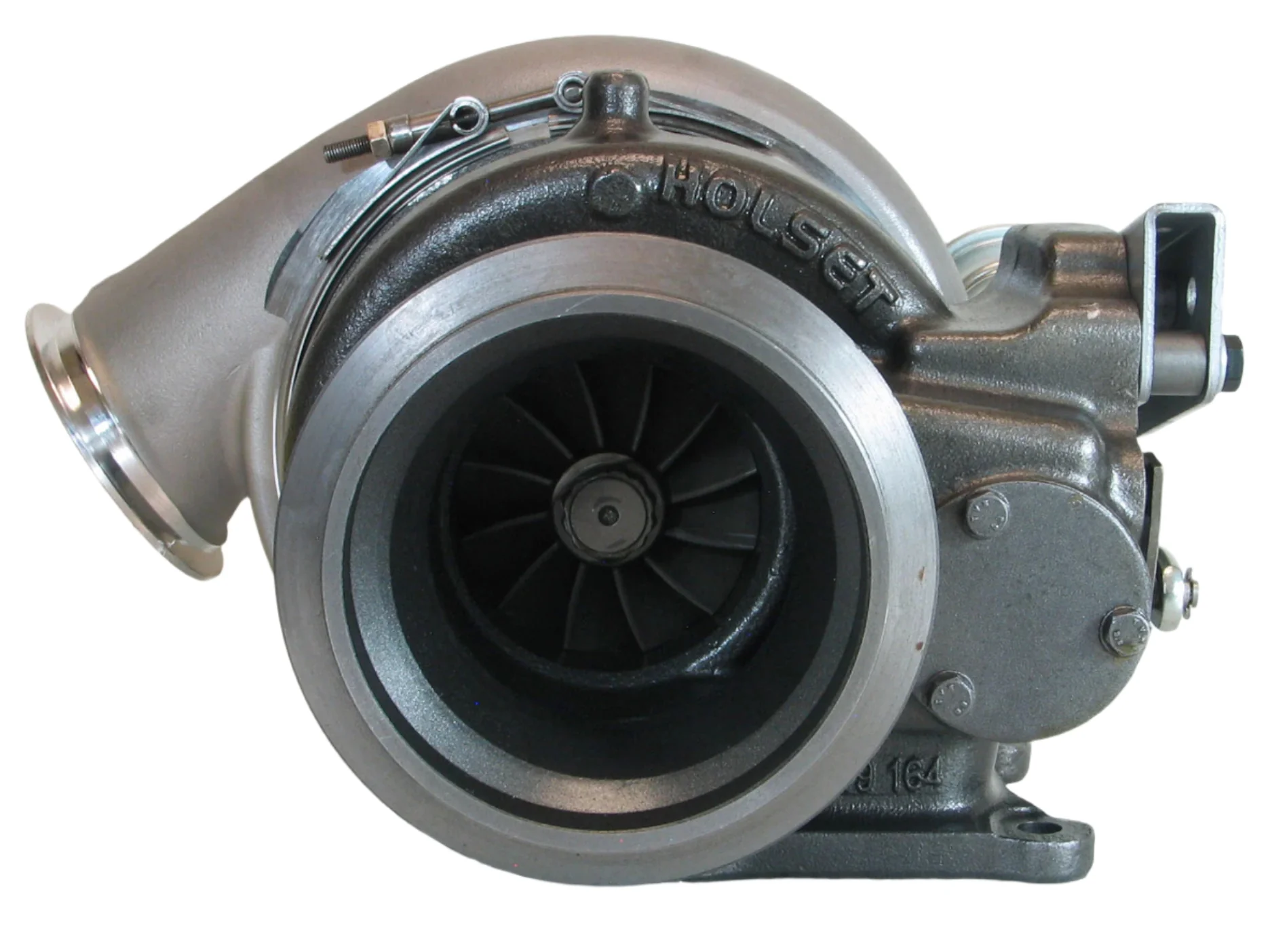

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4037084
Interchangeable Number: 403708400, 4037085H, 408985500
OEM Number: 4037085, 4089855
Turbo Model: HX55W

Year: 2003-
Engine: QSM11
Engine Manufacturer: Cummins
Emission Standard: Tier 3
Fuel: Diesel

Angle α (Compressor Housing): 264°
Angle β (Turbine Housing): 130°
Actuator (Cover Plate): 3527651
Back Plate: 3528096 (352809600)(1153055300)
Bearing Housing: 3593343 (3593342, 4027508)(Water Cooled)
CHRA: 4032308 (4032834, 3768416, 3768416H, 4032834H)
Compressor Wheel: 4035887 (4036317, 4036315)(Ind. 71.01 mm, Exd. 99.06 mm, Trim 7.11, 7+7 Blades, Super Back)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)
Gasket (Turbine Inlet): 210847 (Inox Steel)
Gasket Kit: 3800279
Heat Shield: 3533038 (3529846, 353303800, 352984600)(1153055340)
Repair Kit: 3580762 (3575181, 358076200, 357518100)(1153055750)
Turbine Wheel: 3535983 (353598300, 3535983H)(Ind. 86 mm, Exd. 76.98 mm, Trim 12.85, 12 Blades)(1153055436)

Application:
2003- Various with Cummins QSM11 Engine
Construction with Cummins QSM11 Engine
Generator with Cummins QSM11 Engine
Industrial with Cummins QSM11 Engine
Wheel Dozer with Cummins QSM11 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
