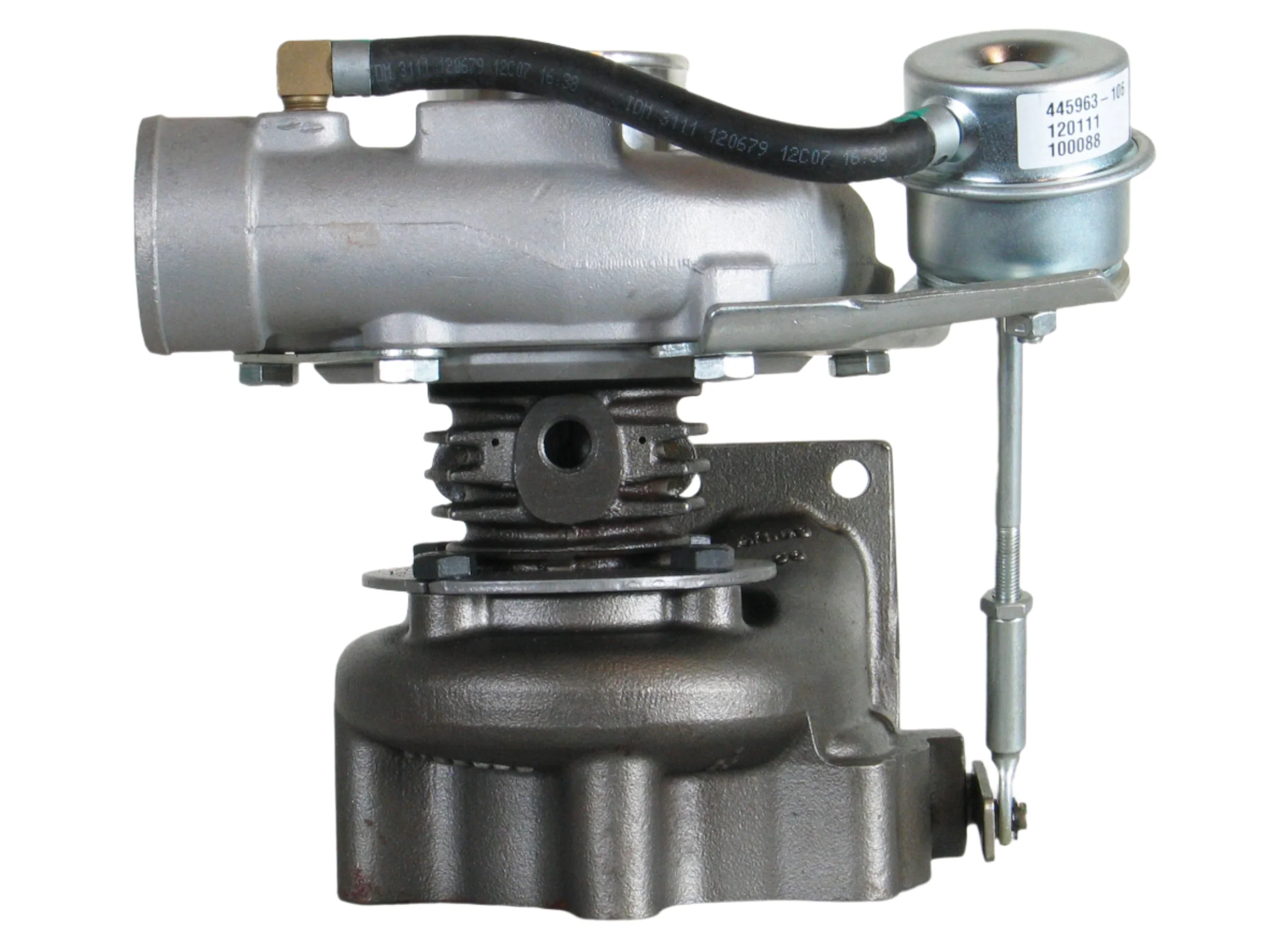

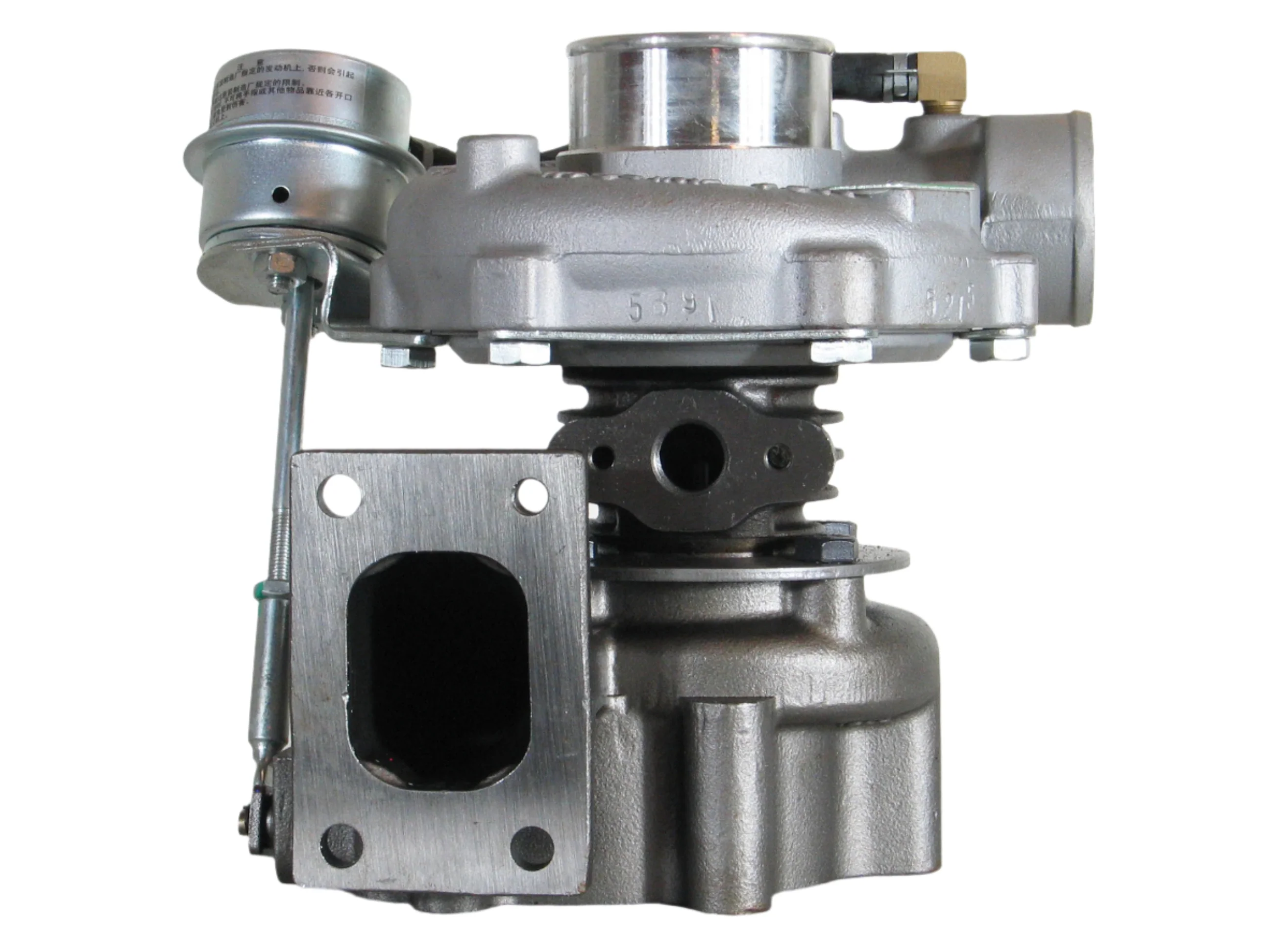

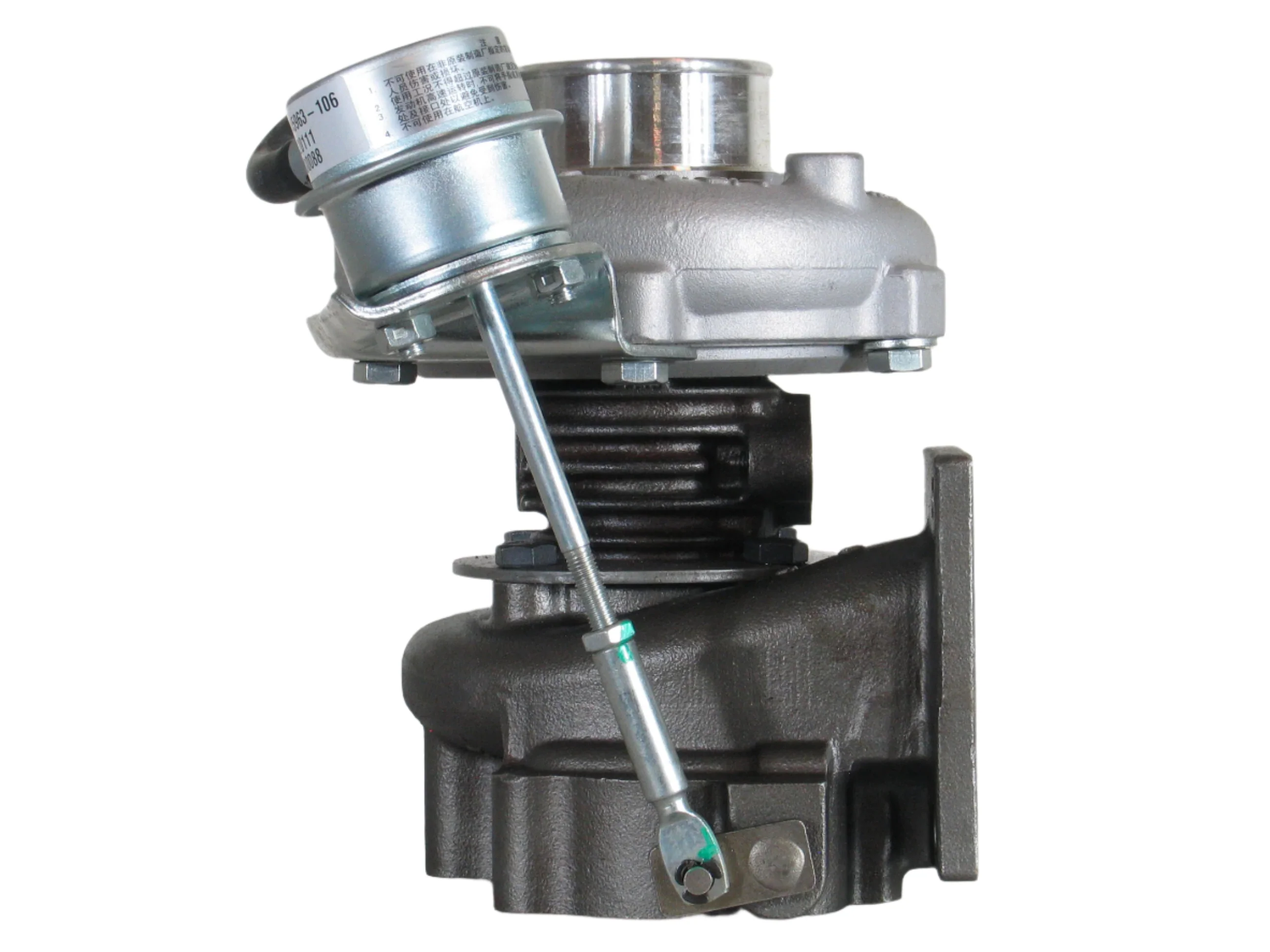

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 702365-5015S
Interchangeable Number: 702365-0015, 702365-5001S, 702365-5009S
OEM Number: 4102BZ10103
Turbo Model: TB2818

Year: 2002-
Engine: CY4102BZQ
Displacement: 3.9L, 3856 ccm, 4 Cylinders
Fuel: Diesel
Power: 88 kW/118 HP
Speed: 2800 RPM

Actuator: 445963-0106
Back Plate: 432280-0001 (430612-0003)
Bearing Housing: 751684-0006 (Oil Cooled)
CHRA: 443854-0250 (443854-5250S)
Compressor Cover: 409589-0589 (713190-0002)
Compressor Wheel: 766270-0001
Gasket (Compressor Housing): 409248-0000 (103027-0000, 3545332, 312347)
Gasket (Oil Inlet): 210553 (Paper)
Gasket (Turbine Inlet): 210360 (Stainless Steel)
Gasket (Turbine Outlet): 210230 (Stainless Steel)
Heat Shield: 431055-0001 (431055-0003)
Repair Kit: 709143-0001 (200423-0000, 707903-0002)
Turbine Housing: 430609-0478
Turbine Wheel: 435406-0001 (435406-0004, 435406-0005, 435406-0006, 435922-0004, 435922-0005)(Ind. 53.01 mm, Exd. 46.22 mm, 10 Blades)

Application:
2002- JAC Bus, Truck, Various with CY4102BZQ Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
