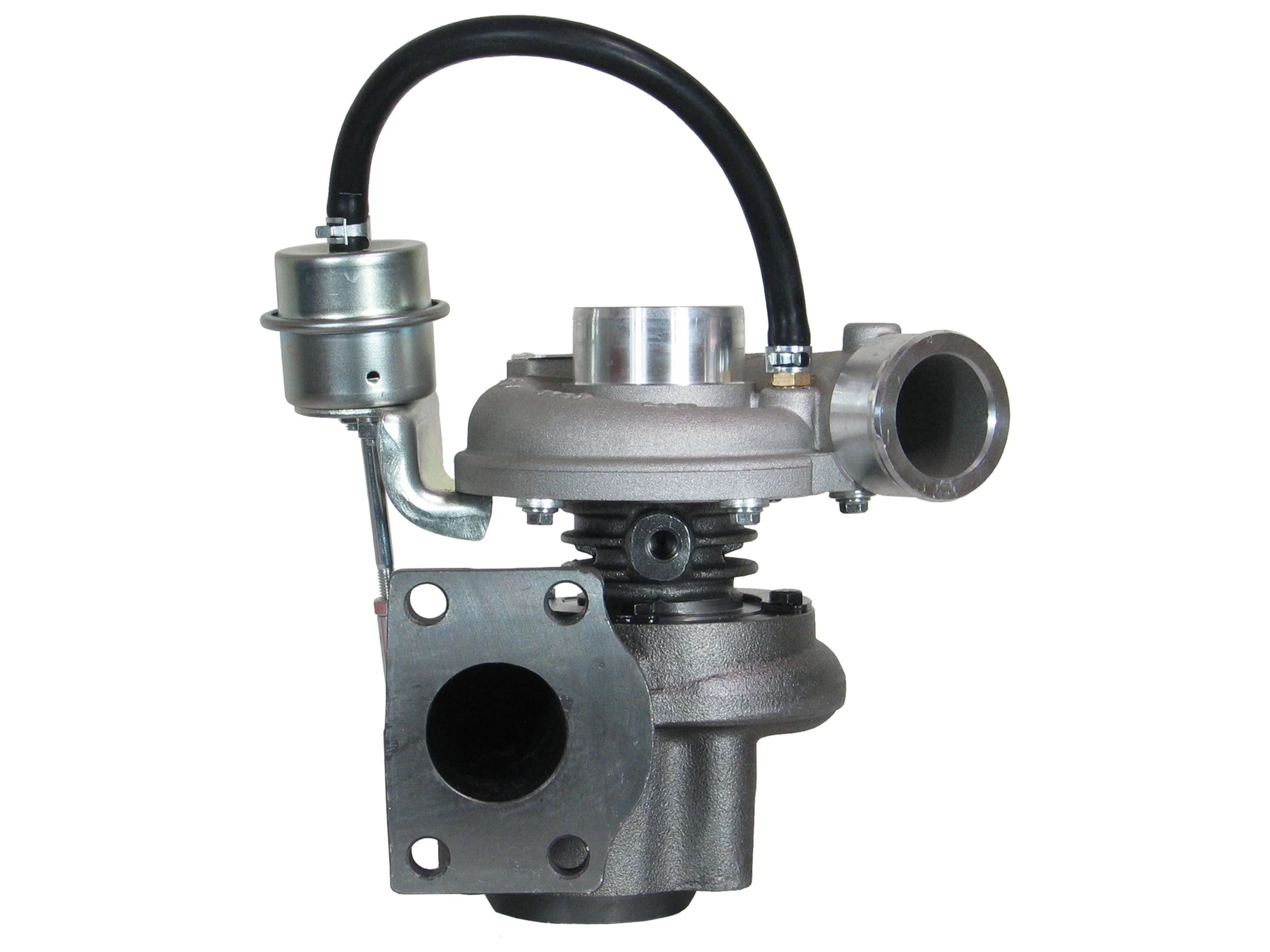

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 452044-5004
Interchangeable Number: 452044-0004, 452044-5004S, 452044-0001, 452044-5001, 452044-5001S
OEM Number: 2674A081, 2674A139, U2674A081, U2674A139
Turbo Model: TB2548

Year: 1990-
Engine: T4.40 Phaser
Engine Manufacturer: Perkins
Fuel: Diesel
Power: 95 HP

Angle α (Compressor Housing): 265°
Angle β (Turbine Housing): 190°
Actuation: Pressure
Actuator: 432340-0055/432340-0063
Back Plate: 430735-0001 (430612-0003)(1100025300)
Bearing Housing: 435349-0011 (435349-0005)
CHRA: 443854-0122 (443854-5122S, 87800063)
Compressor Cover: 409589-0430
Compressor Wheel: 446335-0012 (Ind. 38.2 mm, Exd. 54 mm, Trim 50, 5+5 Blades)
Gasket (Oil Outlet): 413709-0001 (Paper)
Gasket (Turbine Inlet): 409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port)
Gasket (Turbine Outlet): 210225 (Stainless Steel)
Gasket Kit: 215251
Heat Shield: 443594-0001 (1100025341)
Repair Kit: 709143-0001 (1100025761)
Turbine Housing A/R: 0.49
Turbine Housing: 413567-0044
Turbine Wheel: 435406-0003 (Ind. 53 mm, Exd. 41.7 mm, Trim 62, 10 Blades)
Turbo Technology: Wastegate
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.880-0.980 Bar

Application:
1990- Perkins Industrial, Off-Highway with T4.40 Phaser Engine
Caterpillar Forklift

TurboTurbos Part Number: TP01-0103-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
