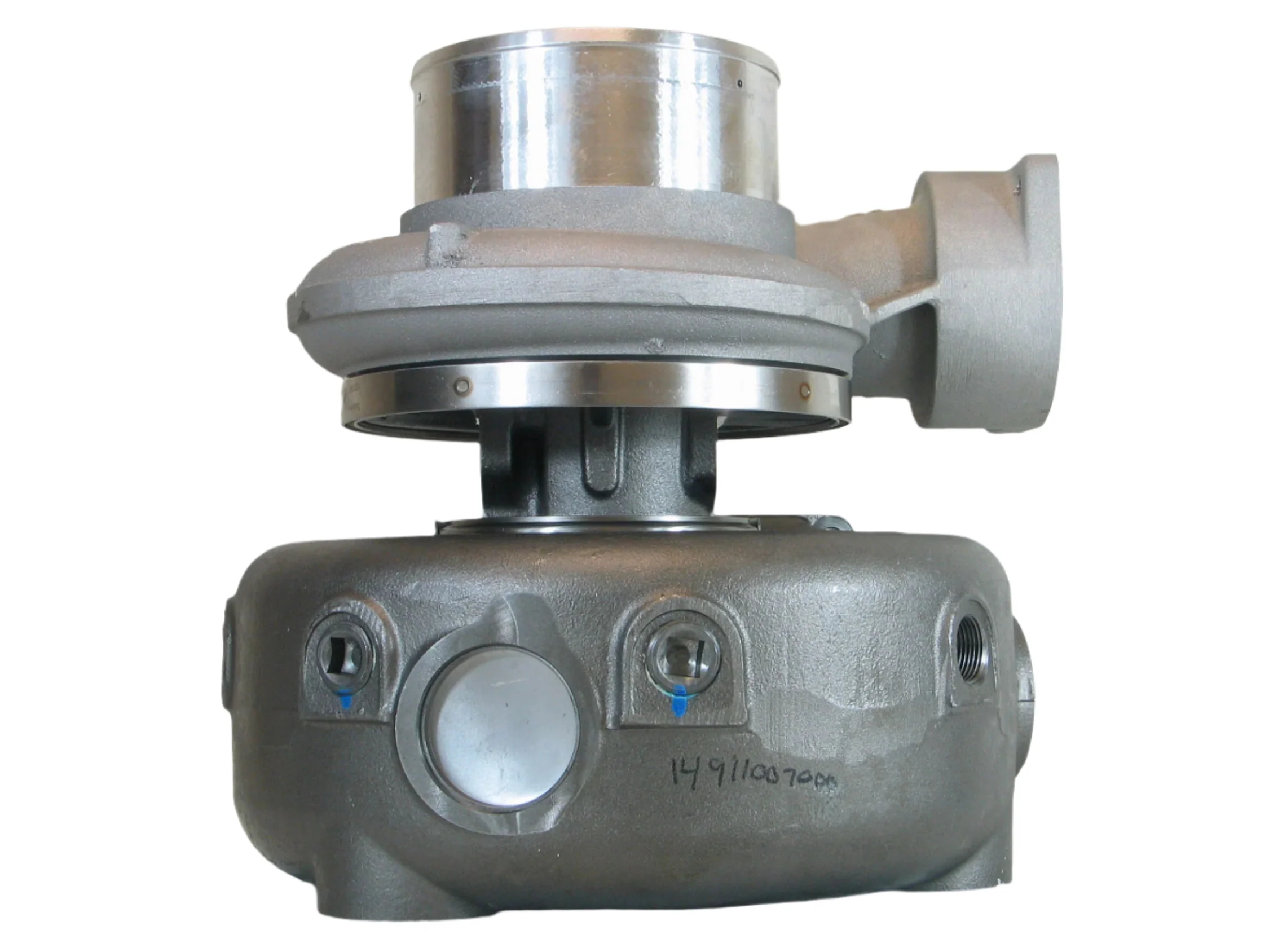

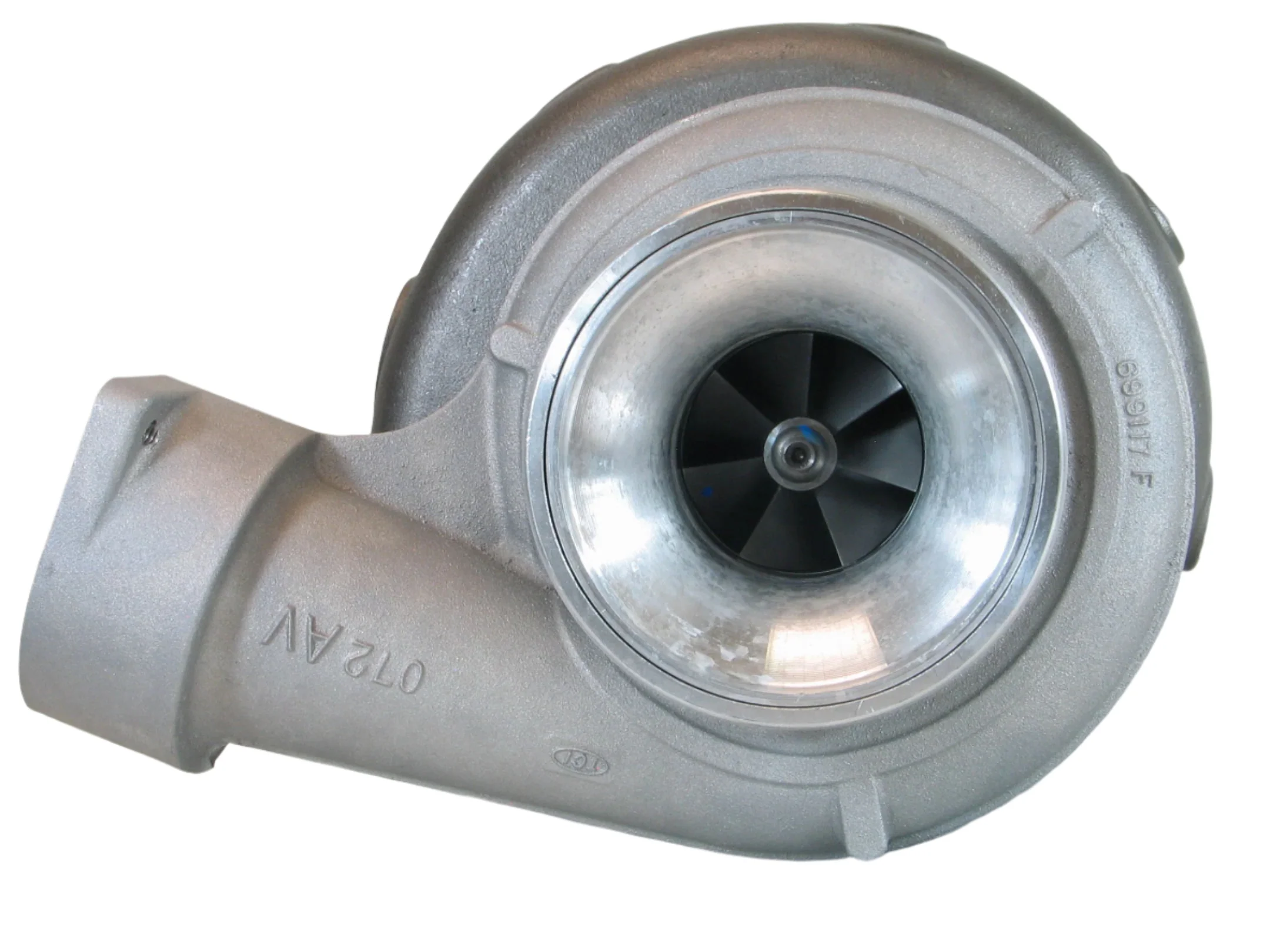

BRAND NEW GENUINE BORGWARNER TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 171542
Interchangeable Number: 14919700008, 1491 970 0008, 1491-970-0008, 14919880008, 1491 988 0008, 1491-988-0008, 168451, 171541, 174416
OEM Number: 0R-7172, 0R7172, 127-5129, 1275129, 191-0095, 1910095, 237-6399, 2376399
Serial Number: 2XR00001-UP
Turbo Model: S400W005, S4DWL046
Manufacturer: BorgWarner - 3K - Schwitzer

Year: 2000-2004
Engine: 3196E, 3196 E
Engine Manufacturer: Caterpillar
Displacement: 12.0L, 12000 ccm
Fuel: Diesel
Power: 492 kW/660 HP
Speed: 2300 RPM
Prefix: 2XR, 9HP, K1M

Angle α (Compressor Housing): 330°
Angle β (Turbine Housing): 330°
Back Plate: 167783
Bearing Housing: 169286 (Oil Cooled)
CHRA: 178164 (168452, 468452, 478164)(0R7173, 137-8922, 1378922)
Compressor Housing: 1378925
Compressor Wheel: 168456 (Ind. 76.45 mm, Exd. 104.85 mm, Trm 7.45, 7+7 Blades, Superback)
Heat Shield: 167790 (2030016012)
Plug-Cup: 0L1024
Plug-Pipe: 9L8412
Repair Kit: 318396 (169637)(1253400750)
Turbine Housing (Water Cooled): 1910098
Turbine Wheel: 168298 (167798, 166660, 315273) (Ind. 81.71 mm, Exd. 91.62 mm, Trm 13.84, 10 Blades)

NOTE: Restricted to Caterpillar.

Application:
2000-2004 Caterpillar Marine, Ship with 3196E Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
