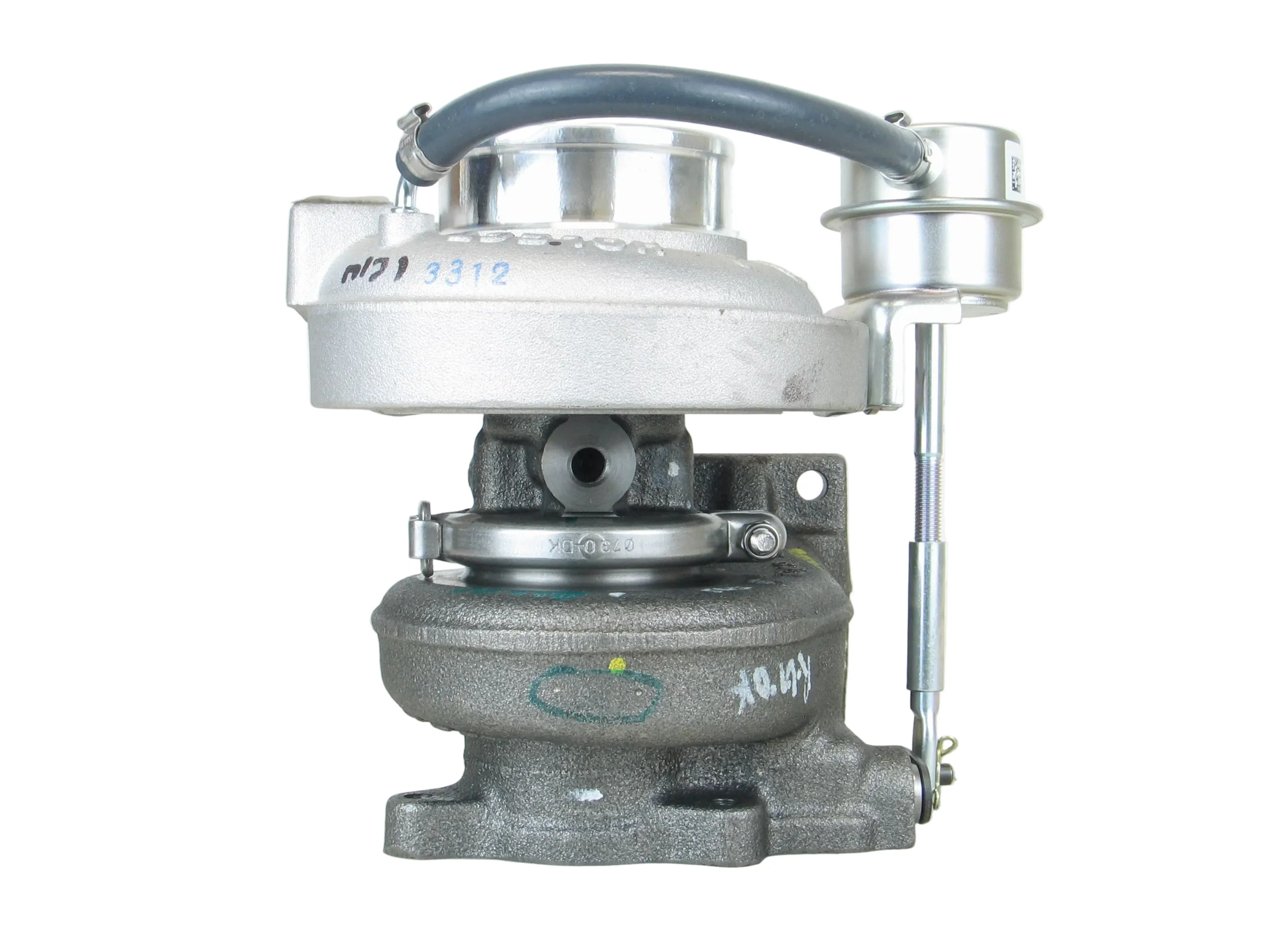

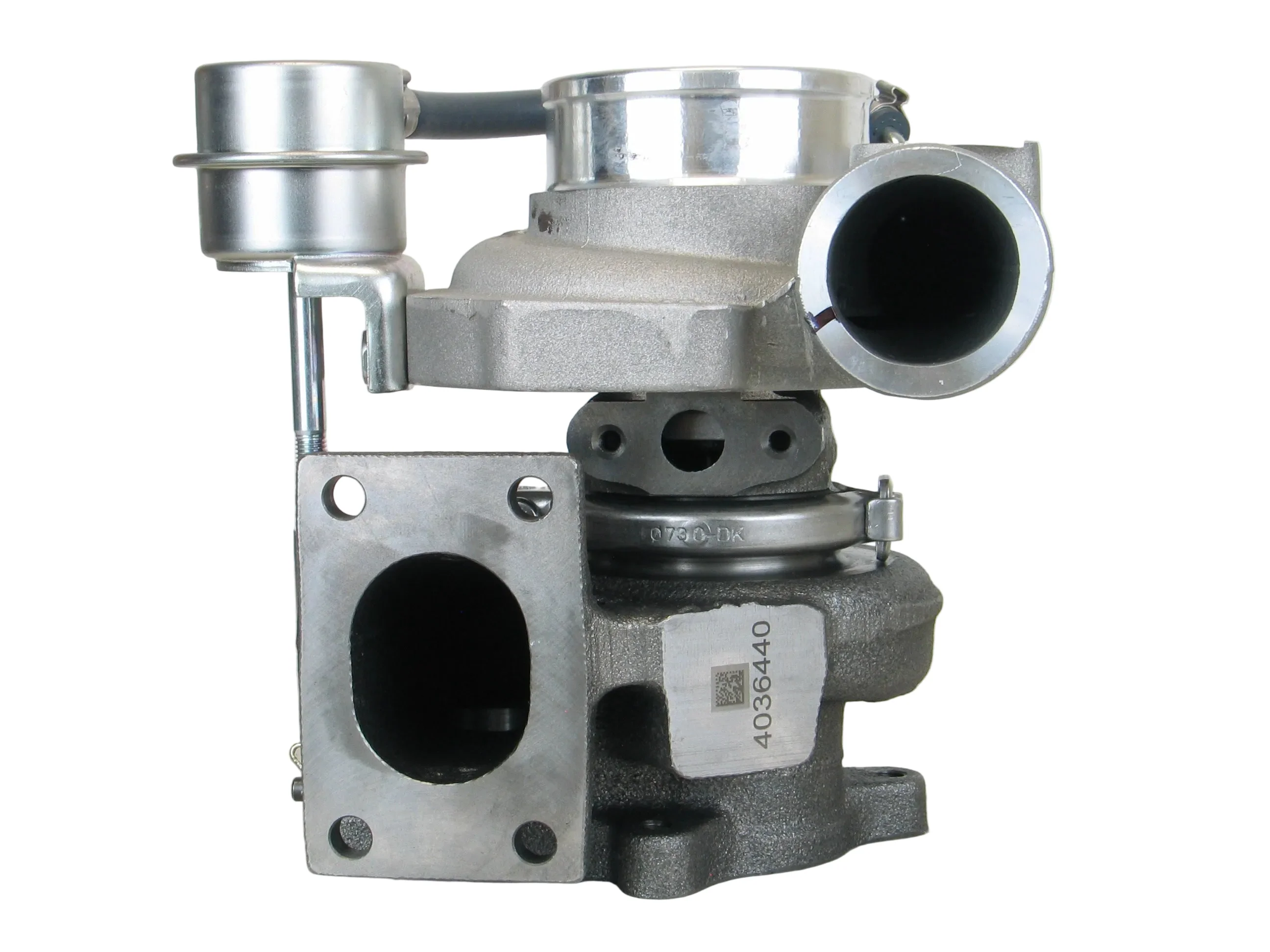

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 4046569
Interchangeable Number: 2856701, 2856701R, 403325500, 4033255H
OEM Number: 4033255, 4046570, 504248855, 504248855R
Turbo Model: HX27W
Manufacturer: Holset

Year: 2007-04
Engine: NEF 4 Cylinders
Engine Manufacturer: CNH
Power: 96 HP

Angle α (Compressor Housing): 90°
Angle β (Turbine Housing): 360°
Back Plate: 49135-00044 (1800016016)
Bearing Housing: 49189-26400 (1900011200E)
CHRA: 3593380 (3593380H, 49189-08052, 49189-08053)(1153027900, 1000020157)
Compressor Wheel: 49377-00017 (49189-43400)(Ind. 40.61 mm, Exd. 56.03 mm, 6+6 Blades, Super Back)(1200016516)
Heat Shield: 49183-19300 (2030016085)
Repair Kit: (5000050007)
Turbine Wheel: 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1100030028)

Application:
2007-04 Iveco Backhoe Loader, Agricultural with NEF 4 Cylinders Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
