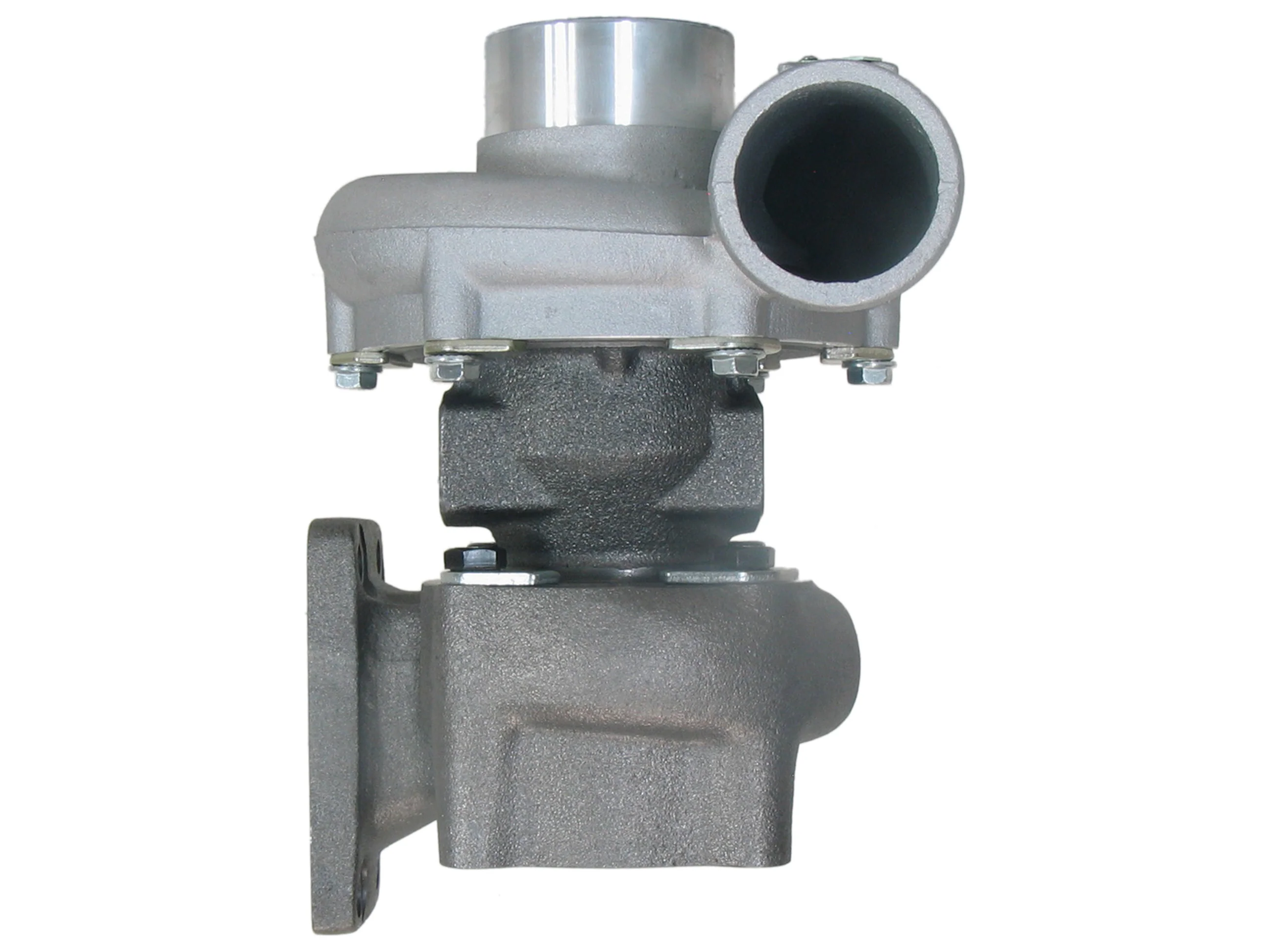

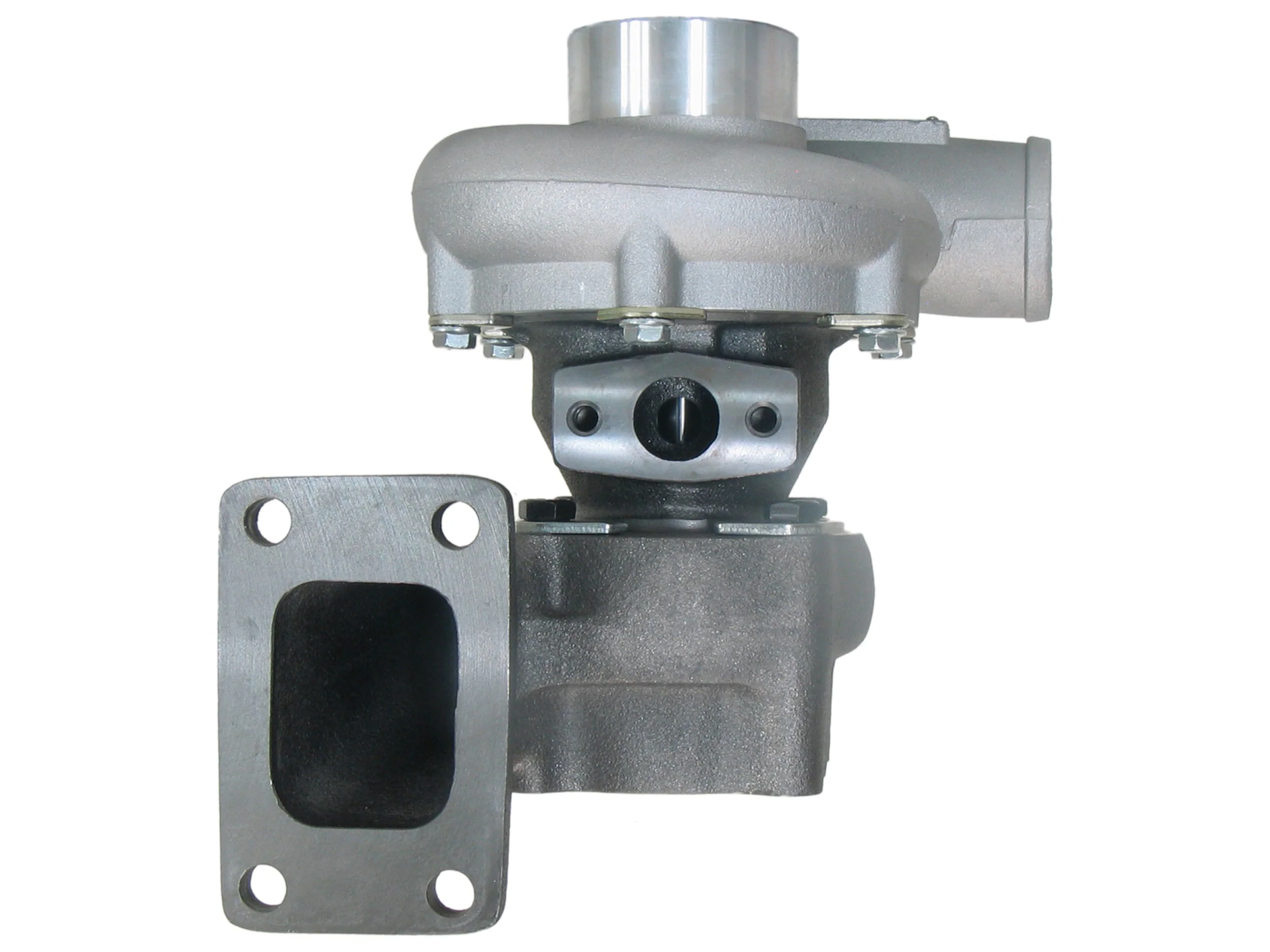

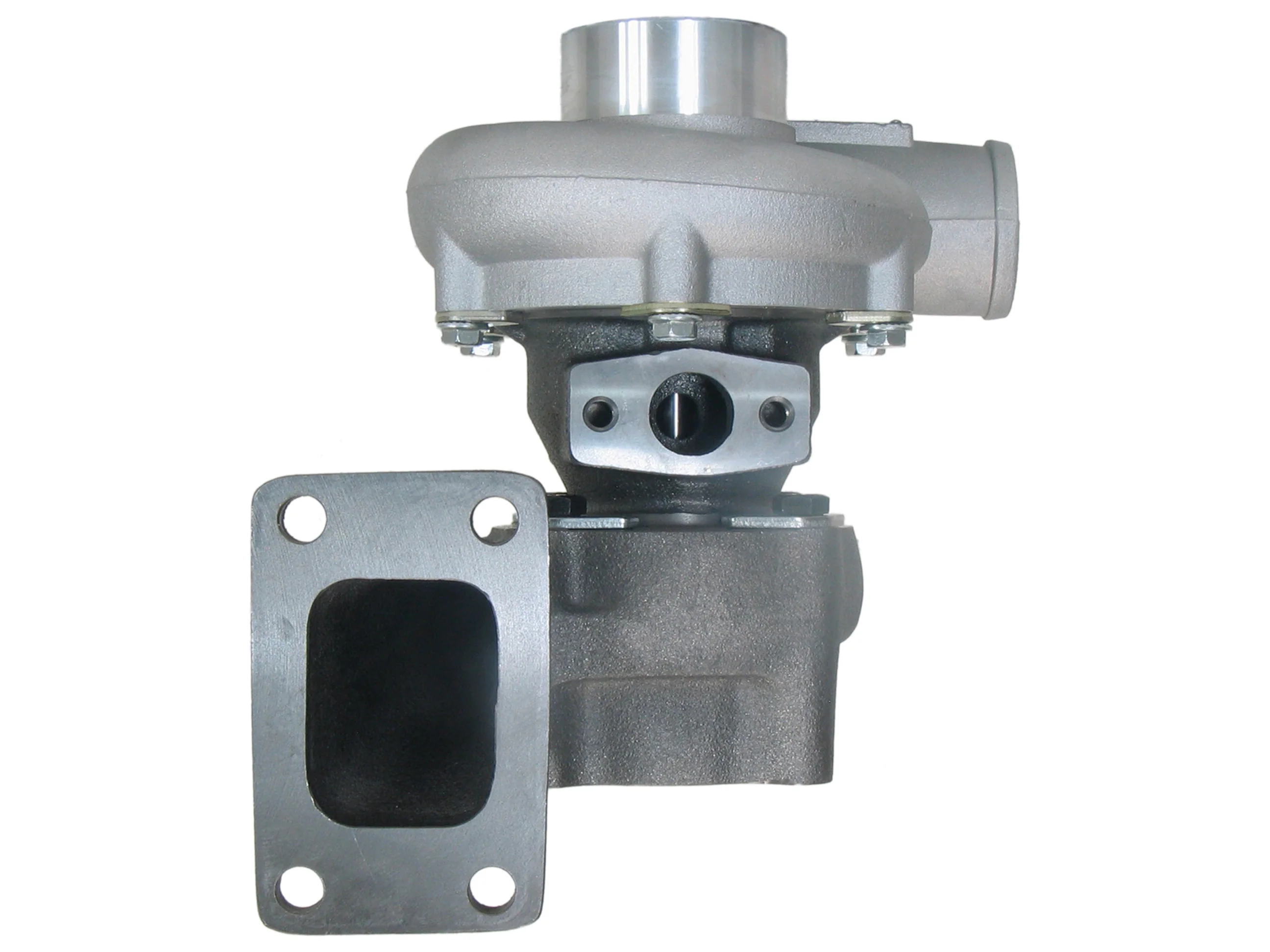

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 465209-5003
Interchangeable Number: 465209-0003, 465209-5003S, 465209-0006, 465209-5006, 465209-5006S
OEM Number: 87800402
Turbo Model: T250-05

Engine Manufacturer: CNH
Fuel: Diesel

Angle α (Compressor Housing): 344°
Angle β (Turbine Housing): 344°
Back Plate: 430735-0001 (430612-0003)(1100025300)
Bearing Housing: 435349-0011 (435349-0005)
CHRA: 443854-0122 (443854-5122S, 87800063)
Compressor Cover: 434288-0008 (87800062)
Compressor Wheel: 446335-0012 (Ind. 38.2 mm, Exd. 54 mm, Trim 50, 5+5 Blades)
Gasket (Oil Outlet): 413709-0001 (Paper)
Gasket (Turbine Inlet): 409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port)
Gasket (Turbine Outlet): 210225 (Stainless Steel)
Gasket Kit: 215304
Heat Shield: 443594-0001 (1100025341)
Repair Kit: 709143-0001 (1100025761)
Stud Kit: 216005
Turbine Housing A/R: 0.51
Turbine Housing: 434259-0001 (87800061)
Turbine Wheel: 435406-0003 (Ind. 53 mm, Exd. 41.7 mm, Trim 62, 10 Blades)
Turbo Technology: Free Floating

Application:
CNH Industrial, Agricultural
Case IH Agricultural, Industrial
Ford Construction Loader, Skid Steer
New Holland Agricultural Tractor Series 30, Skid Loader, Industrial

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
