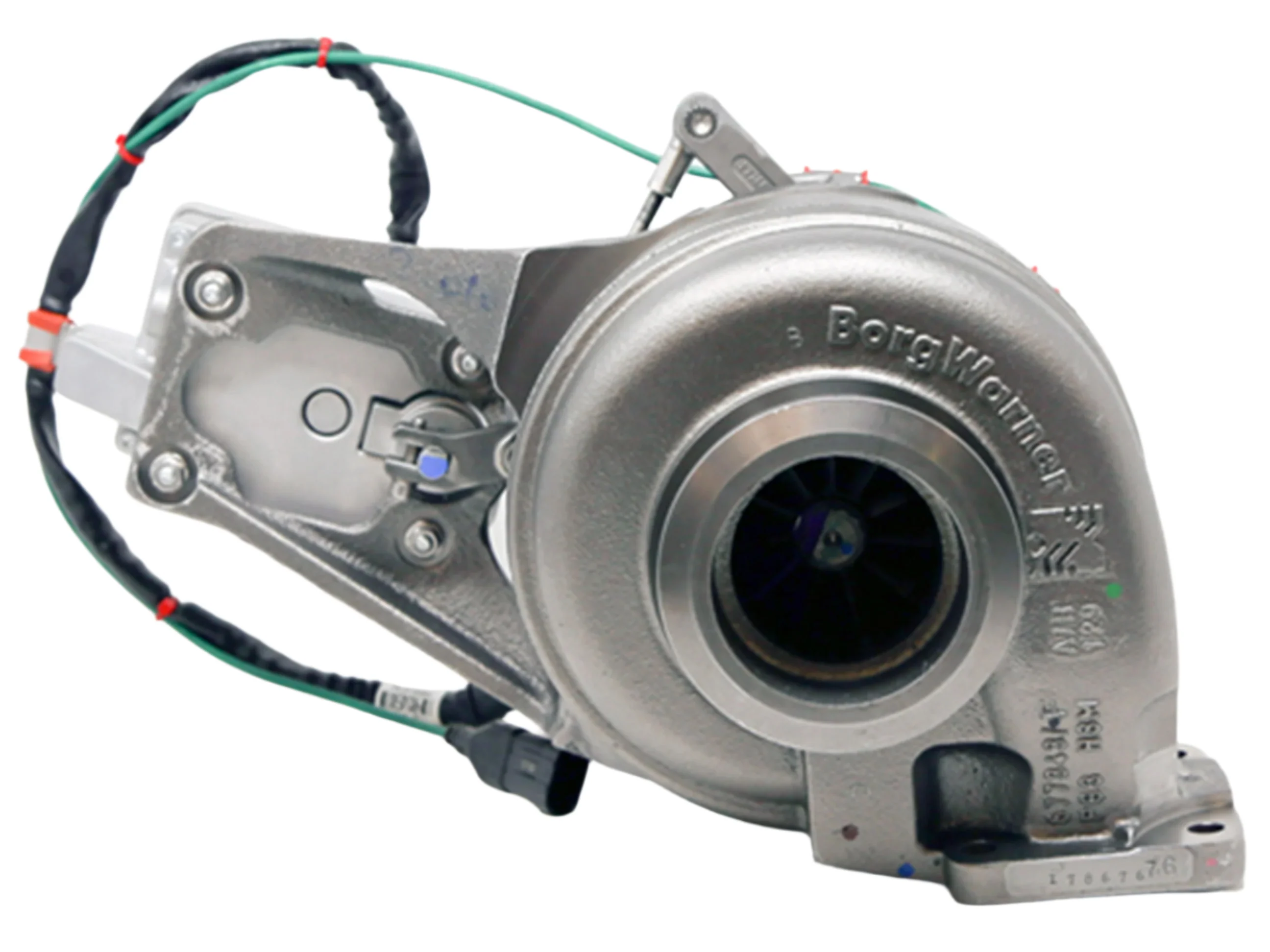

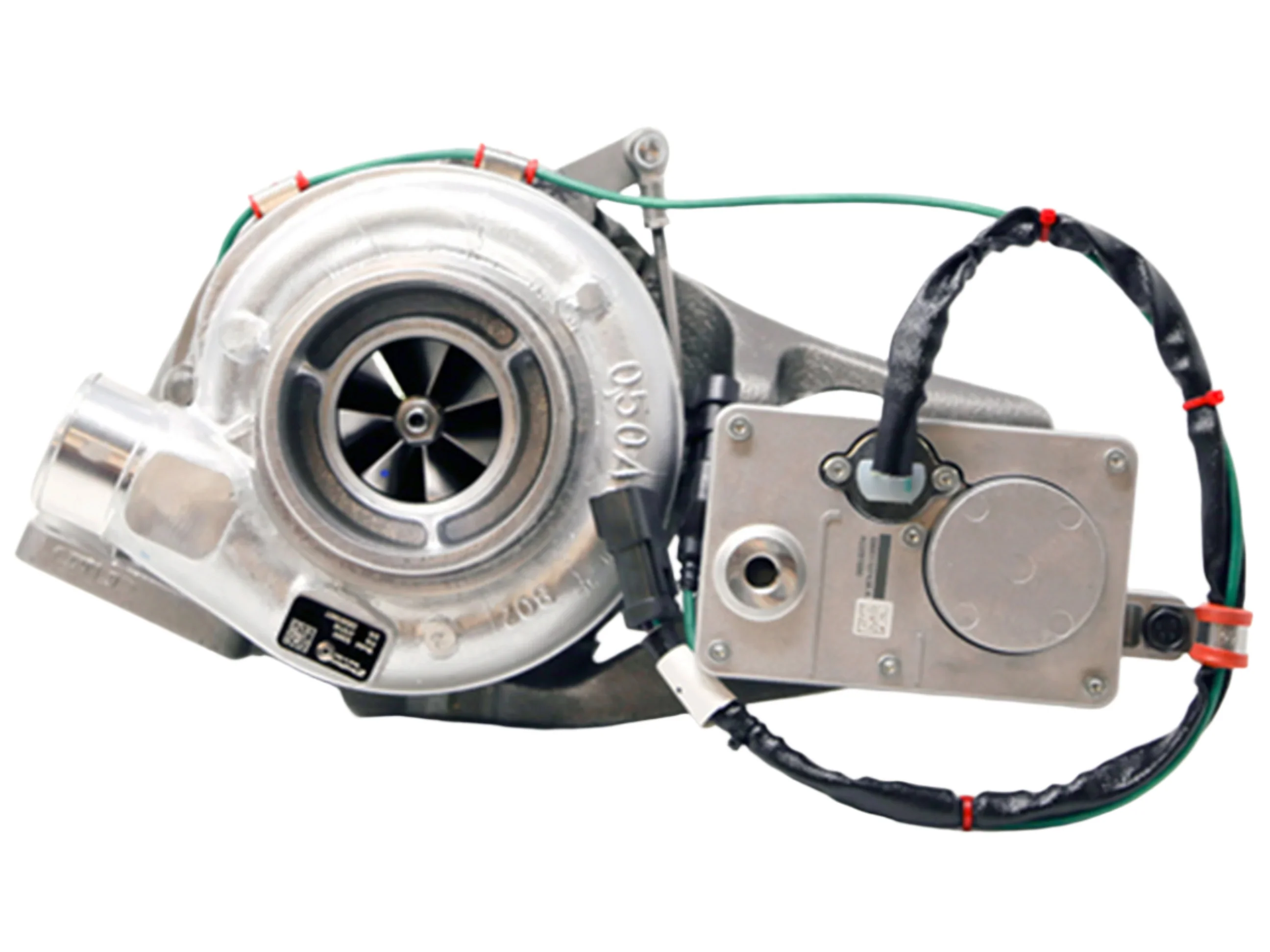

OEM REMANUFACTURED BORGWARNER TURBOCHARGER

This is a OEM REMANUFACTURED BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: There is a core charge of $325 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 478741
Interchangeable Number: 13709700020, 1370 970 0020, 1370-970-0020, 13709800020, 1370 980 0020, 1370-980-0020, 175327, 177090, 178544, 178740, 178741, 477090
OEM Number: RE523285, RE534514, RE534563, RE539713, SE502197, SE502639
Turbo Model: S300BV131
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA

Year: 2005-09
Engine: 6068, 6068H, 6068HDW66, 6068HDW71, 6068HDW76, 6068HDW76, 6068HF485 Powertech Plus
Engine Manufacturer: John Deere
Displacement: 6.8L, 6800 ccm, 6 Cylinders
Fuel: Diesel

Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 0°
Actuator (12 Volts): 59001107431 (5900 110 7431)
Actuator (24 Volts): RE---91
Back Plate: 667588 (Super Back)
Bearing Housing: 674370 (Oil cooled)
CHRA: 478711
Capscrew and Lockwasher Assembly: 167048
Clamp Plate (Compressor Side): 167545
Clamp Plate (Turbine Side): 174449
Compressor Housing: 178771
Compressor Wheel: 173796 (Ind. 54.64 mm, Exd. 77.8 mm, 7+7 Blades, Super Back)
Electronic Actuator: 174774 (174787)(DZ108095, RE523318, RM100084)(12 Volts, SRA)
Gasket (Oil Outlet): R521158
Gasket (Turbine Inlet): R519489
Hexagon Bolt: 314631
Linkage Service Kit: 177780 (SRA)
Speed Probe: 175216
Turbine Housing VTG Assembly: 179529
Turbine Wheel: (Ind. 62 mm, Exd. 70 mm, Trim 6.8, 11 Blades)

NOTE:

- 177090, 178741 is the same as RE539713 but has aluminum wheel.
- 178544, 178740 is the same as 178741 but has titanium wheel.
- VTG, electric actuator, speed sensor, 76 mm Al, 12V.

Application:
2005-09 John Deere Industrial with 6068, 6068H, 6068HF485 Powertech Plus Engine
2005-09 John Deere Skidder with 6068, 6068H, 6068HF485 Powertech Plus Engine
John Deere 748H, 748HTJ, 848H Skidder with 6068H Engine
John Deere Genset

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
