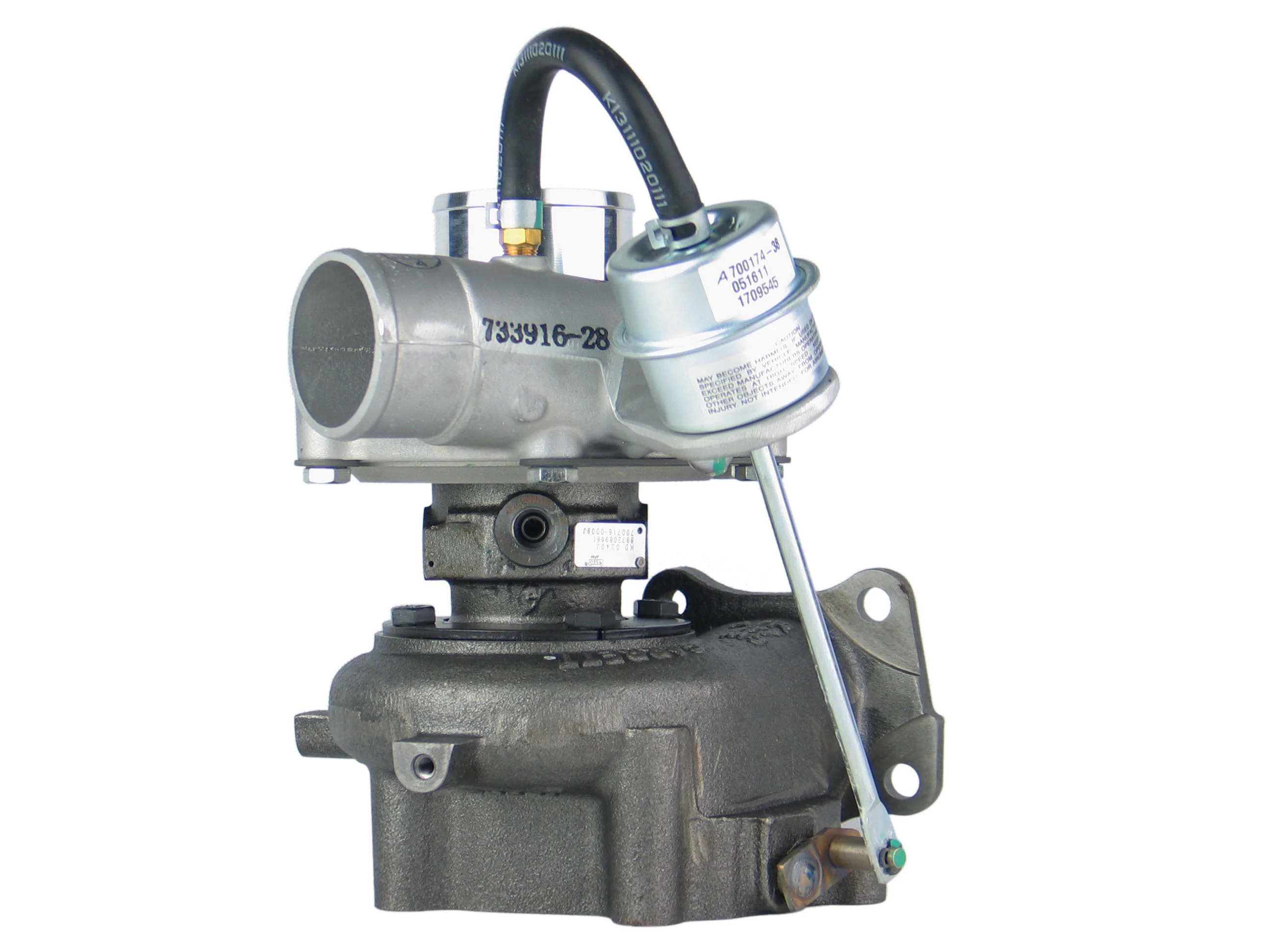

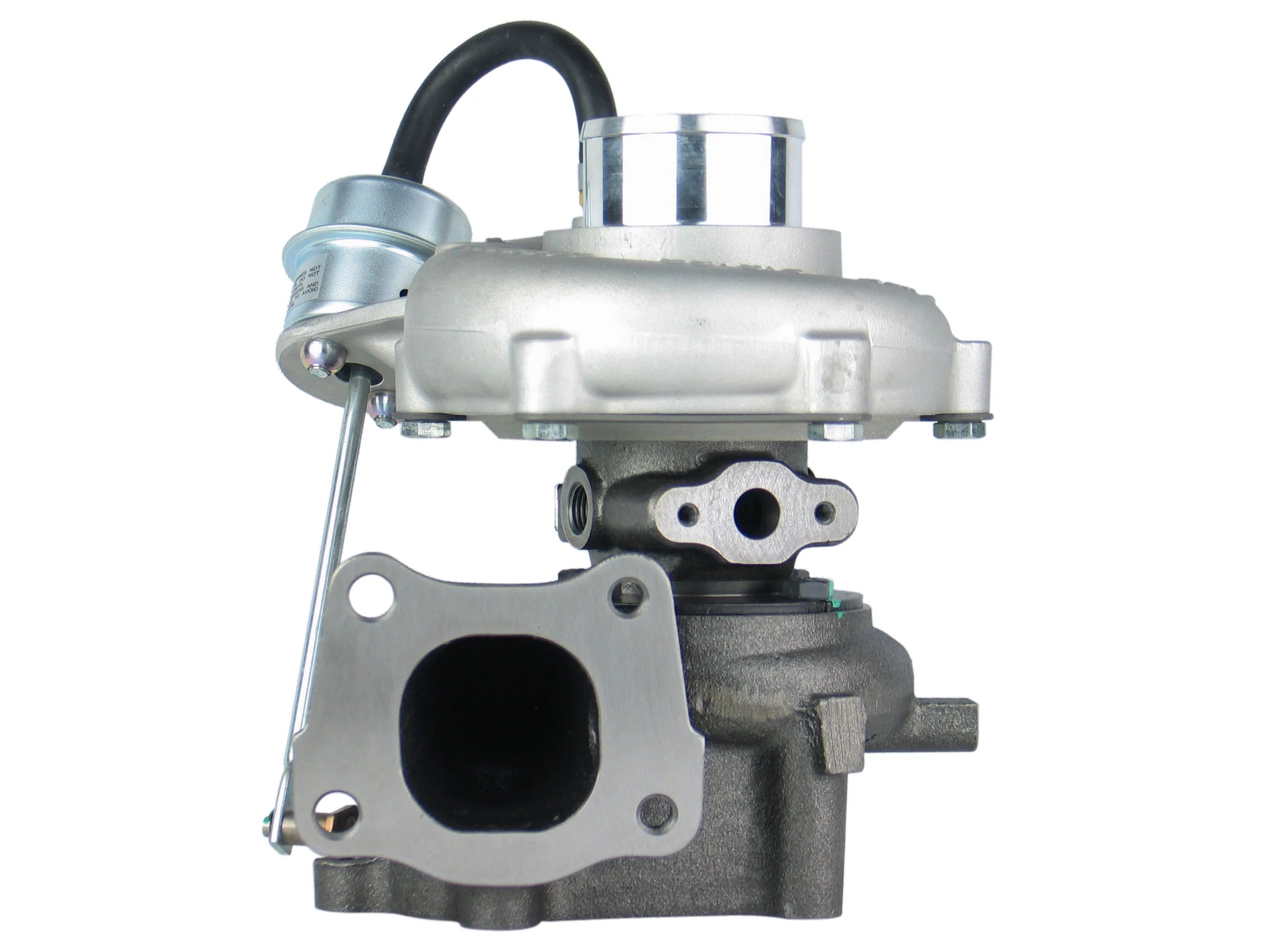

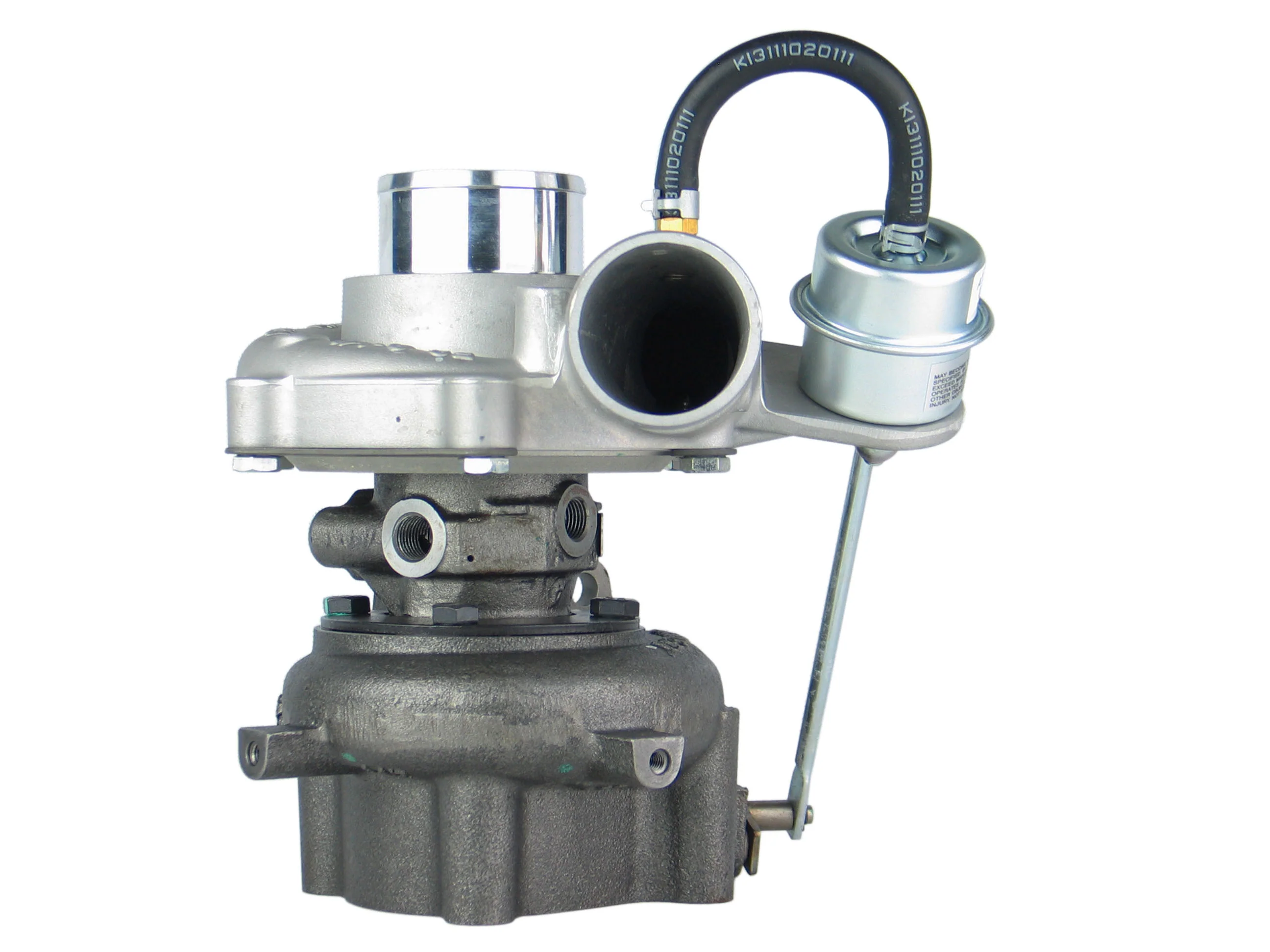

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 700716-5009
Interchangeable Number: 700716-0009, 700716-5009S, 700716-0001, 700716-5001, 700716-5001S, 700716-0002, 700716-5002, 700716-5002S, 700716-0003, 700716-5003, 700716-5003S, 700716-0004, 700716-5004, 700716-5004S, 700716-0005, 700716-5005, 700716-5005S, 700716-0006, 700716-5006, 700716-5006S, 700716-0007, 700716-5007, 700716-5007S, 700716-0011, 700716-5011, 700716-5011S
OEM Number: 8971894520, 897208966, 8972089660, 8972089661, 8972089662, 8972089663, 8972588110, 8972588111, 97208966, 97720290,
Turbo Model: GT2560LS
Manufacturer: Honeywell-Garrett

Year: 1997-
Engine: 4HE1XS, 4HE1XS Euro 3
Displacement: 4.8L, 4800 ccm, 4 Cylinders
Fuel: Diesel
Power: 125 kW/168 HP
Speed: 2800 RPM

Actuation: Pneumatic
Actuator: 700174-0038
Back Plate: 432280-0001 (1100025300)
Bearing Housing: 479807-0012/479802-0002
CHRA: 431876-0109 (431876-5109S)
Compressor Cover: 733916-0028/701390-0002
Compressor Wheel: 445436-0001 (Ind. 46.52 mm, Exd. 60.13 mm, Trim 2.30, 6+6 Blades)
Gasket (Oil Outlet): 210636 (2445067, Paper)
Gasket (Turbine Inlet): 210973 (8-97374-412-0)
Gasket (Turbine Outlet): 210974 (8-97039-777-1)
Gasket Kit: 215373
Heat Shield: 431055-0003/431055-0001
Repair Kit: 709143-0001 (1100025761)
Turbine Housing A/R: 0.60
Turbine Housing: 700717-0003
Turbine Wheel: 435737-0010 (Ind. 53.82 mm, Exd. 46.96 mm, Trim 62, 10 Blades)
Turbo Technology: Wastegate

Application:
1997- Isuzu NKR, NPR, NQR Truck with 4HE1XS Engine
GMC W4500 Truck

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
