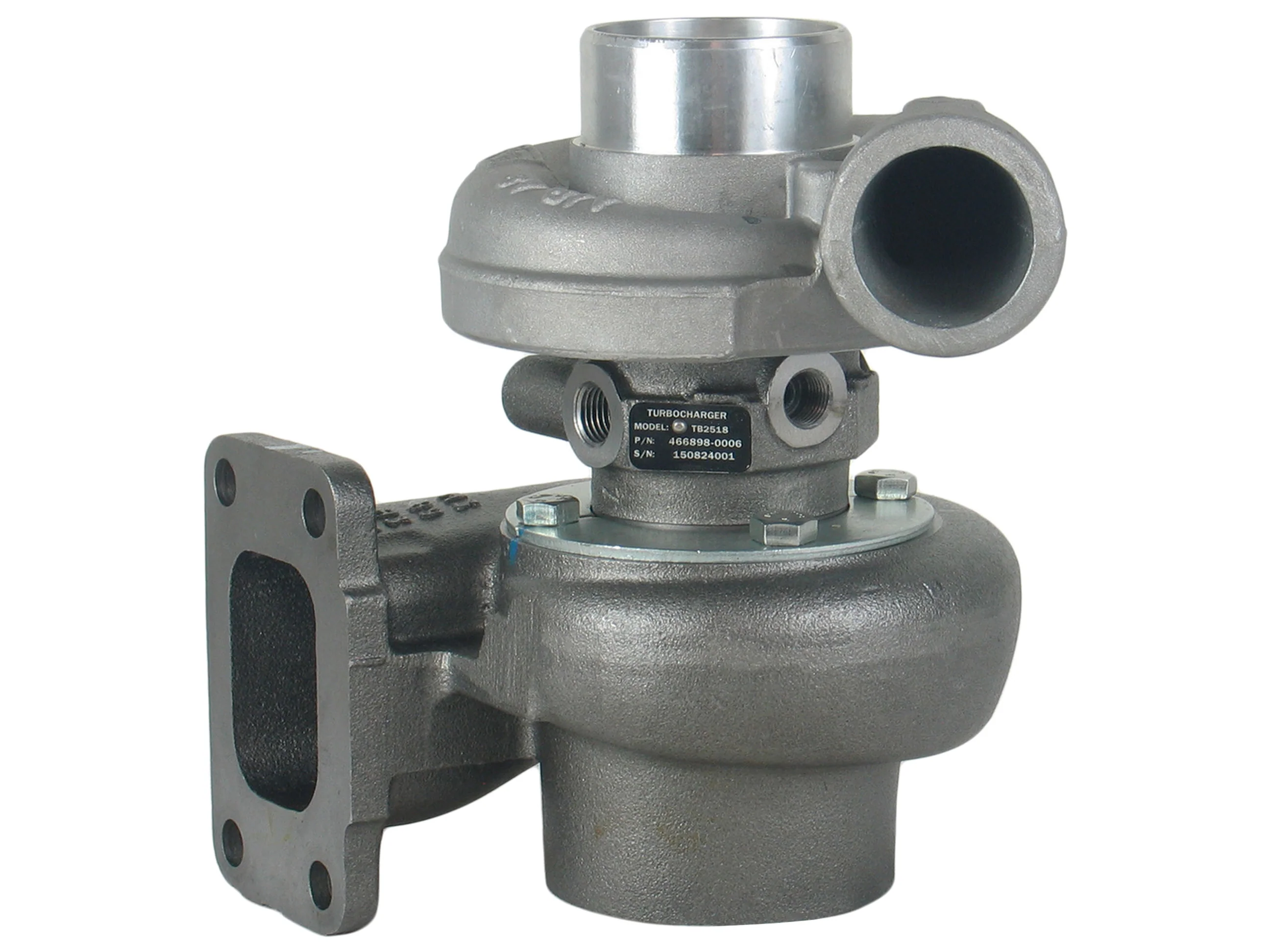

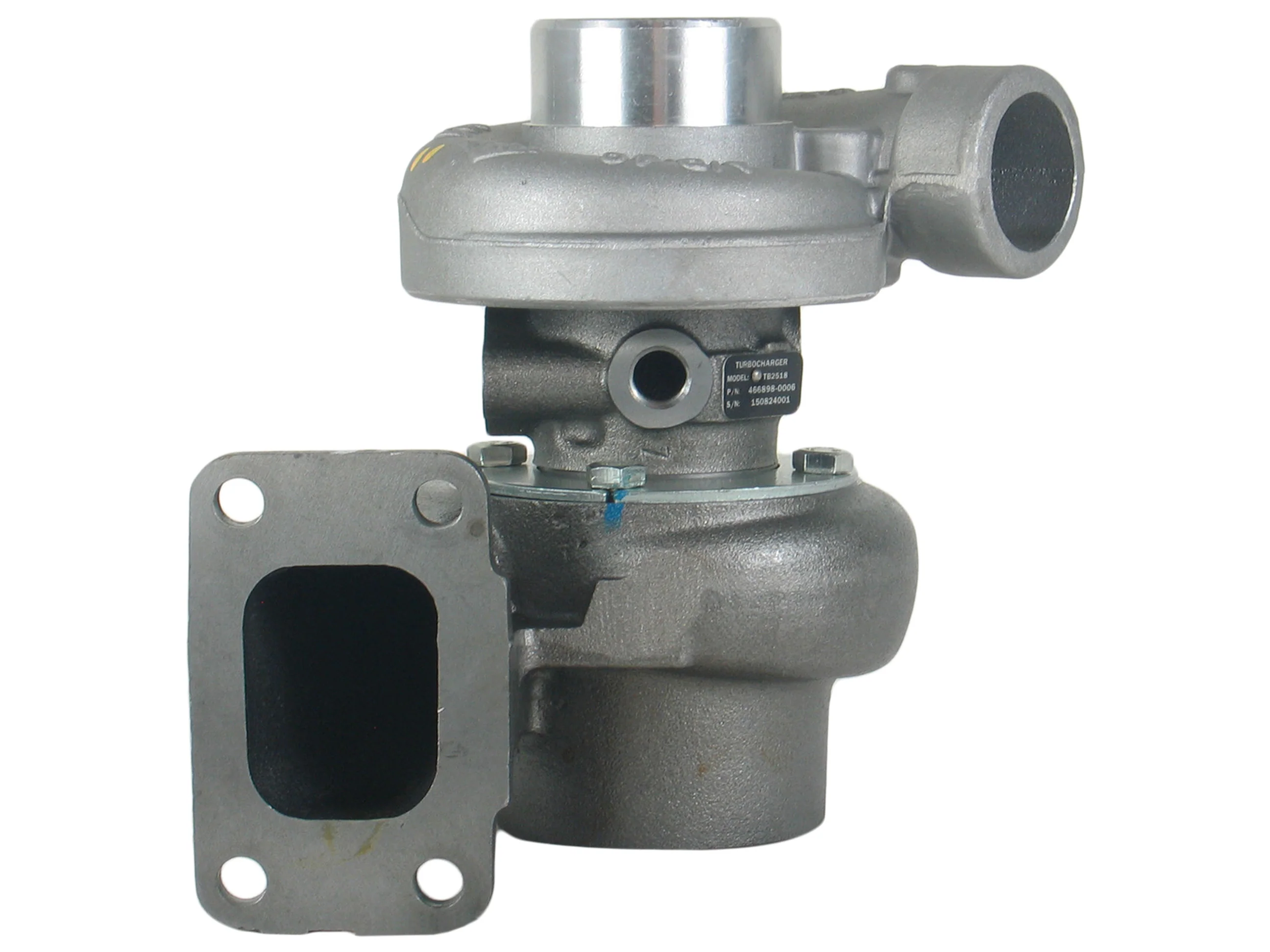

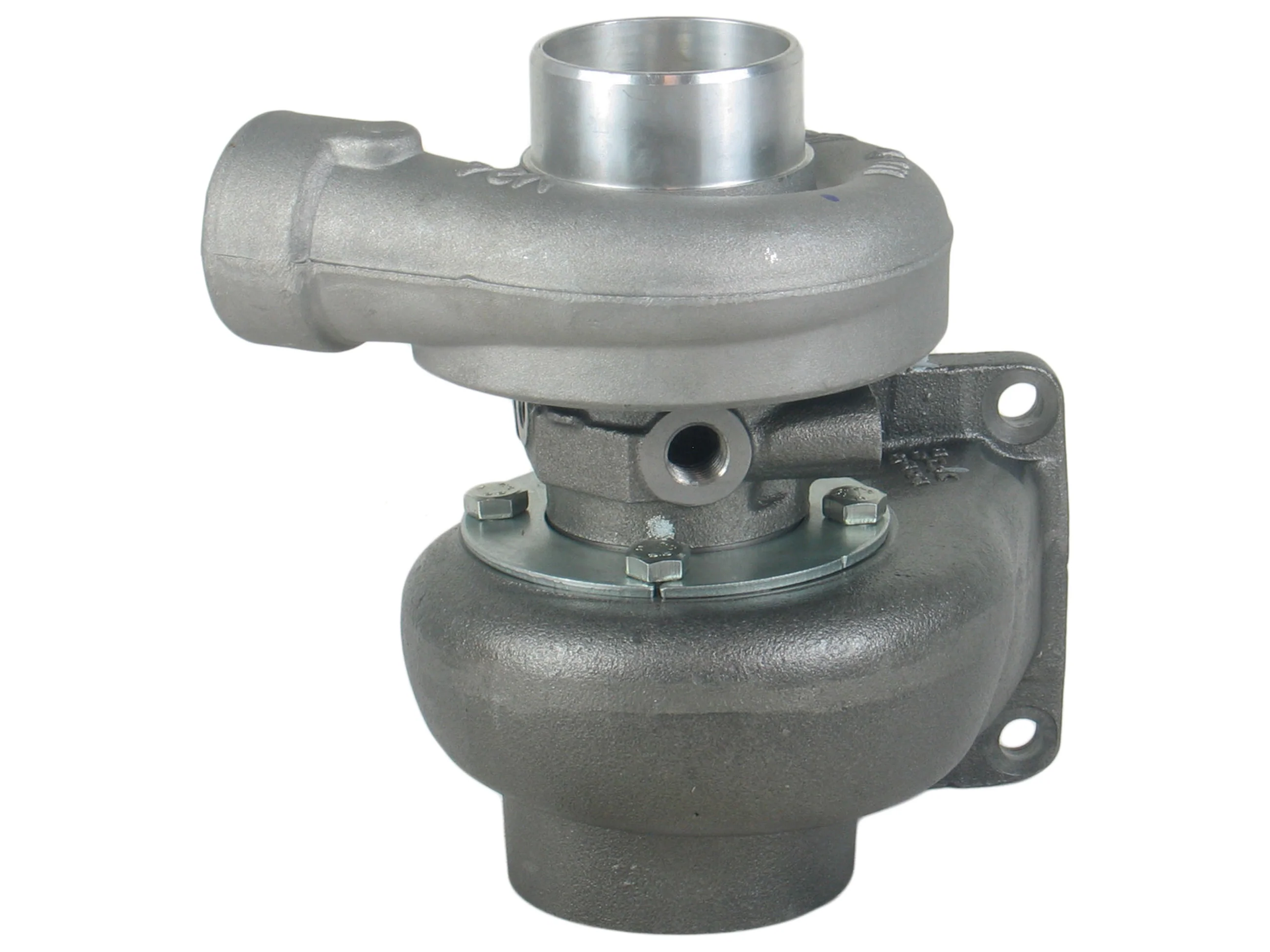

NEW TB2518 Turbo Isuzu Bus Truck NPR W4 W5500 4BD1 4BD2T Engine 466898-5006S
NEW DIRECT REPLACEMENT TURBOCHARGER
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 466898-5006S
Interchangeable Number: 466898-0006, 466898-5006, 466898-0007, 466898-5007, 466898-5007S,
OEM Number: 2910094020, 2910099000, 2910099001, 894382900, 8943829000, 8944805870, 89703207401, 8987320741
Replacement Number: 466898-0008, 466898-5008, 466898-5008S, 466898-0009, 466898-5009, 466898-5009S
Turbo Model: TB2518
Year: 2002-
Engine: 4BD1, 4BD1T, 4BD2T
Displacement: 3.9L, 3900 ccm
Angle α (Compressor Housing): 325°
Angle β (Turbine Housing): 295°
Back Plate, Seal Plate: 430612-0003 (432280-0001)(1100025300)
Bearing Housing: 479807-0013 (444357-0013)
CHRA: 430425-0055 (430425-0046, 430425-5055S)
Compressor Cover: 431022-0012
Compressor Wheel: 431350-0015 (431350-0001)(Ind. 39.79 mm, Exd. 51.37 mm, Trim 2.24, 6+6 Blades)
Heat Shield, Shroud: 443594-0001 (1100025341)
Repair Kit: 709342-0001 (445118-0001, 723421-0001, 430875-0001)(1100025763)
Turbine Housing A/R: 0.89
Turbine Housing: 443650-0005
Turbine Wheel: 435258-0005 (435243-0001, 435243-0004, 435243-0002, 435259-0001, 435737-0001, 435737-0006)(Ind. 35.25 mm, Exd. 47 mm, Trim 56, 11 Blades)(1100020435)
Application:
2002- GMC W4, W5500 with 4BD1T Engine
2002- Isuzu NPR Truck, Bus with 4BD1T Engine
TurboTurbos Part Number: TP01-0061-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 466898-5006S
Interchangeable Number: 466898-0006, 466898-5006, 466898-0007, 466898-5007, 466898-5007S,
OEM Number: 2910094020, 2910099000, 2910099001, 894382900, 8943829000, 8944805870, 89703207401, 8987320741
Replacement Number: 466898-0008, 466898-5008, 466898-5008S, 466898-0009, 466898-5009, 466898-5009S
Turbo Model: TB2518
Year: 2002-
Engine: 4BD1, 4BD1T, 4BD2T
Displacement: 3.9L, 3900 ccm
Angle α (Compressor Housing): 325°
Angle β (Turbine Housing): 295°
Back Plate, Seal Plate: 430612-0003 (432280-0001)(1100025300)
Bearing Housing: 479807-0013 (444357-0013)
CHRA: 430425-0055 (430425-0046, 430425-5055S)
Compressor Cover: 431022-0012
Compressor Wheel: 431350-0015 (431350-0001)(Ind. 39.79 mm, Exd. 51.37 mm, Trim 2.24, 6+6 Blades)
Heat Shield, Shroud: 443594-0001 (1100025341)
Repair Kit: 709342-0001 (445118-0001, 723421-0001, 430875-0001)(1100025763)
Turbine Housing A/R: 0.89
Turbine Housing: 443650-0005
Turbine Wheel: 435258-0005 (435243-0001, 435243-0004, 435243-0002, 435259-0001, 435737-0001, 435737-0006)(Ind. 35.25 mm, Exd. 47 mm, Trim 56, 11 Blades)(1100020435)
Application:
2002- GMC W4, W5500 with 4BD1T Engine
2002- Isuzu NPR Truck, Bus with 4BD1T Engine
TurboTurbos Part Number: TP01-0061-12
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
