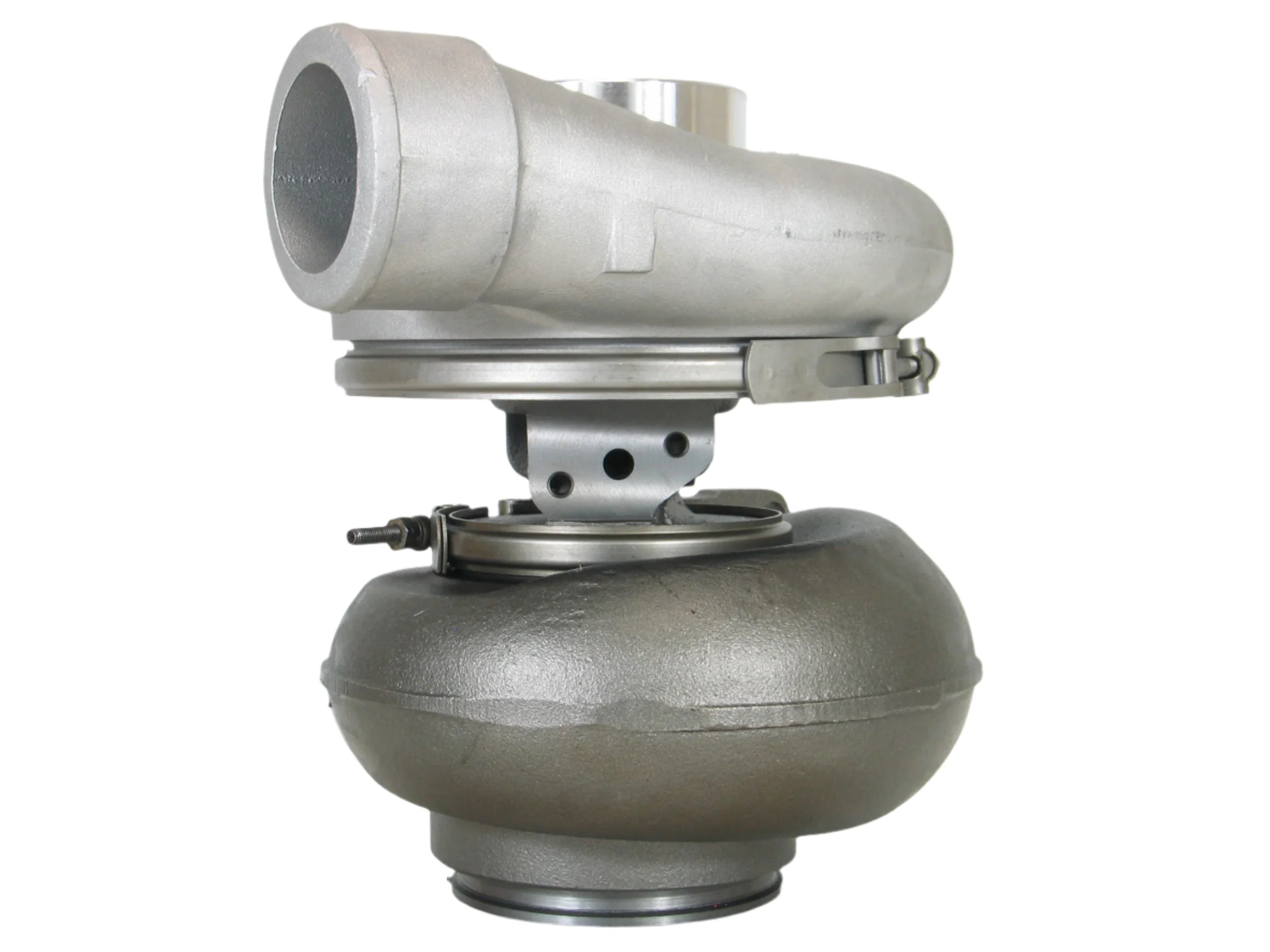

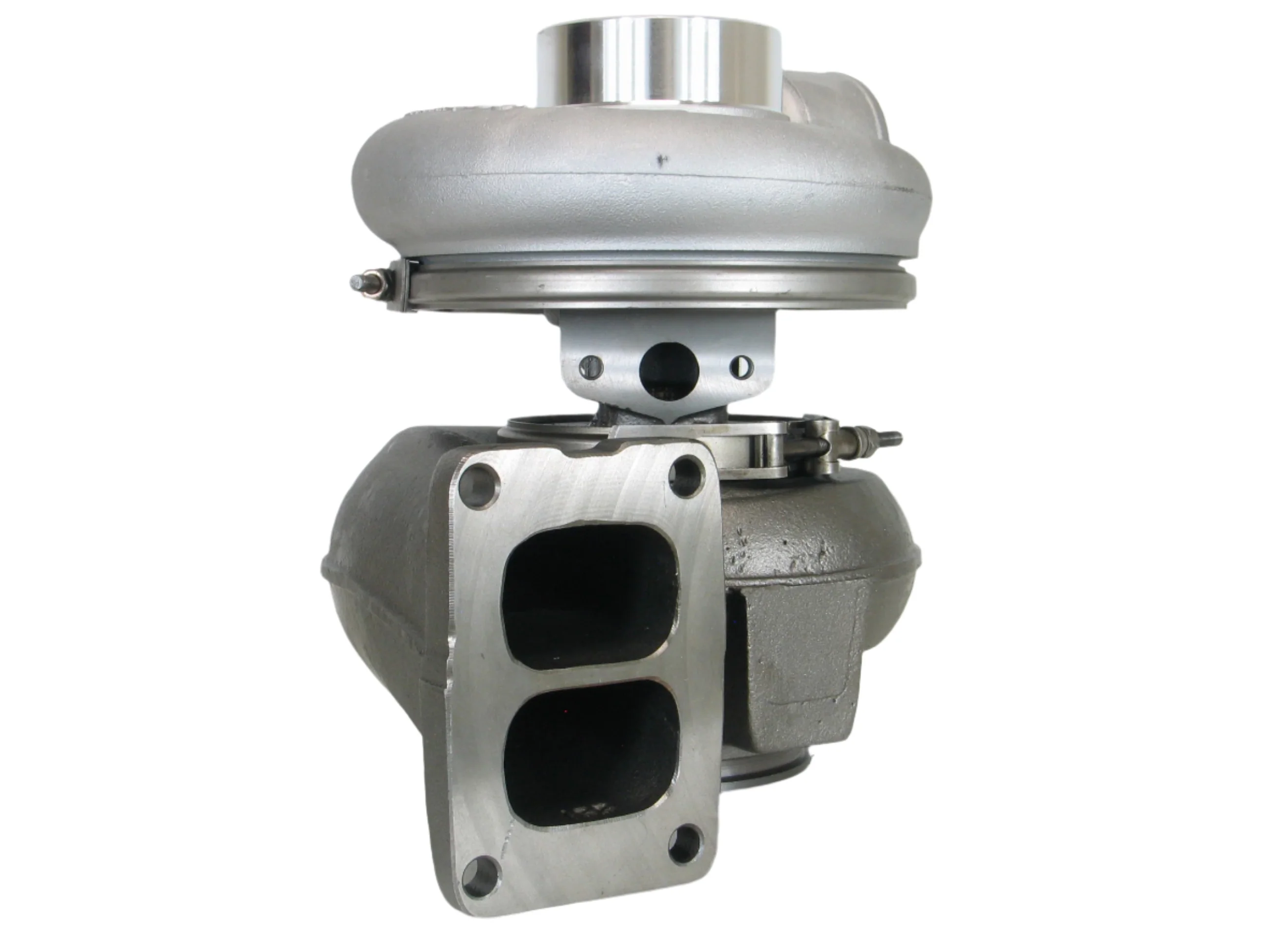

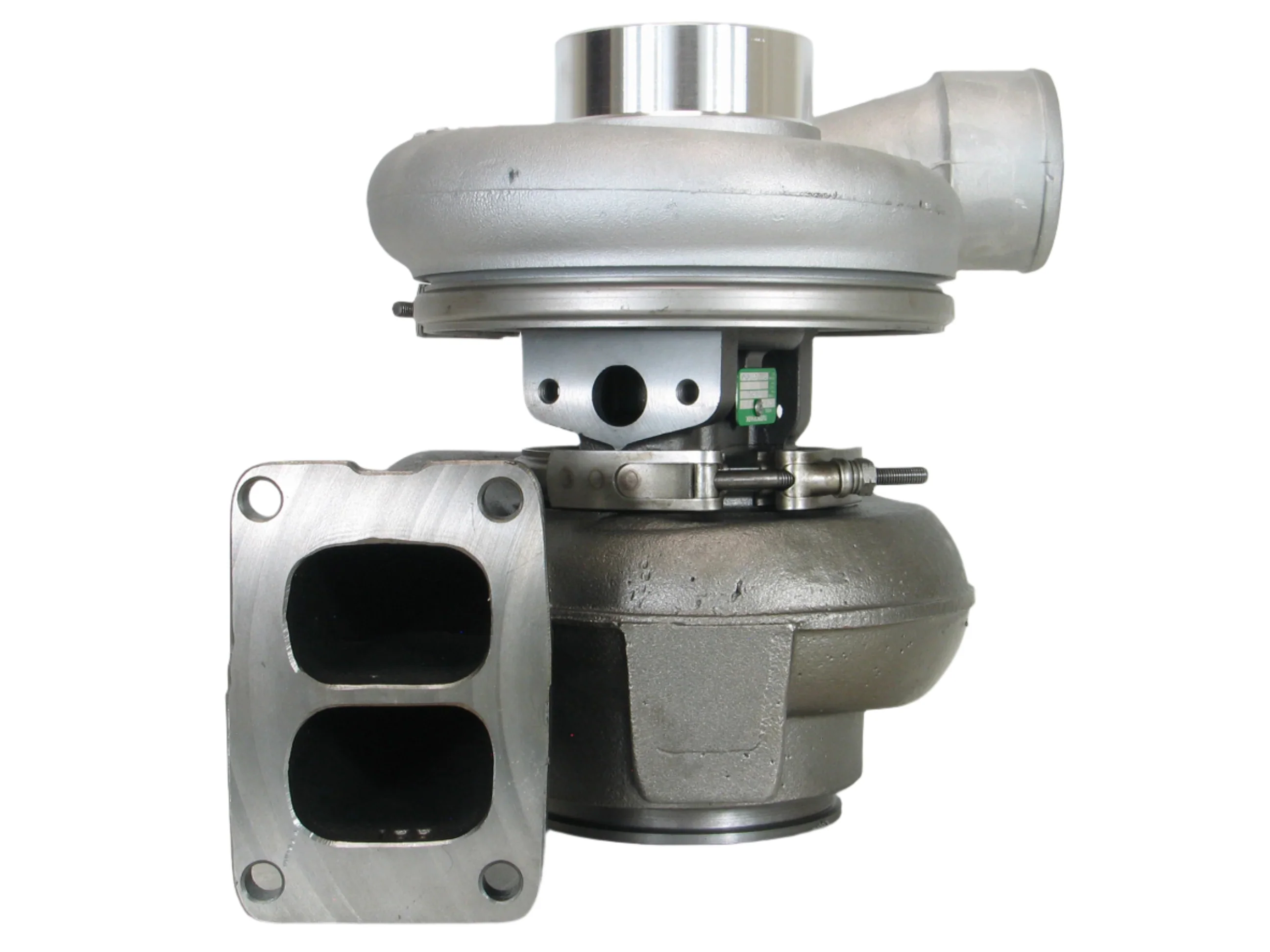

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 315650
Interchangeable Number: 314195, 315616
OEM Number: 6152-82-8210, 6152828210, 6152-82-8410, 6152828410
Serial Number: 60721-UP
Turbo Model: S3A, S3A/91H36AEBL/1.55CF6

Year: 1994-03
Engine: SA6D125, SA6D125E, SA6D125E-2A, SA6D125E-2A-50, SA6D125E-2A-57, SA6D125E-2A-7, SA6D125E-2A-C, SA6D125E-2A-C7, SA6D125E-2C-L, SA6D125E-2C-L7, SA6D125E-2C-TA
Displacement: 11.0L, 11000 ccm, 6 Cylinders
Fuel: Diesel
Power: 238 kW/324 HP
Speed: 2000

Angle α (Compressor Housing): 215/330°
Angle β (Turbine Housing): 30°
Back Plate: 199646 (316010)(304030001)
Bearing Housing: 313607 (312772, 169457)(SP313607)(Oil Cooled)(1900011340E, 303050001)
CHRA: 314473 (SP314473)(1000070106)
Compressor Cover: 314262 (SP314262)
Compressor Wheel: 314554 (SP314554)(Ind. 63.3 mm, Exd. 91.5 mm, 7+7 Blades)(1200016768)
Gasket (Oil Outlet): 61515187213
Gasket (Turbine Inlet): 6151115710
Heat Shield: 197394 (7C9531)(306010005)(1253400300)
Repair Kit: 318392 (1252103757)
Turbine Housing: 314555 (SP314555)
Turbine Wheel: 314613 (Ind. 83.51 mm, Exd. 73.3 mm, 10 Blades)(1100016553)

NOTE: Also for 275 kW at 2200 RPM.

Application:
1994-03 Komatsu PC400 Hydraulic Excavator with SA6D125 Engine
1996-02 Komatsu HD205-5 Dump Truck with SA6D125/E Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
