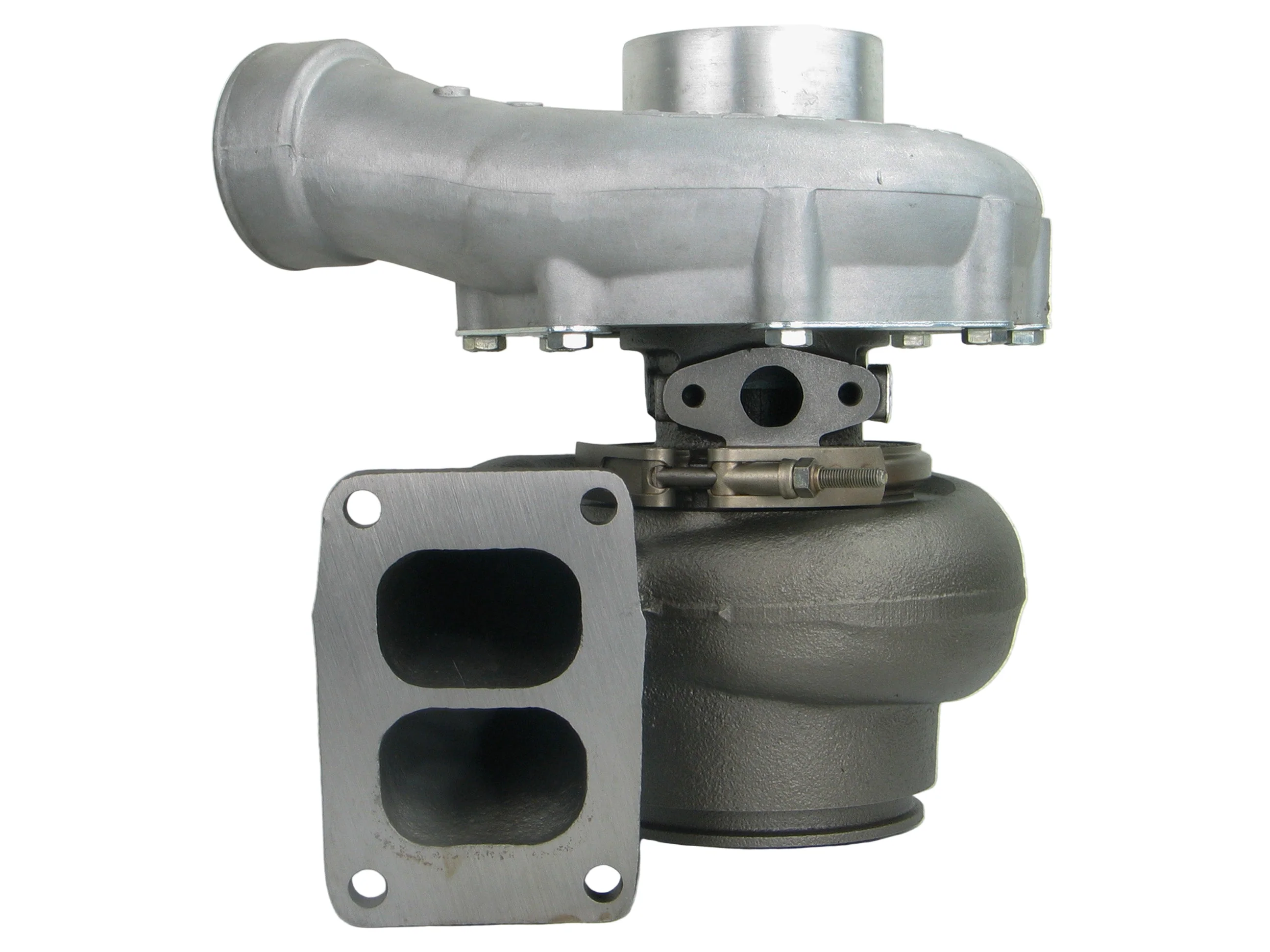

TA4532 Turbo Komatsu PC400-3 Power Shovel Earth Moving S6D125 11.0L 465105-5003
TURBOTURBOS REMANUFACTURED TURBOCHARGER
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 465105-5003
Interchangeable Number: 465105-0003, 465105-5003S, 314195, 315616, 315650, 318110, 318127, 465105-0002, 465105-5002, 465105-5002S, 465105-0010, 465105-5010, 465105-5010S
OEM Number: 6152-81-8210, 6152818210, 6152-81-8220, 6152818220
Turbo Model: TA4532
Engine: D755, S6D125, SA6D125, SAA6D125
Displacement: 11.0L, 11046 ccm, 6 Cylinders
Emission Standard: T-0
Fuel: Diesel
Angle α (Compressor Housing): 145°
Angle β (Turbine Housing): 0°
Back Plate: 442752-0001
Bearing Housing: 410310-0001
CHRA: 441398-0052 (441398-5052S)
Compressor Cover: 443209-0028
Compressor Wheel: 441793-0010 (Ind. 84 mm, Exd. 60.5 mm, Trim 52, 6+6 Blades)(94417930010)
Gasket (Oil Inlet): 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Gasket (Turbine Inlet): 132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003)
Gasket Kit: 215052
Heat Shield: 410366-0003/410366-0004
Repair Kit: 468132-0000
Turbine Housing A/R: 1.40
Turbine Housing: 442262-0104
Turbine Wheel: 441064-0001 (Ind. 82.2 mm, Exd. 71.6 mm, 11 Blades)
Application:
Komatsu Earth Moving with S6D125 Engine
Komatsu PC400 Hydraulic Excavator with SA6D125, SAA6D125 Engine
Komatsu PC400-3 Power Shovel with S6D125 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
