NEW OEM Holset HX55 Turbo Iveco Truck Combine Harvester Cursor 9 4033185 4043648

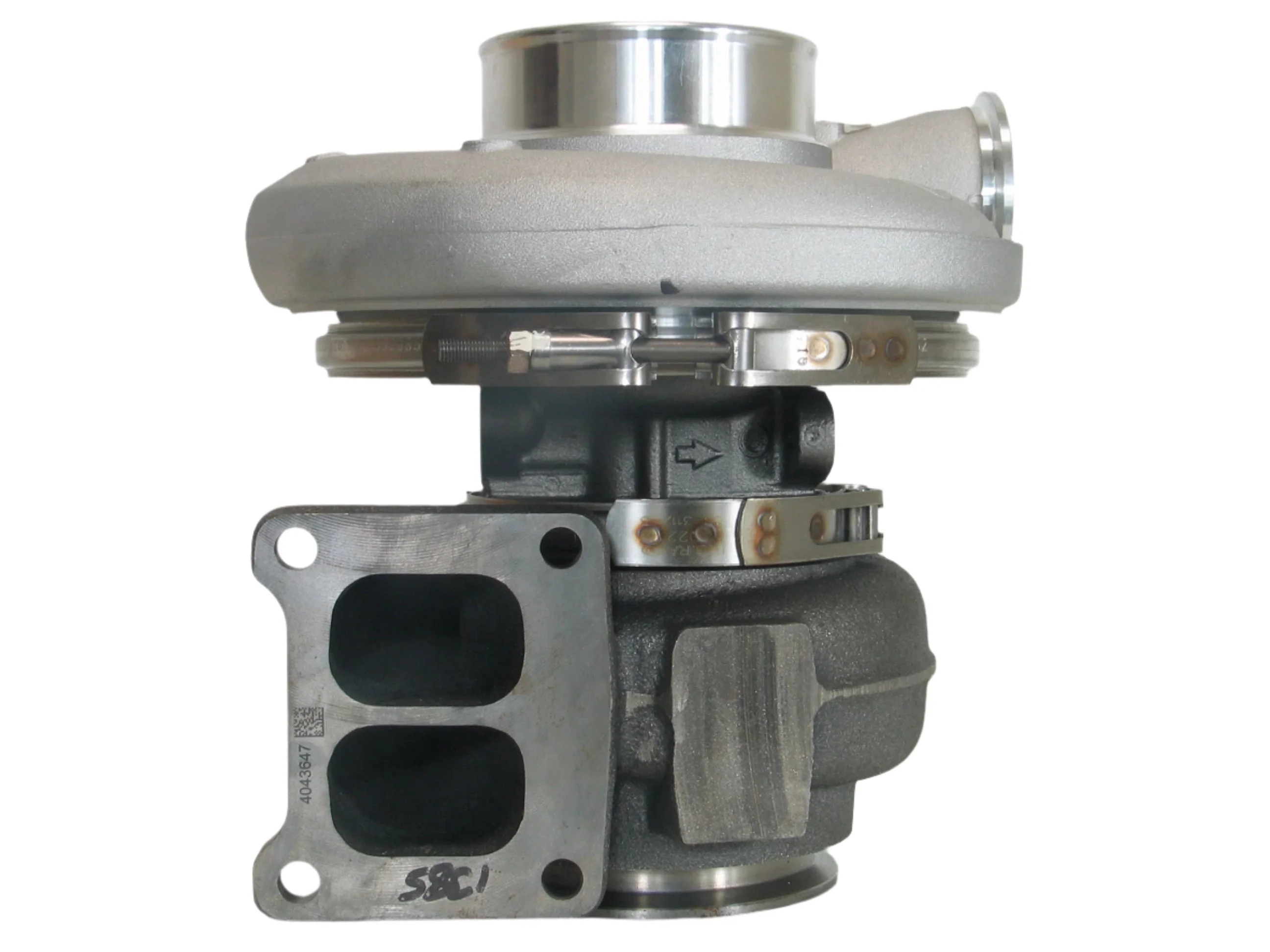

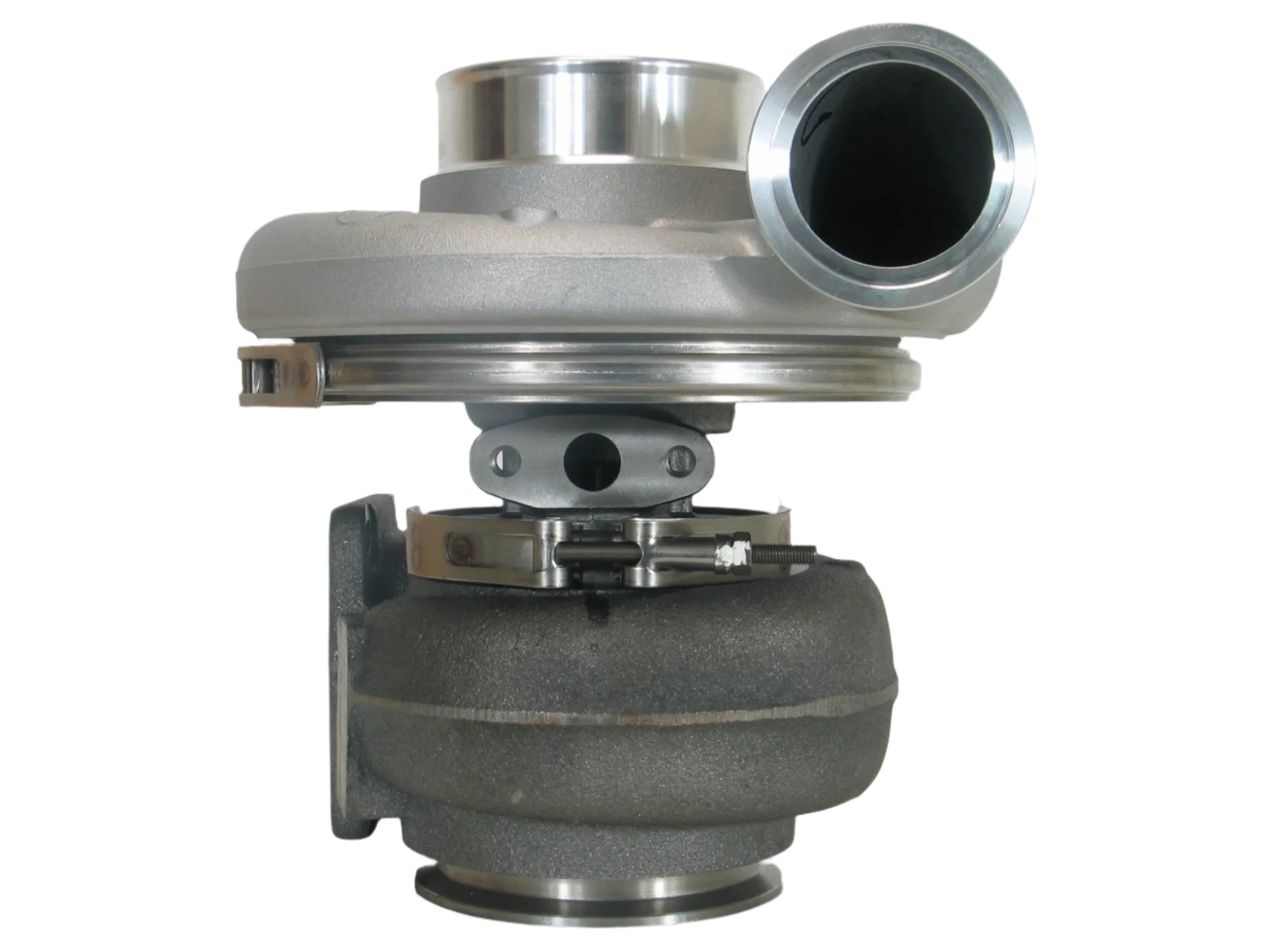

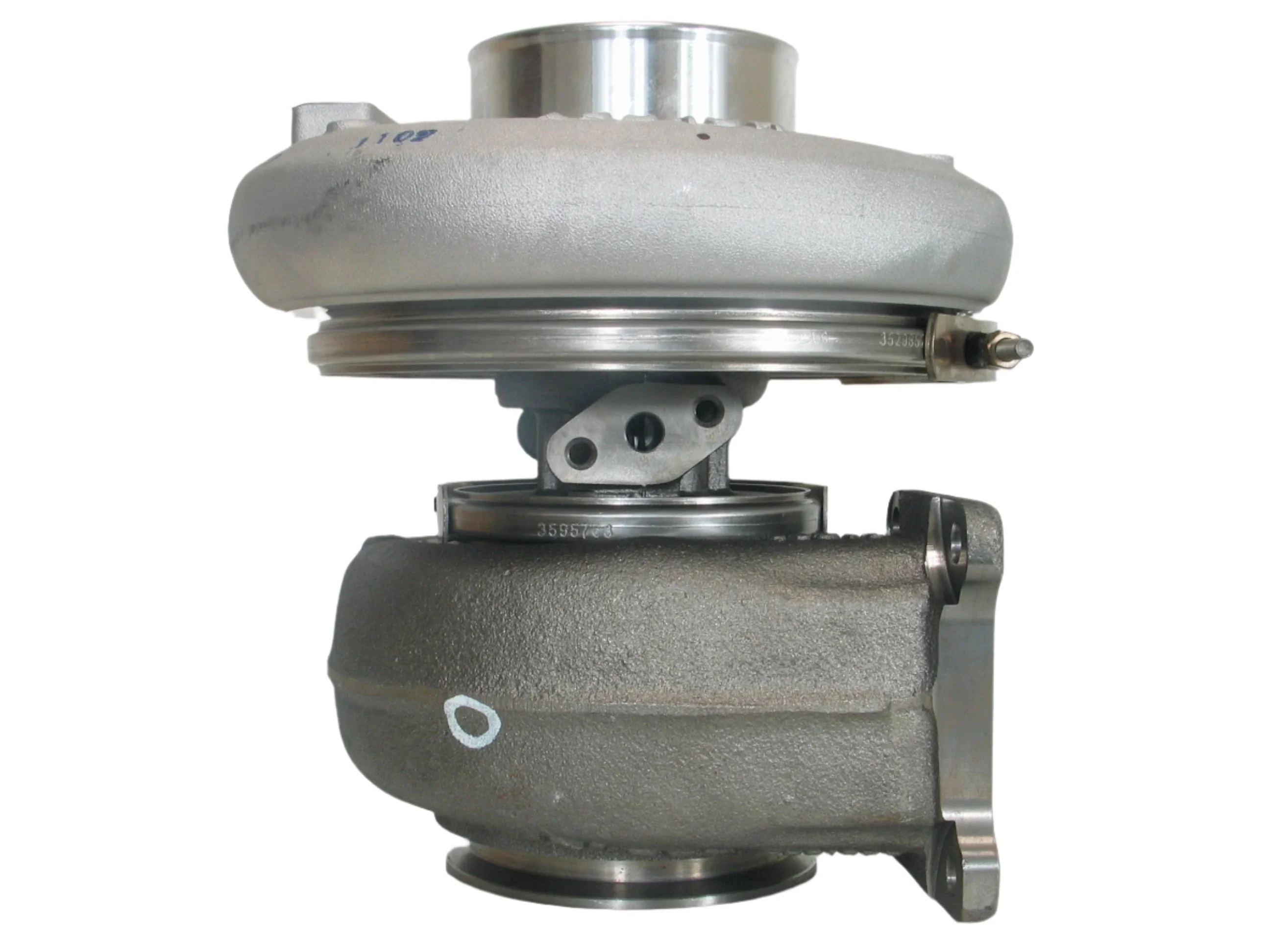

BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4043648
Interchangeable Number: 4033185H, 4033185HX, 4041262, 5322006
OEM Number: 05041790110, 05041989000, 05042134420, 3775343, 3775344, 4033185, 4043649, 4044481, 4044953, 504179011, 5041790110, 504179011R, 504198900, 5041989000, 504198900R, 5042134420, 5355228, 5355229, 5801518760
Turbo Model: HX55
Manufacturer: Holset
Year: 2006-
Engine: Cursor 9
Engine Manufacturer: Iveco
Fuel: Diesel
Power: 350/360 HP
Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 90/270°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 3590231 (4039258)(Oil Cooled)(1900011334)
CHRA: 4032093 (1000020178)
Compressor Wheel: 3593629 (4040739, 4040740, 4041666)(Ind. 65.12 mm, Exd. 97.66 mm, Trim 6.09, 7+7 Blades, Super Back)(1200016217)
Gasket Kit: 215622 (2090505445)
Heat Shield: 3529846 (3533038)(1153055340, 2030016003)
Repair Kit: 3575181 (3580762)(1153055751, 5000020023)
Turbine Wheel: 4042782 (Ind. 85.85 mm, Exd. 71.95 mm, Trim 12.42, 12 Blades)(1100016395)
Application:
2006- Iveco Truck, Combine Harvester with Cursor 9 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4043648
Interchangeable Number: 4033185H, 4033185HX, 4041262, 5322006
OEM Number: 05041790110, 05041989000, 05042134420, 3775343, 3775344, 4033185, 4043649, 4044481, 4044953, 504179011, 5041790110, 504179011R, 504198900, 5041989000, 504198900R, 5042134420, 5355228, 5355229, 5801518760
Turbo Model: HX55
Manufacturer: Holset
Year: 2006-
Engine: Cursor 9
Engine Manufacturer: Iveco
Fuel: Diesel
Power: 350/360 HP
Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 90/270°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 3590231 (4039258)(Oil Cooled)(1900011334)
CHRA: 4032093 (1000020178)
Compressor Wheel: 3593629 (4040739, 4040740, 4041666)(Ind. 65.12 mm, Exd. 97.66 mm, Trim 6.09, 7+7 Blades, Super Back)(1200016217)
Gasket Kit: 215622 (2090505445)
Heat Shield: 3529846 (3533038)(1153055340, 2030016003)
Repair Kit: 3575181 (3580762)(1153055751, 5000020023)
Turbine Wheel: 4042782 (Ind. 85.85 mm, Exd. 71.95 mm, Trim 12.42, 12 Blades)(1100016395)
Application:
2006- Iveco Truck, Combine Harvester with Cursor 9 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
