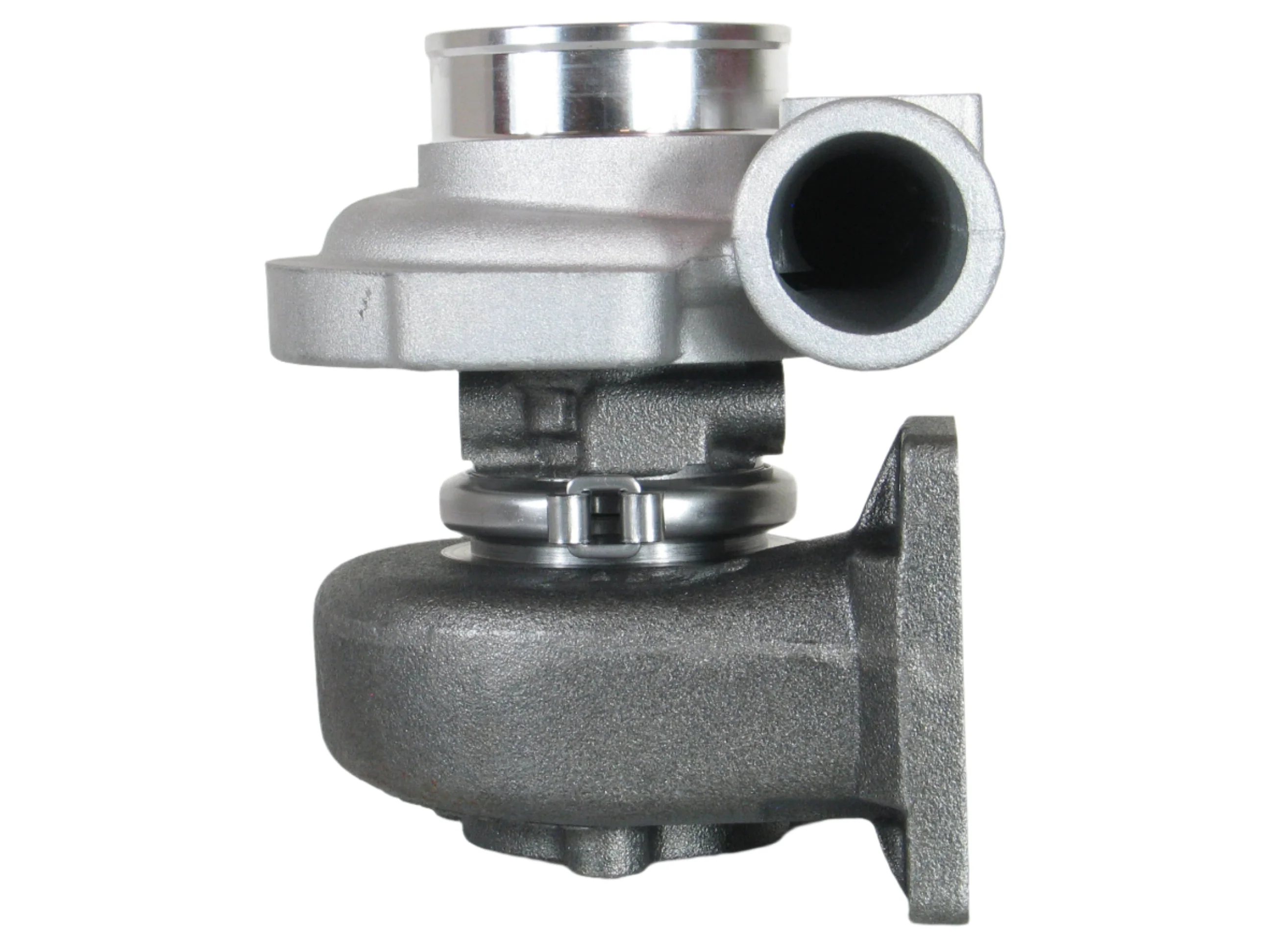

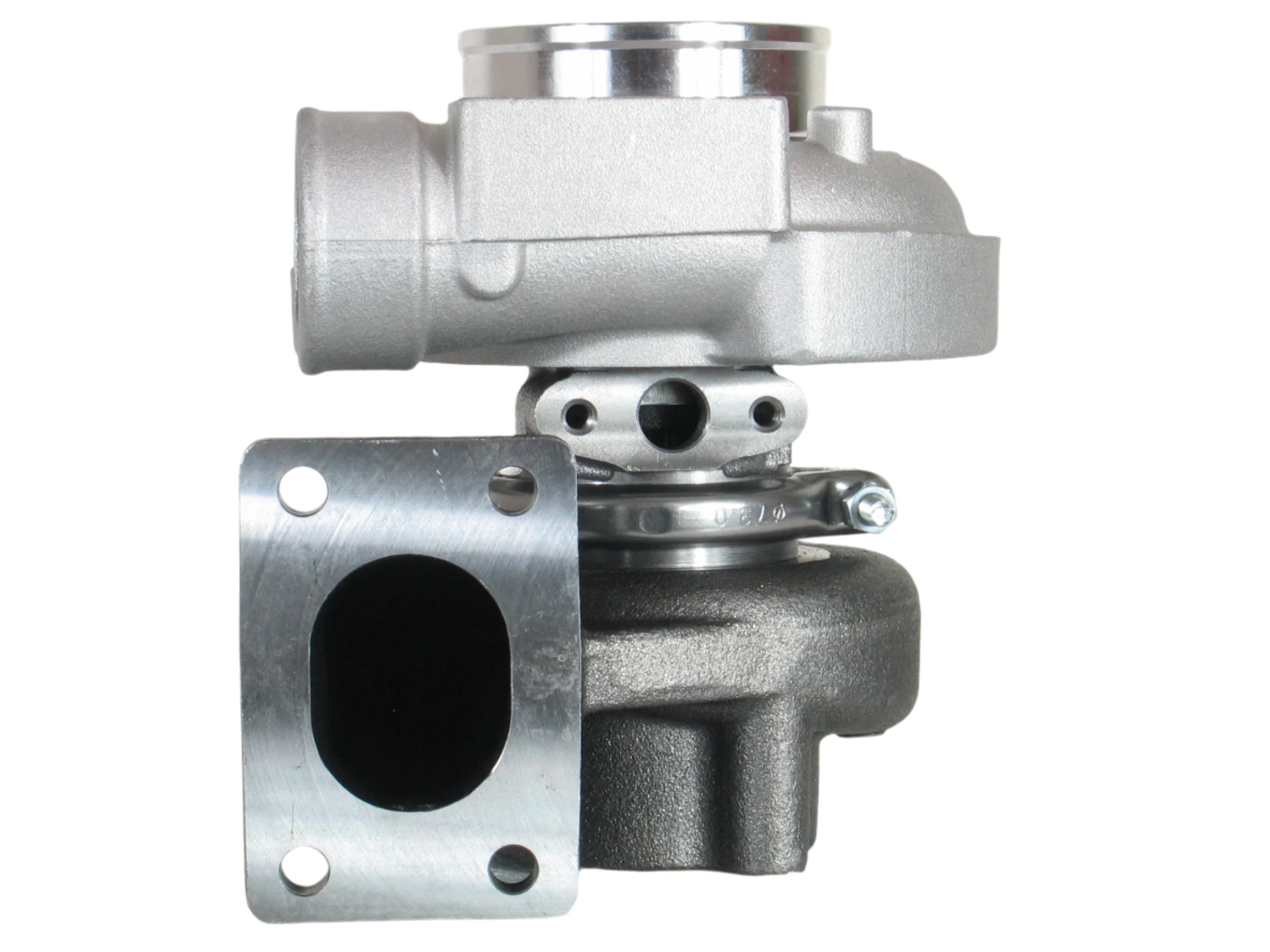

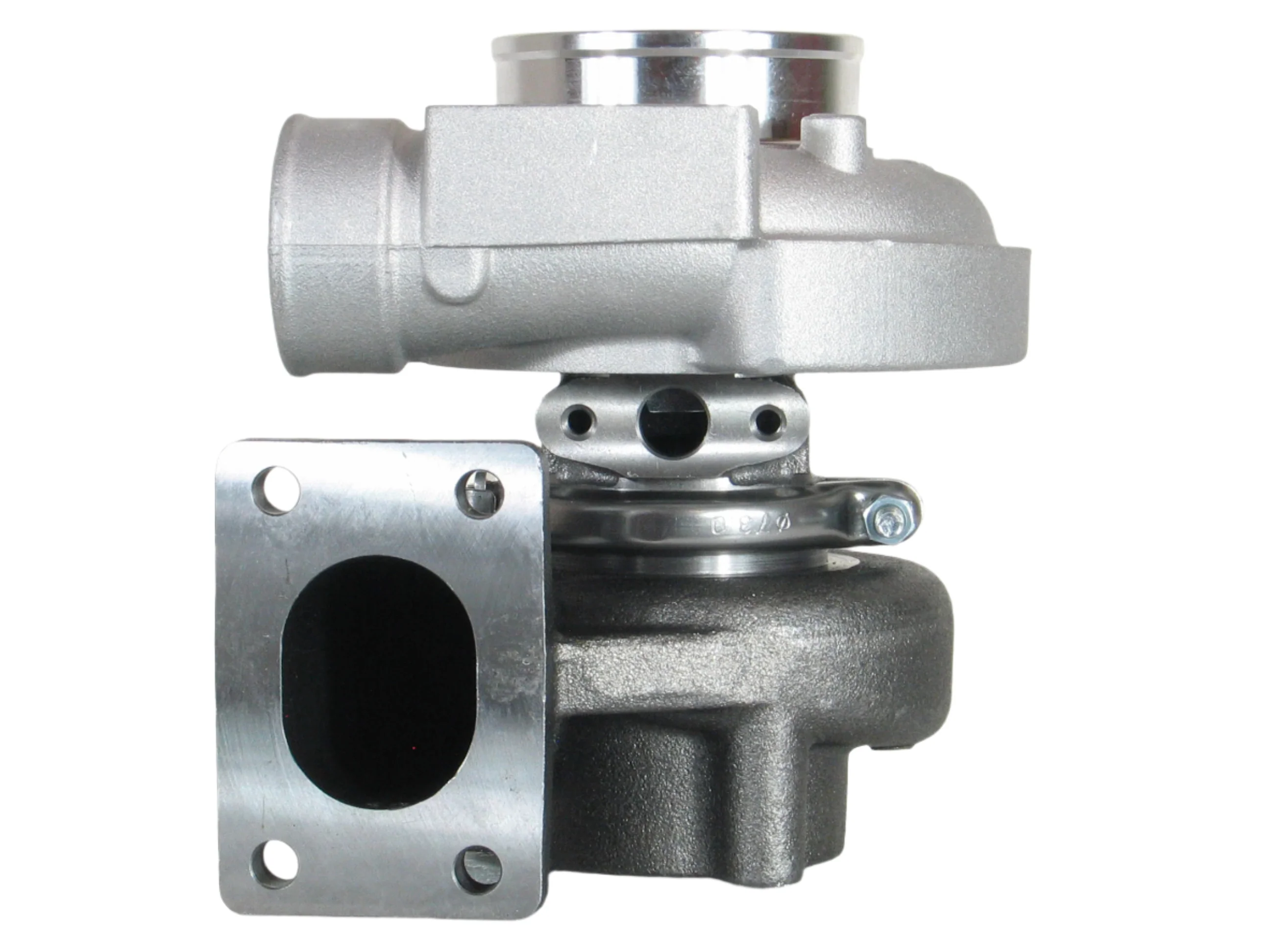

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3599879
Interchangeable Number: 3599879H, 3599880, 4033587, 4033587H, 404193, 4042193, 4033587, 4033587H, 404193, 4042193, 2835001,2835000, 4033944H, 3599880, 4042193, 3599879H, 3599880, 4033587, 4033587H, 404193, 4042193, 2835001, 2835000, 4033944H, 3599880, 4042193, 3599879H, 3599880, 4033587, 4033587H, 4042193, 1700320415, 2835000, 2835001, 2835002, 2852507, 2852507R, 2857052, 3599879, 3599880, 4033587, 4033587H, 4042193, 4045368, 4045367, 4033253H
OEM Number: 2852507, 504043175, 504226543
Turbo Model: HX25, HX25-TB11K/A11CXL

Year: 2004-
Engine: NEF
Engine Manufacturer: Iveco

Angle α (Compressor Housing): 175°
Angle β (Turbine Housing): 360°
Back Plate: 49135-00044 (1153025300)(S/Back)
Bearing Housing: 49189-26400 (1153025450)(Oil Cooled)
CHRA: 3539071 (1153025901)
Compressor Wheel: (Ind. 38.76 mm, Exd. 55.88 mm, 6+6 Blades, Super Back)(1153025400)
Gasket (Oil Outlet): 210243 (Gasket Paper)
Gasket (Turbine Inlet): 210218 (Stainless Steel)
Gasket (Turbine Outlet): 210889 (Stainless Steel)
Heat Shield: 49183-19300 (11530253408)
Repair Kit: (1153025751)
Turbine Wheel: 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1153025435)

Application:
2004- Iveco Industrial, Agricultural, Truck with NEF Engine
New Holland Equipment L190, C190, U80 with Tier 3 Engine
Case 440, 440ct, 450, 450ct, 465 with Tier 2, Tier 3 Engine

IVECO TAA / TC with Fiat NEF Engine

TurboTurbos Part Number: TP05-0195-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
