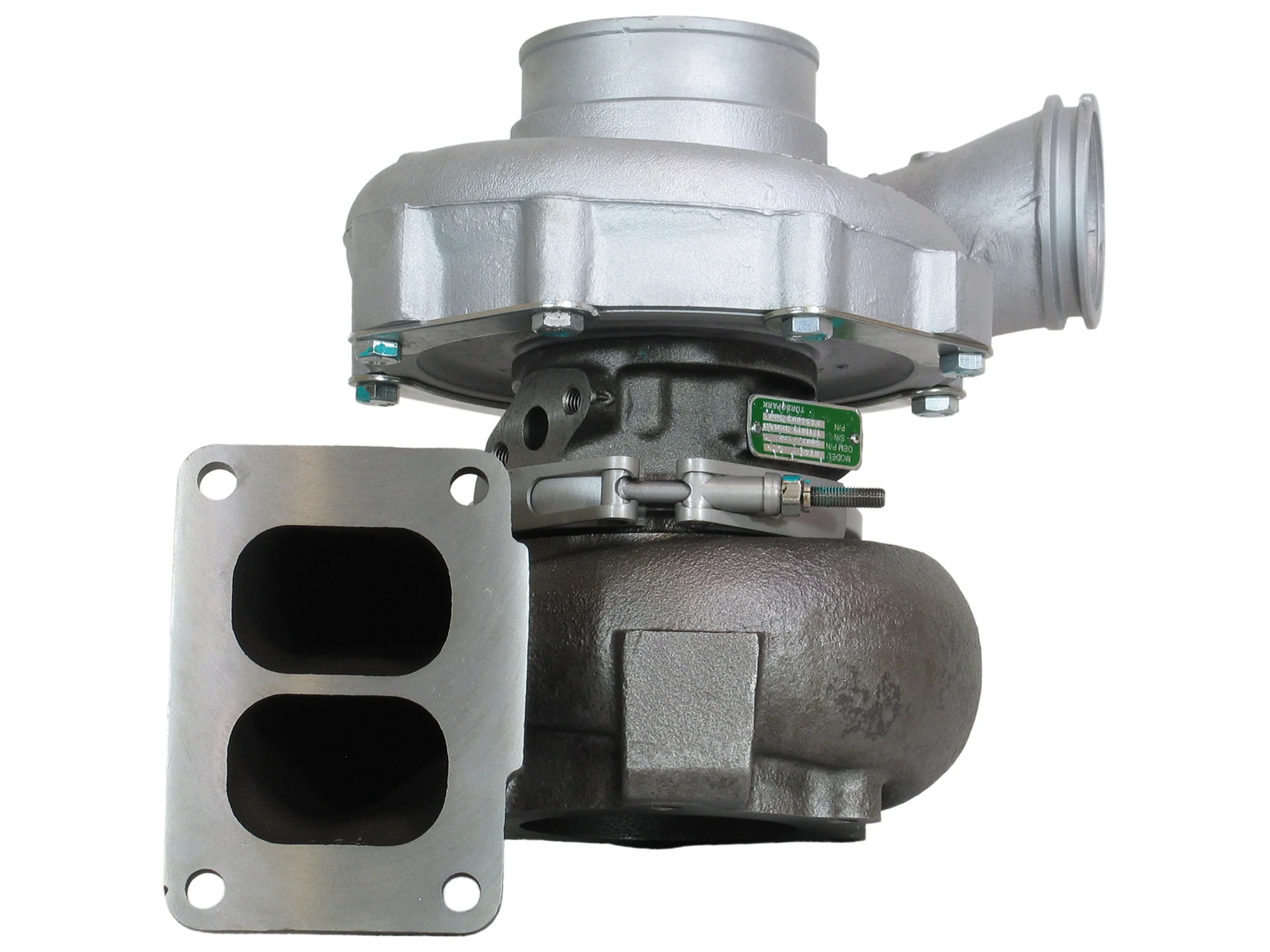

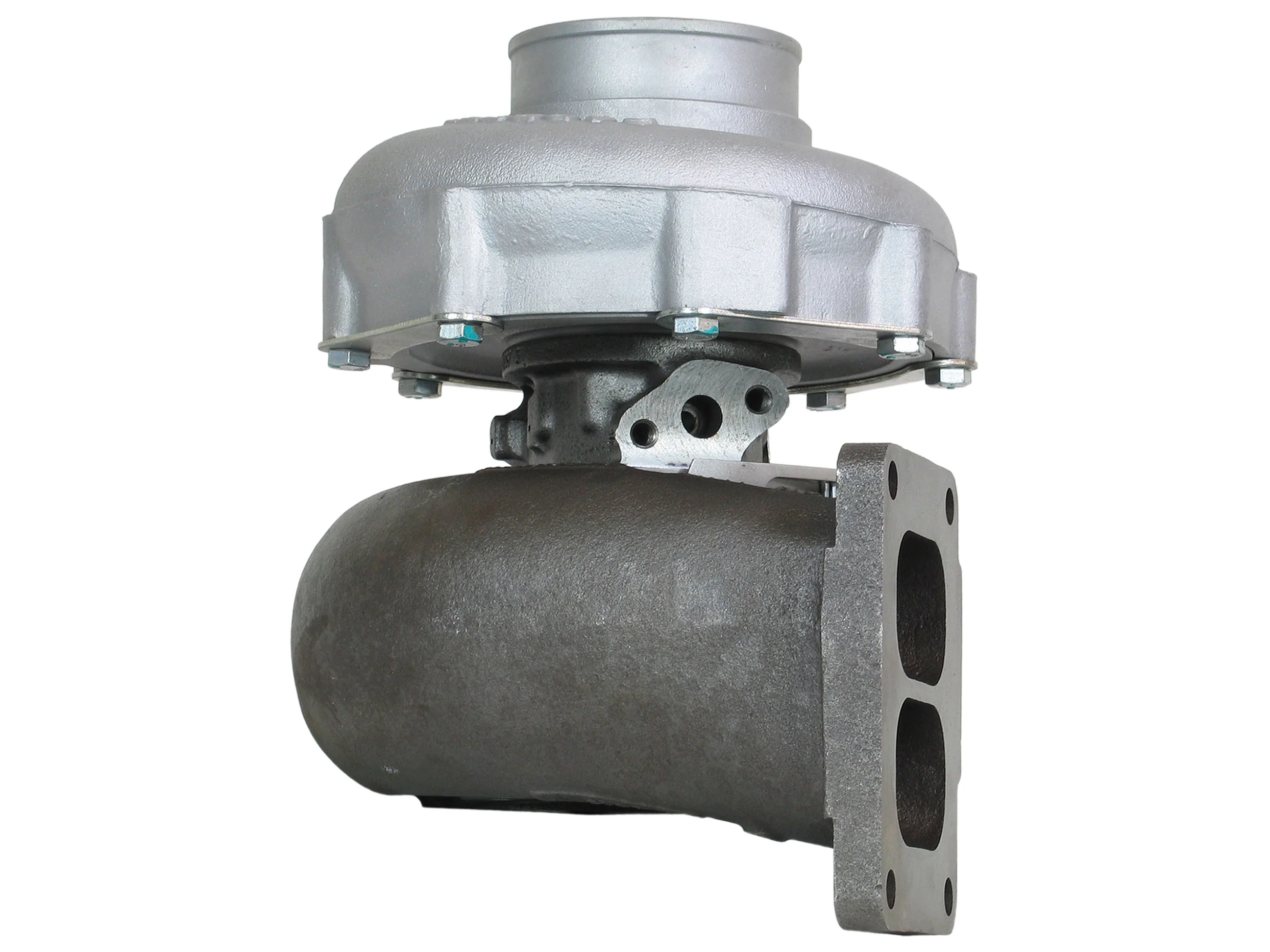

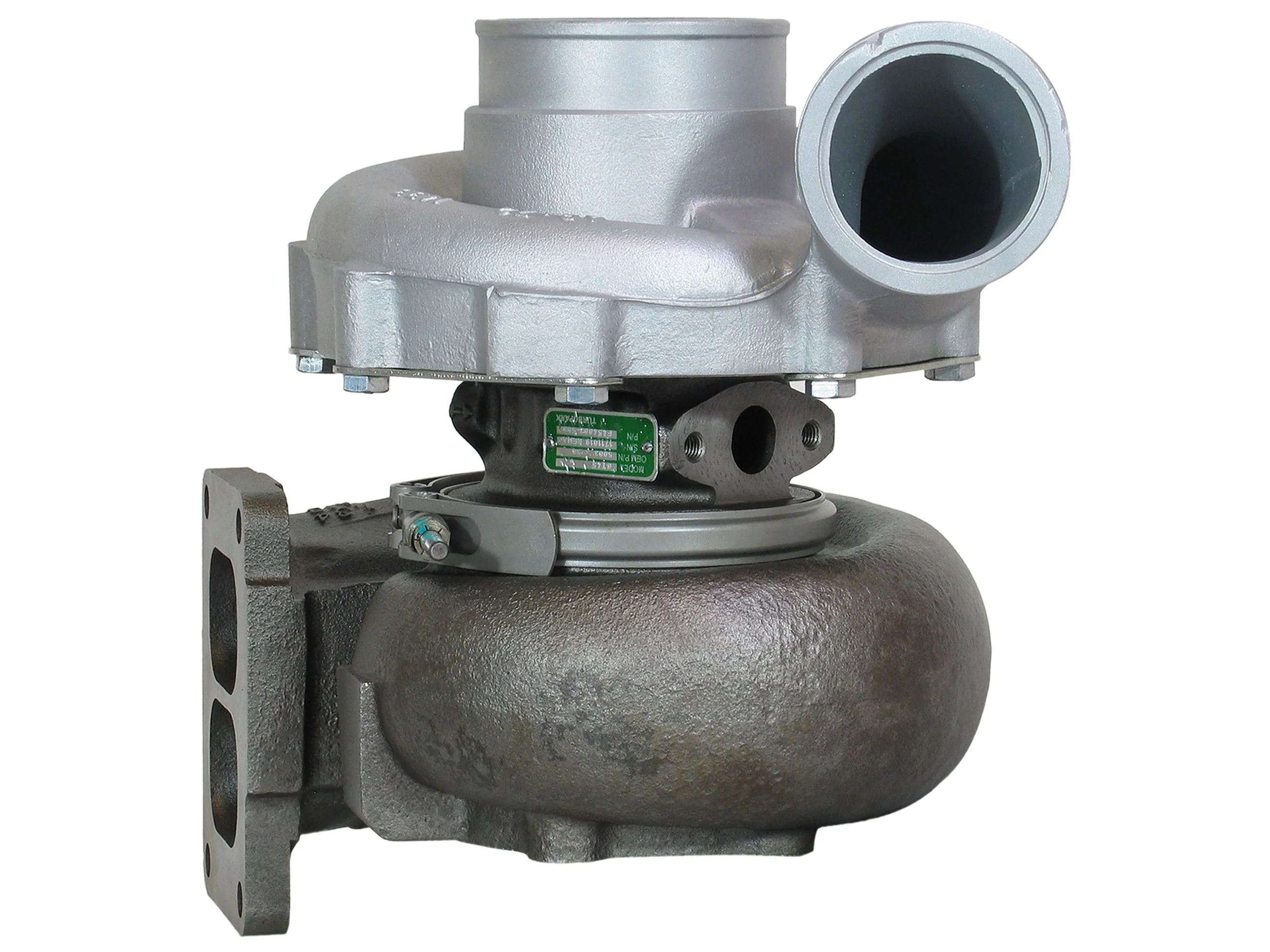

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 454003-5008
Interchangeable Number: 454003-0008, 454003-5008S, 3528026, 454003-0001, 454003-5001, 454003-5001S, 454003-0002, 454003-5002, 454003-5002S, 454003-0003, 454003-5003, 454003-5003S, 454003-0004, 454003-5004, 454003-5004S, 454003-0005, 454003-5005, 454003-5005S, 454003-0006, 454003-5006, 454003-5006S, 454003-0007, 454003-5007, 454003-5007S, 454003-0009, 454003-5009, 454003-5009S, 454003-0011, 454003-5011, 454003-5011S, 454003-0012, 454003-5012, 454003-5012S
OEM Number: 316480, 3528572, 3530555, 3530980, 3590005, 4854264, 500373230, 98429359, 98429361, 99439019, 99481116
Turbo Model: TA5126

Year: 1992-
Engine: 8210.42.300, 8210.42.380, 8210.42.400, 8210.42.101, 8210.22.800, 8215.42.985, 8210.42.3250, 821042K, 821042KE2, 821042L, 821042LE2
Engine Manufacturer: Iveco
Displacement: 13.8L, 13798 ccm, 6 Cylinders
Fuel: Diesel
Power: 370/420 HP
Speed: 1900/1950 RPM

Angle α (Compressor Housing): 123°
Angle β (Turbine Housing): 358°
Back Plate: 710508-0001
Bearing Housing: 452698-0009
CHRA: 710507-0001 (710507-5001S)
Compressor Cover: 443212-0017/1,34
Compressor Wheel: 441792-0029
Gasket (Oil Inlet): 210019
Gasket (Oil Outlet): 210060
Gasket (Turbine Inlet): 409038-0000/210239
Gasket Kit: 215025
Heat Shield: 410366-0004 (197394)
Repair Kit: 468132-0000 (468132-0008)
Stud Kit: 216014
Turbine Housing: 441184-0004 (311820)
Turbine Wheel: 441194-0008
Turbo Technology: Free Floating

NOTE: 454003-5009 and 454003-5011 are interchangeable by changing the orientation.

Application:
1992-02 Iveco EuroStar 180E42P, 190E42, 190E42P, 240E42FP, 240E42P, 400E42, 400E42P, 440E42, 440E42FP, 440E42P with 821042L Engine
1992-02 Iveco EuroStar 190E42FP, 240E42, 260E42P, 440E42 with 821042LE2 Engine
1992-99 Iveco EuroTech 180E42, 180E42P, 190E42 with 821042L Engine
1992-99 Iveco EuroTech 190E42FP, 440E42FP with 821042LE2 Engine
1992-99 Iveco EuroTech 190E42P, 240E42, 240E42FP, 240E42P, 260E42, 260E42P, 400E42, 400E42FP, 400E42P, 440E42, 440E42FP, 440E42P with 821042L Engine
1993-00 Iveco EuroTrakker 190E37, 260E37, 330E37, 340E37, 380E37, 400E37, 410E37, 440E37, 720E37 with 821042K Engine
1993-00 Iveco EuroTrakker 190E42, 260E42, 340E42, 380E42, 400E42, 410E42, 440E42, 720E42 with 821042L Engine
1993-00 Iveco EuroTrakker 340E42, 400E37, 400E42 with 821042LE2 Engine
1993-04 Iveco EuroTrakker 380E37 with 821042K Engine
1996-00 Iveco EuroTrakker 410E42 with 821042L Engine
1999- Iveco EuroTech 190E42 with 8210.42.300, 8210.42.380, 8210.42.400, 8210.42.101, 8210.22.800, 8215.42.985, 8210.42.3250 Engine
1999- Iveco Truck with 8210.42.300, 8210.42.400 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
